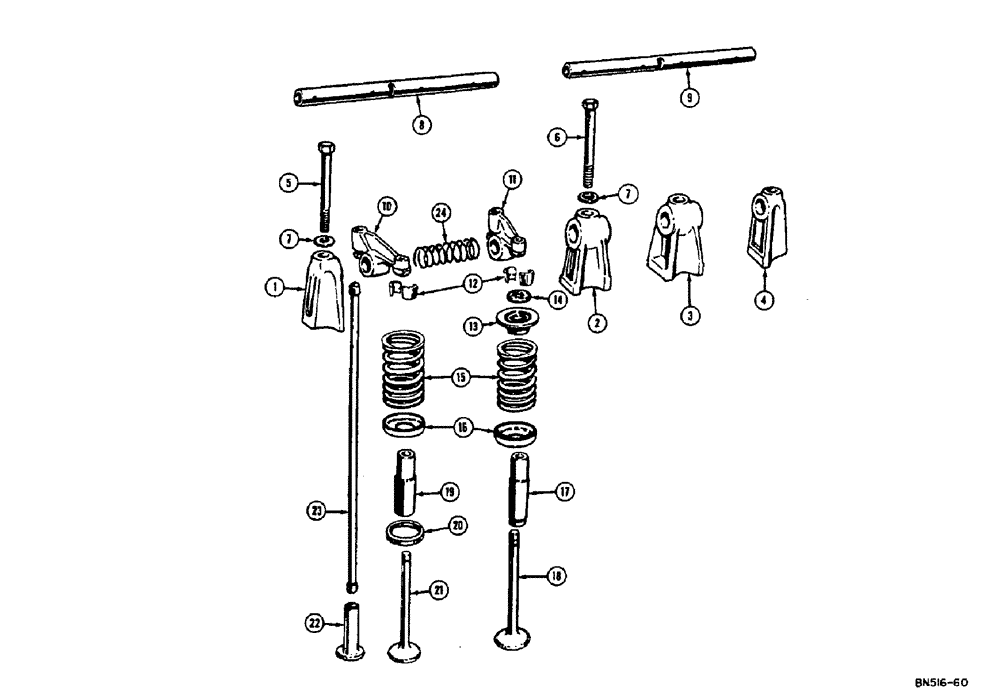

Запчасти Case 310E (021) - VALVES, PUSH RODS AND ROCKER ARMS - DIESEL (01) - ENGINE

1

G2100

BRACKET

- front rocker arm shaft

1шт.

2

G2101

BRACKET

- center rocker arm shaft

1шт.

3

G2102

BRACKET

- intermediate rocker arm shaft

2шт.

4

G2103

X

BRACKET - rear rocker arm shaft

1шт.

5

15-656

X

HHCS - 3/8" - 16 HC x 3-1/2"

4шт.

6

G49067

BOLT

- drilled center bracket (3/8" - 16 NC x 3-1/2")

1шт.

7

VT4504

WASHER

- plain (13/32" I.D. x 7/8" O.D. x 1/8" thick)

5шт.

8

G11743

SHAFT

- rocker arm front

1шт.

9

G11747

X

SHAFT - rocker arm rear

1шт.

10

G45770

ARM

- rocker R.H.

4шт.

11

G45771

ARM

- rocker L.H.

4шт.

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting (Not shown)

1шт.

G11927

RETAINER

SET - valve spring retainer and lock

2шт.

12

G11929

LOCK

SET - retainer

4шт.

VT3234

X

LOCK - retainer (Use G11929)

4шт.

13

G11717

RETAINER

- valve spring (Use G11927)

4шт.

14

G46851

SEAL

- rubber intake and exhaust valve stem

8шт.

15

VT3372

SPRING

- valve

8шт.

16

G49065

SEAT

- valve spring

8шт.

17

G11945

GUIDE

- intake valve stem (Set of 4)

1шт.

18

G11947

VALVE

- intake (Set of 4)

1шт.

19

G11946

GUIDE

- exhaust valve stem (Set of 4)

1шт.

20

G11986

KIT

INSERT - exhaust valve seat (Set of 4)

1шт.

21

G11948

KIT

VALVE - exhaust (Set of 4)

1шт.

22

G47077

TAPPET

- valve

8шт.

23

G47079

ROD

- push

8шт.

24

G48501

SPRING

- rocker arm shaft

4шт.
