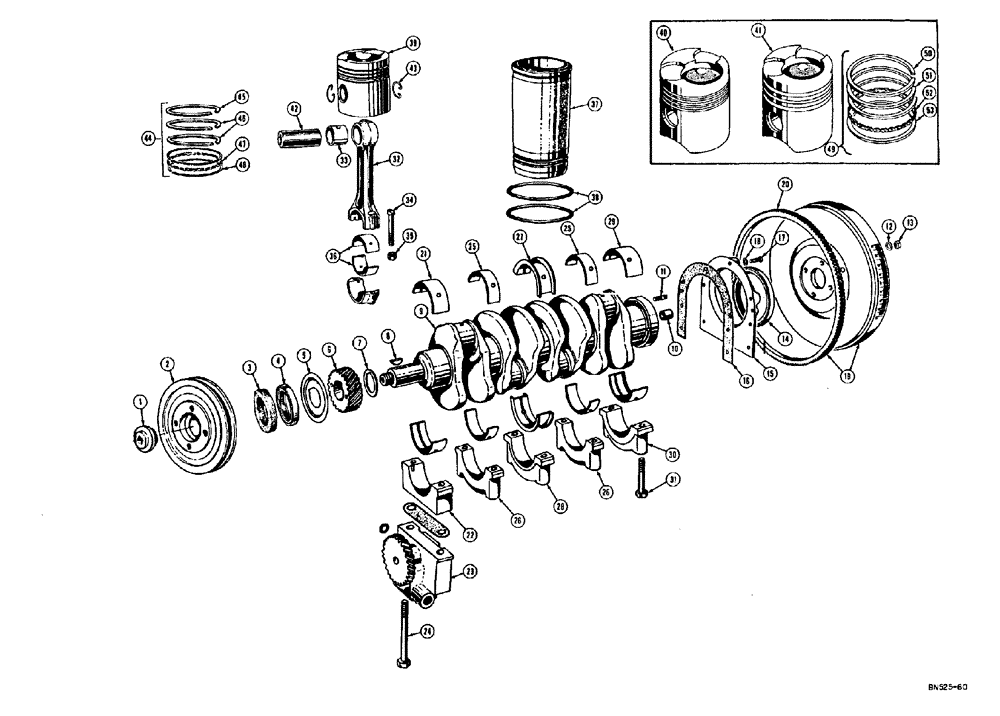

Запчасти Case 310E (020) - FLYWHEEL, CRANKSHAFT, AND PISTONS - DIESEL (01) - ENGINE

1

G11263

NUT

NUT - crankshaft pulley

1шт.

VT3366

X

COLLAR - starting jaw (Not shown)

1шт.

2

G11342

X

PULLEY - fan and generator drive

1шт.

3

VT3380

SPARE PART SEAL - dust, fan pulley

1шт.

4

VT3373

SPARE PART SEAL - oil, crankshaft (Front)

1шт.

5

VT3220

X

SLINGER - oil, crankshaft front bearing

1шт.

6

VT3225

X

GEAR - crankshaft (24T)

1шт.

7

VT3377

X

SPACER - thrust, crankshaft

1шт.

8

VT3397

SPARE PART KEY - pulley and gear to crankshaft (1/4" x 1-1/16") use 126-216

2шт.

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley and gear to crankshaft (1/4" x 1-1/16")

2шт.

9

G11889

CRANKSHAFT

CRANKSHAFT - engine, Includes: Ref. 10

1шт.

10

VT3370

X

BUSHING BUSHING - pilot, crankshaft

1шт.

11

VT4513

X

STUD -, Serial Range: flywheel-crankshaft

4шт.

12

92-7

LOCK WASHER,7/16"

LOCK WASHER, , med. sect. 7/16"

4шт.

13

25-117

NUT,7/16"-20, G5

NUT - hex, (7/16" - 20 NF)

4шт.

14

G13811

RUBBER SEAL

SEAL- oil, crankshaft, rear (Single lip) when stock is exhausted, order G13824

1шт.

G13824

RUBBER SEAL

SEAL - oil, crankshaft, rear

1шт.

15

G2017

RETAINER

RETAINER - rear oil seal, crankshaft

1шт.

16

G46802

GASKET

GASKET - retainer, rear oil seal

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

3шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

19

G11904

FLYWHEEL - flywheel - 11" clutch (Used up to engine serial number 2000728) includes VT3093 and G11710 (See G37091), Includes: Ref.

1шт.

G37091

SPARE PART FLYWHEEL - 10" clutch (Used on engine serial number 2000728 and after) see G11904, Includes: Ref. 20

1шт.

VT3093

X

BEARING - pilot, flywheel (Not shown)

1шт.

20

G11710

GEAR

GEAR - ring, flywheel (135T)

1шт.

21

G11940

X

LINER - crankshaft front bearing, top and bottom half (Standard)

1шт.

G37005

KIT

LINER - crankshaft front bearing, top and bottom half (.002" undersize)

1шт.

G37006

X

LINER - crankshaft front bearing, top and bottom half (.010" undersize)

1шт.

G37007

KIT

LINER - crankshaft front bearing, top and bottom half (.020" undersize)

1шт.

G37008

X

LINER - crankshaft front bearing, top and bottom half (.030" undersize)

1шт.

22

G2126

CAP

CAP - bearing, crankshaft front

1шт.

23

G11836

SPARE PART PUMP - oil, engine (See figure 8) use G37070

1шт.

G37070

X

PUMP - oil, engine (See figure 8)

1шт.

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

24

G49077

BOLT

BOLT - place, oil pump and front bearing cap (1/2" x 5-1/8")

2шт.

25

G11942

JOURNAL

LINER - crankshaft intermediate bearing, top and bottom half (Standard)

2шт.

G37013

KIT

LINER - crankshaft intermediate bearing, top and bottom half (.002" undersize)

2шт.

G37014

X

LINER - crankshaft intermediate bearing, top and bottom half (.010" undersize)

2шт.

G37015

KIT

LINER - crankshaft intermediate bearing, top and bottom half (.020" undersize)

2шт.

G37016

KIT

LINER - crankshaft intermediate bearing, top and bottom half (.030" undersize)

2шт.

26

G2128

CAP

CAP - bearing, crankshaft intermediate

2шт.

27

G11941

SLEEVE CYLINDER

LINER - crankshaft center bearing, top and bottom half (Standard)

1шт.

G37009

KIT

LINER - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

G37010

X

LINER - crankshaft center bearing, top and bottom half (.010" undersize)

1шт.

G37011

KIT

LINER - crankshaft center bearing, top and bottom half (.020" undersize)

1шт.

G37012

KIT

LINER - crankshaft center bearing, top and bottom half (.030" undersize)

1шт.

28

G2127

CAP

CAP - bearing, crankshaft center

1шт.

29

G11943

X

LINER - crankshaft rear bearing, top and bottom half (Standard)

1шт.

G37017

KIT

LINER - crankshaft rear bearing, top and bottom half (.002" undersize)

1шт.

G37018

X

LINER - crankshaft rear bearing, top and bottom half (.010" undersize)

1шт.

G37019

X

LINER - crankshaft rear bearing, top and bottom half (.020" undersize)

1шт.

G37020

KIT

LINER - crankshaft rear bearing, top and bottom half (.030" undersize)

1шт.

30

G2129

CAP

CAP - bearing, crankshaft rear

1шт.

31

G49078

SPARE PART BOLT - place, bearing cap (1/2" x 4-1/2")

8шт.

32

G11847

ROD

ROD - connecting, Includes: Ref. 33 - 35

4шт.

33

G49659

BEARING,30.94mm ID x 33.47mm OD x 31.75mm W

BUSHING - wrist pin (Use G11953)

1шт.

34

G49064

STEP BOLT

BOLT - connecting rod cap

2шт.

35

G49060

NUT

NUT - connecting rod cap bolt (3/8" - 24 NF)

2шт.

G11953

BUSHING

SET - bushing, wrist pin, (Set of 4)

1шт.

36

G11944

BUSHING

LINER - connecting rod bearing, top and bottom half (Standard), Includes: Ref. 37 - 53

4шт.

G37021

X

LINER - connecting rod bearing, top and bottom half (.002" undersize), Includes: Ref. 37 - 53

4шт.

G37022

X

LINER - connecting rod bearing, top and bottom half (.010" undersize), Includes: Ref. 37 - 53

4шт.

G37023

X

LINER - connecting rod bearing, top and bottom half (.020" undersize), Includes: Ref. 37 - 53

4шт.

G37024

X

LINER - connecting rod bearing, top and bottom half (.030" undersize), Includes: Ref. 37 - 53

4шт.

G37042

SPARE PART SET - sleeves and pistons, mayched set of 4 (Includes pistons, sleeves, "O" Rings, wrist pins, and retaining rings) use G37064

1шт.

37

G2110

SLEEVE

SLEEVE - cylinder (3-13/16" bore)

4шт.

38

G46888

O-RING,3.737" ID x 3.943" OD

SEAL - "O" ring, cylinder sleeve

8шт.

39

G2065

PISTON - 3-13/16" bore, 4 groove, (Used before engine serial number 613T06072) use G37064 set of 4 pistons and sleeves if all G2065 pistons are being replaced (See G2137)

4шт.

When replacing individual piston in engines before engine serial number 613T06072 use G2065. In engines serial number 613T06072 and after use G37063.

1шт.

40

G2135

PISTON - 3-3/13" bore, 4 groove (Used on engine serial number 613T06072 and after) use G37063

4шт.

When replacing individual piston in engines before engine serial number 613T06072 use G2065. In engines serial number 613T06072 and after use G37063.

1шт.

41

G2137

X

PISTON - 3-3/13" bore, 3 groove (Used on engine serial number 613T06072 and after) replaces G2065 piston in engines prior to engine serial number 613T06072 when G37064 set of 4 pistons, rings, and sleeves is installed

4шт.

G11954

X

SET - wrist pin, Includes: Ref. 42

1шт.

42

G49607

X

PIN - wrist (Use G11954)

4шт.

43

G46702

RING, LOCKING

RING, LOCK RING - retaining, wrist pin

4шт.

44

G11938

SET OF RINGS

SET - piston ring, chrome, (4 groove piston) see G37075, Includes: Ref. 45 - 48

8шт.

45

G4813

SPARE PART RING - top, 4 groove piston

1шт.

46

G4812

SPARE PART RING - compression, 4 groove piston

8шт.

47

G47133

SPACER - oil ring rail, 4 groove piston

4шт.

48

G47134

SPARE PART RAIL - oil ring, 4 groove piston

8шт.

49

G37075

RING

SET - piston ring, chrome (# groove piston) see G11938, Includes: Ref. 50 - 53

1шт.

50

G4819

RING

RING - top, 3 groove piston

4шт.

51

G4817

RING

RING - compression, 3 groove piston

4шт.

52

G47174

SPRING

SPACER - oil ring rail, 3 groove piston

4шт.

53

G47155

RAIL

RAIL - oil ring, 3 groove piston

8шт.

G37064

SPARE PART SET - sleeves and pistons, matched set of 4 (Includes 3 groove pistons, sleeves, "O" rings, piston rings, wrist pins, and retaining rings) see G37042 and G37063

1шт.

G37063

X

SET - sleeve and piston (Includes 1 - 3 groove piston with rings and matched sleeve) use for individual piston replacement in engines serial number 613T06072 and after only

4шт.

53

G47155

RAIL

RAIL - oil ring, 3 groove piston with rings and matched sleeve) use for individual piston replacement in engines serial number 613T06072 and after only

8шт.
