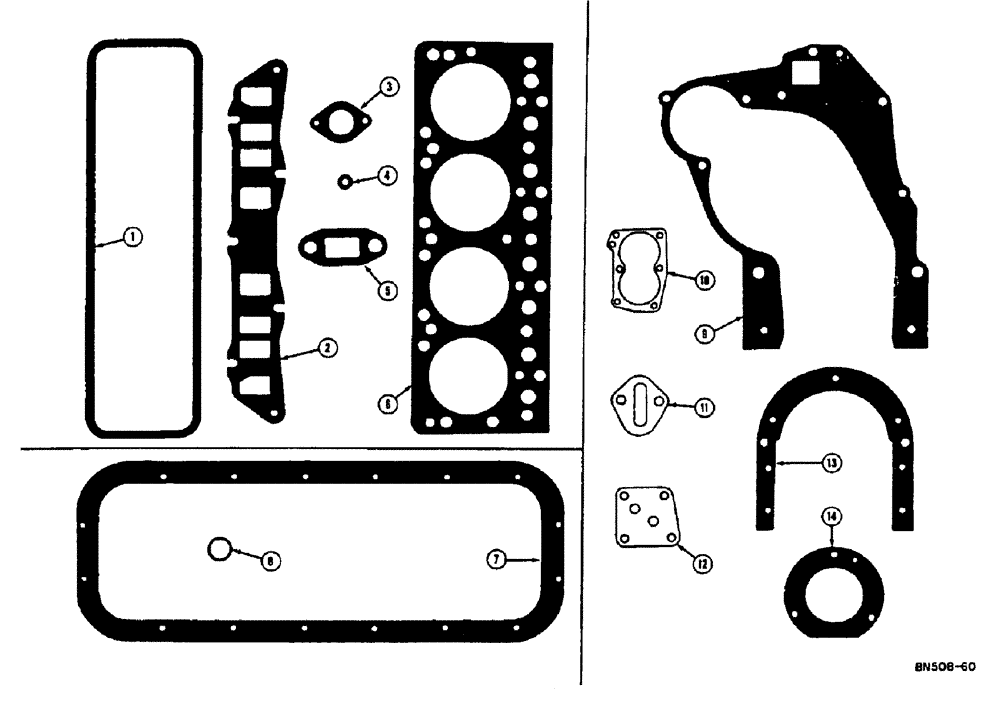

Запчасти Case 310E (009) - SERVICE GASKET SETS - GAS (01) - ENGINE

G11917

KIT

SET - gasket, valve grind, Includes: Ref. 1 - 6

1шт.

1

VT3246

GASKET - valve cover

1шт.

2

VT3394

X

GASKET - exhaust manifold

1шт.

3

0562AB

GASKET -, Serial Range: carburetor-manifold

1шт.

4

G46851

SEAL

GASKET - valve stem

4шт.

5

VT3228

X

GASKET - water outlet elbow

1шт.

6

G10672

CYLINDER HEAD GASKET

- cylinder head

1шт.

G11010

X

SET - gasket oil pan, Includes: Ref. 7 and 8

1шт.

7

G10020

X

GASKET - oil pan

1шт.

8

VT4520

X

GASKET - oil pan drain plug (7/8" NP plug only)

1шт.

G11916

X

SET - gasket engine block, Includes: Ref. 9 - 14

1шт.

9

VT3248

X

GASKET - timing gear cover

1шт.

10

G46852

GASKET

- oil pump, Serial Range: body-cover

1шт.

11

G10050

GASKET - fuel pump to block (Use G46902)

1шт.

11

G46902

GASKET

- fuel pump to block (See G10050)

1шт.

12

G46854

GASKET

- oil filter, Serial Range: bracket-block

1шт.

13

G46802

GASKET

- rear oil seal retainer

1шт.

14

G46875

GASKET

- water pump, Serial Range: body-block

1шт.
