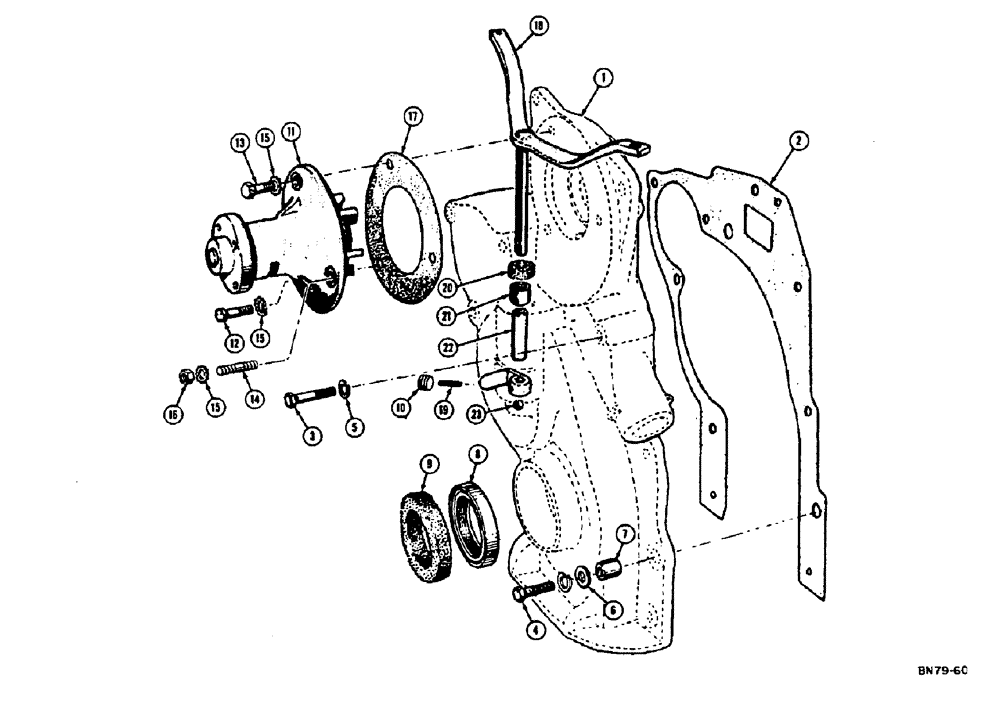

Запчасти Case 310E (007) - TIMING GEAR COVER - GAS (01) - ENGINE

1

VT334

SPARE PART COVER - tuning gear

1шт.

2

VT3248

X

GASKET - timing gear cover

1шт.

3

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Timing gear cover to block Hex, 3/8"-16 x 2", G5

1шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, , Timing gear cover to block Hex, 3/8"-16 x 2 1/4", G5

1шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - timing gear cover to block (3/8" - 16 NC x 2-3/4")

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Timing gear cover to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - timing gear cover to block (3/8" - 16 NC x 1-1/2")

2шт.

5

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sec. 3/8"

8шт.

6

95-6

WASHER,3/8"

WASHER - standard wrot ( I D. x 7/16" O.D. x 1" thick) 3/8"

2шт.

7

VT4535

X

RING - dowel timing gear, Serial Range: cover-block

2шт.

8

VT3373

SPARE PART SEAL oil - crankshaft front

1шт.

9

VT3380

SPARE PART SEAL - dust drive pulley

1шт.

10

VT3352

X

PLUG - pipe timing gear cover (1/8" slotted head)

1шт.

11

VTA908

X

PUMP - water (Use G11956)

1шт.

G11956

WATER PUMP

PUMP - (See above for breakdown)

1шт.

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

12

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - water pump to timing gear cover (3/8" - 16 NC x 2-3/4")

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Water pump to timing gear cover (3/8" - 16 NC x 3/4") 2 used up to engine S/N 2002675 Hex, 3/8"-16 x 3/4", G5, Full Thd

1-2шт.

14

VT4512

X

STUD - lower L.H. side of water pump to timing gear cover (3/8" - 16 NC x 1") used on engine seri

1шт.

15

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER - Shakeproof lock external tooth (3/8")

3шт.

16

25-106

NUT,3/8"-16, G5

NUT - hex. VT4512 stud (3/8" - 16 NC) used on engine serial #2002675 and after

1шт.

17

G46875

GASKET

GASKET - water pump to timing gear cover

1шт.

18

VTA850

X

LEVER - governor (Includes arm), Includes: Ref. 19

1шт.

19

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

20

VT3259

X

SEAL - dust governor shaft

1шт.

21

VT3351

X

BEARING - governor shaft

1шт.

22

VT3288

X

SPACER - thrust governor shaft

1шт.

23

A7456

X

BALL - thrust governor shaft (3/16" dia.) use 211-5

1шт.

211-5

BALL,3/16" Dia

BALL - thrust governor shaft (.) 3/16" Dia

1шт.
