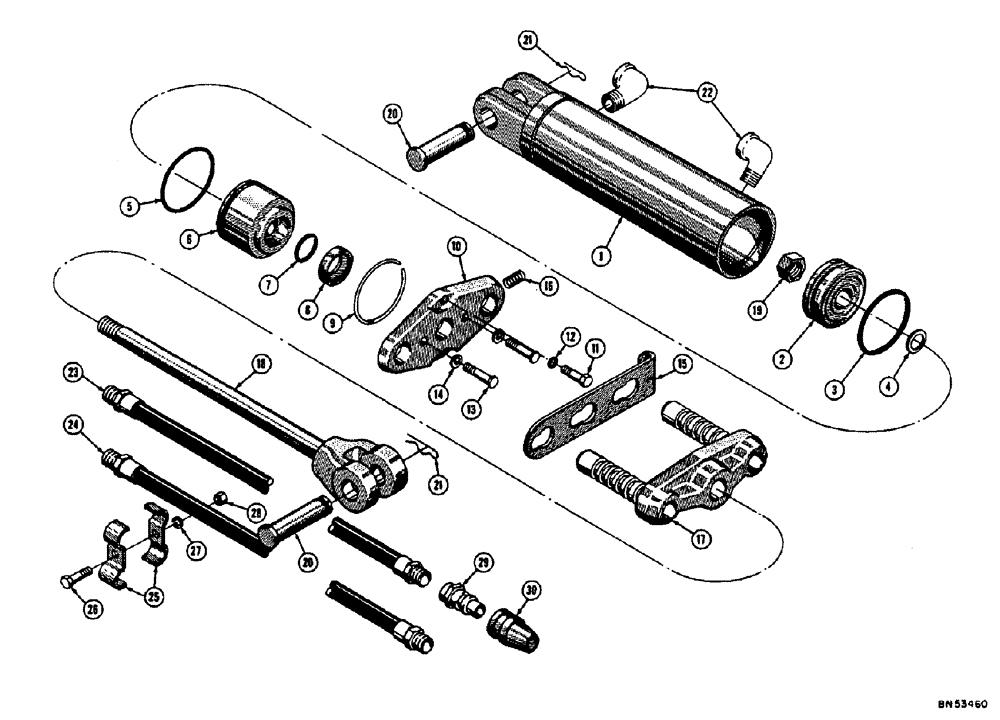

Запчасти Case 310E (116) - B3785AA REMOTE HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
B3785AA
CYLINDER - remote, hydraulic (#-1/4" x 8"), Includes: Ref. 1 - 19
1шт.
1
4246AA
TUBE AND CAP - cylinder
1шт.
2
6243A
PISTON - cylinder
1шт.
3
O8342AB
X
SEAL - "O" ring piston
1шт.
Included in A24414 cylinder packing kit
1шт.
4
O8345AB
X
GASKET - piston rod
1шт.
Included in A24414 cylinder packing kit
1шт.
5
O8347AB
X
SEAL - "O" ring head
1шт.
Included in A24414 cylinder packing kit
1шт.
6
6187A
HEAD - cylinder inner
1шт.
7
O8346AB
X
SEAL - "O" ring piston rod
1шт.
Included in A24414 cylinder packing kit
1шт.
8
O3869AB
X
SEAL - wiper piston rod
1шт.
Included in A24414 cylinder packing kit
1шт.
9
O9303AB
X
SNAP RING - cylinder head
1шт.
10
O8354AB
GUIDE - limit stop pin
1шт.
11
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
HHCS - 5/16 - 18 NC x 1-1/4"
2шт.
12
92-5
LOCK WASHER,5/16"
med sect. 5/16"
2шт.
13
O8601AB
X
SCREW - stop latch
2шт.
14
193-29
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
2шт.
15
3859AA
X
LATCH - limit stop
1шт.
16
O8602AB
X
SPRING - limit stop latch
1шт.
17
3756AA
STOP AND PIN - limit
1шт.
18
4417AA
ROD - piston
1шт.
19
131-369
LOCK NUT,7/8"-14, GA
NUT - lock (7/8" - 14 NF)
1шт.
Included in A24414 cylinder packing kit
1шт.
20
08361AB
PIN - mounting cylinder
2шт.
21
VC1419
X
PIN - hair pin cotter
2шт.
22
221-414
FITTING,90 Degree, 1/2"-14, NPT
ELBOW - street 90° (1/2" NPT)
2шт.
23
A20816
HOSE
- coupling to remote cylinder front (106" long)
1шт.
24
A20817
HOSE
- coupling to remote cylinder rear (118" long)
1шт.
25
O8681AB
X
CLAMP - hydraulic hose
2шт.
26
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
1шт.
27
92-5
LOCK WASHER,5/16"
med sect. 5/16"
1шт.
28
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
1шт.
29
4025AA
X
COUPLING - Pull Behind male (See figure 115 for breakdown)
2шт.
30
4026AA
X
COUPLING - Pull Behind female (See figure 115 for breakdown)
2шт.
Выбрано товаров: 37
