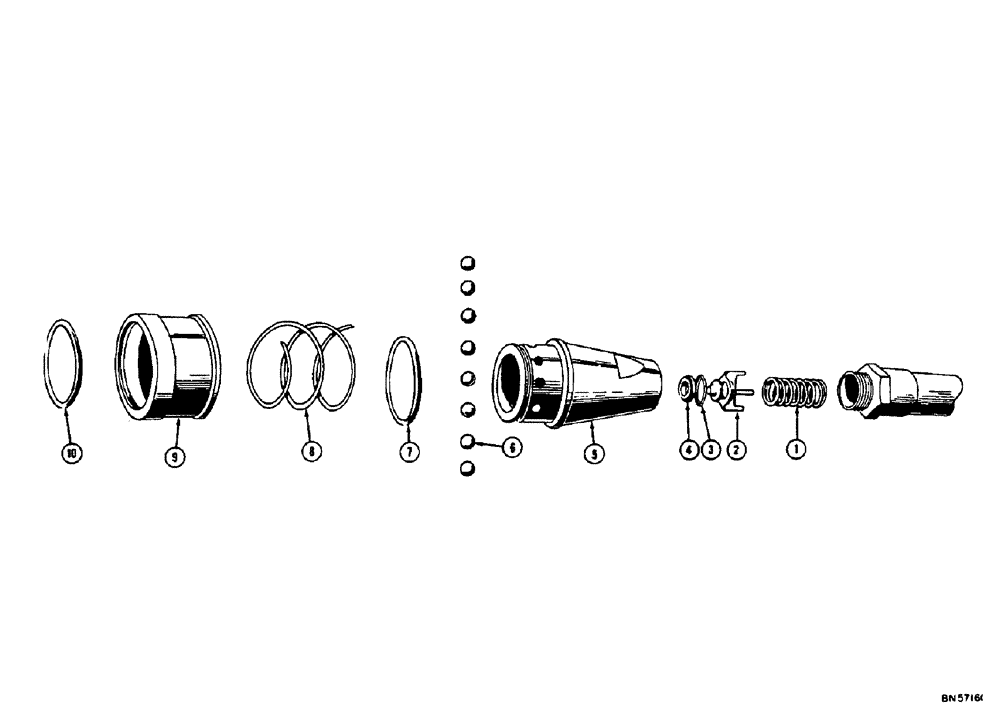

Запчасти Case 310E (114) - 4026AA PULL BEHIND COUPLING - FEMALE (07) - HYDRAULIC SYSTEM

4026AA

X

COUPLING - pull behind, female (see figure 116 for service kit), Includes: Ref. 1 - 10

2шт.

1

A11324

SPRING

- coupling piston

1шт.

2

6119A

X

PISTON - socket

1шт.

3

A11325

X

RETAINER - seal

1шт.

4

O8372AB

X

SEAL - piston

1шт.

5

O8371AB

BODY - female coupling

1шт.

6

211-7

BALL,1/4" Dia

- steel, socket locking 1/4" Dia

8шт.

7

O8377AB

X

SEAL - "O" ring, socket body

1шт.

8

O8379AB

X

SPRING - ball retaining sleeve

1шт.

9

O8378AB

X

SLEEVE - ball retaining

1шт.

10

O8380AB

X

SNAP RING - socket rubber

1шт.
