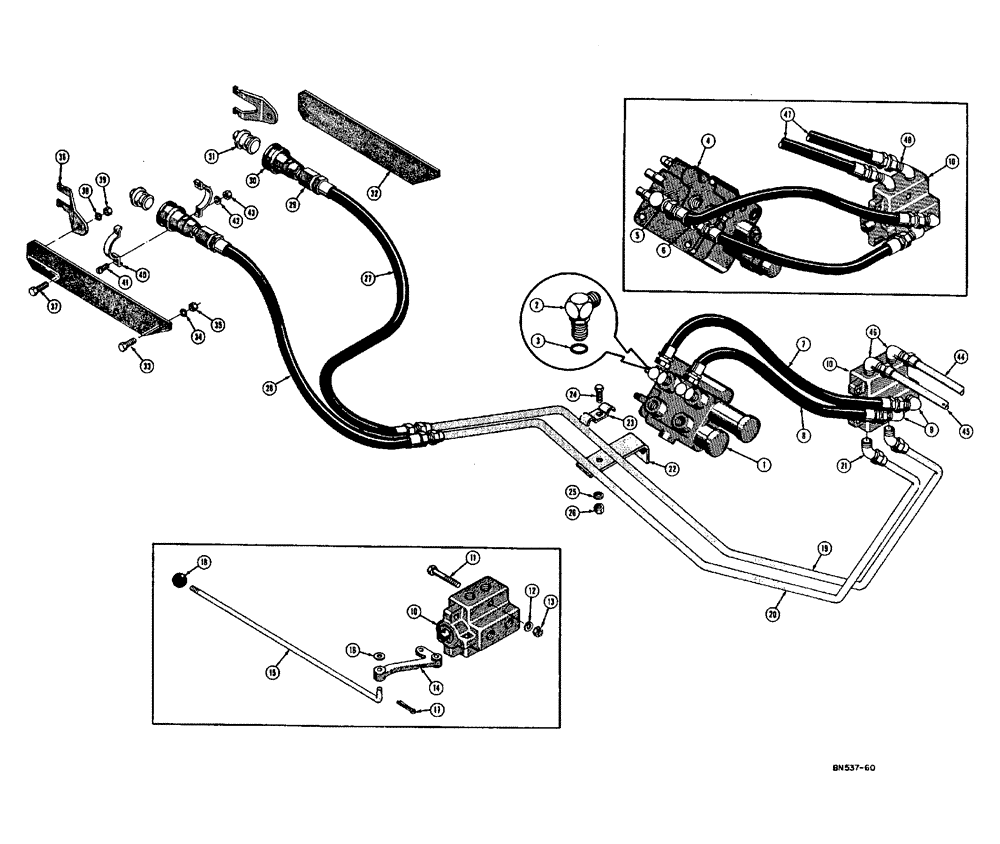

Запчасти Case 310E (113) - PULL BEHING HYDRAULICS (WITH LOADER OR DOZER) (07) - HYDRAULIC SYSTEM

1

D25450

VALVE - control (See figure 74 for breakdown) Dozer models only

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male 90° (L.H. valve ports) (5/8" JIC x 5/8" JIC) Dozer models only, Incl. Ref. 3

2шт.

3

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring 218-5107 elbow

1шт.

4

D26491

VALVE - control (See figure 75 for breakdown) Loader models only (Used up to Loader serial #4068995) when stock is exhausted order D29615

1шт.

D29615

VALVE - control (See figure 76 for breakdown) Loader models only (Used on Loader serial #4068995 and after) see D26491

1шт.

5

D23143

FITTING

ELBOW - male 90° (Extra long) R.H. rear valve port (5/8" JIC x 5/8'" JIC) Loader models only

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring D23143 elbow (Not shown)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male 90° (R.H. front valve port) (5/8" JIC x 5/8" JIC) Loader models only

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring 218-5107 elbow (Not shown)

1шт.

7

D28115

HOSE

- rear control valve port to L.H front diversion valve port (1/2" I.D. x 7/8" O.D. x 27-1/2")

1шт.

8

D28117

HOSE

- front control valve port to R H. front diversion valve port (1/2" I D x 7/8" O.D. x 23-1/2")

1шт.

9

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male 45° (3/4" NPT x 5/8" JIC)

2шт.

10

D26726

VALVE

- diversion (See figure 71 for breakdown)

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

12

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

14

D27656

HANDLE - control diversion valve

1шт.

15

D26709

ROD

- control, diversion valve handle

1шт.

16

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1-1/4" O.D. x 5/64" thick)

1шт.

17

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

70213

KNOB

- control rod

1шт.

19

D26712

TUBE - L.H. bottom diversion valve port to L H. pull behind coupling

1шт.

20

D26710

TUBE - R.H. bottom diversion valve port to R.H pull behind coupling

1шт.

21

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45° (3/4" NPT x 5/8" JIC)

2шт.

22

D26714

BRACKET - tube support

1шт.

23

17179

CLAMP - tube

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

1шт.

27

D28119

HOSE - tube to L.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 26-1/2")

1шт.

28

D26723

HOSE - tube to R.H. pull behind coupling (1/2" I.D. x 13/16" O.D. x 22-1/8") use D26479

1шт.

D26479

HOSE - tube to R.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 22" ) see D26723

1шт.

29

O9466AB

X

ADAPTER - hose to pull behind coupling (1/2" NPT x 5/8" JIC)

2шт.

30

4026AA

X

COUPLING - pull behind female (See figure 114 for breakdown)

2шт.

4025AA

X

COUPLING - pull behind male (See figure 114 for breakdown) Not shown

2шт.

31

O8652AB

X

PLUG - dust (Use A22768)

2шт.

A22768

PLUG

- dust (See O8652AB)

2шт.

32

38505

BRACKET - mounting

2шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

34

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

4шт.

36

O8388AB

X

BRACKET - mounting pull behind coupling

2шт.

37

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

38

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

39

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

2шт.

40

O8606AB

X

CLAMP - pull behind coupling

4шт.

41

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

RHMS - #8 - 32 NC x 5/8"

4шт.

42

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

43

129-6

NUT,#8-32

4шт.

44

D26729

TUBE - L.H. top diversion valve port to Dozer manifold Dozer models only

1шт.

45

D26727

TUBE - R.H. top diversion valve port to Dozer manifold Dozer models only

1шт.

46

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male 90° (3/4" NPT x 5/8" JIC) use D29569

2шт.

D29569

X

ELBOW - male 90° (3/4" NPT x 5/8" JIC) see 218-494

2шт.

47

D27478

HOSE ASSY.

HOSE - top diversion valve ports to loader lift cylinder manifold tubes (1/2" I.D. x 7/8 O.D. x 22") Loader models only

2шт.

48

218-44

ELBOW - male 90° (3/4" NPT x 5/8" JIC) use D29569

2шт.

D29569

X

ELBOW - male 90° (3/4" NPT x 5/8" JIC) see 218-494

2шт.
