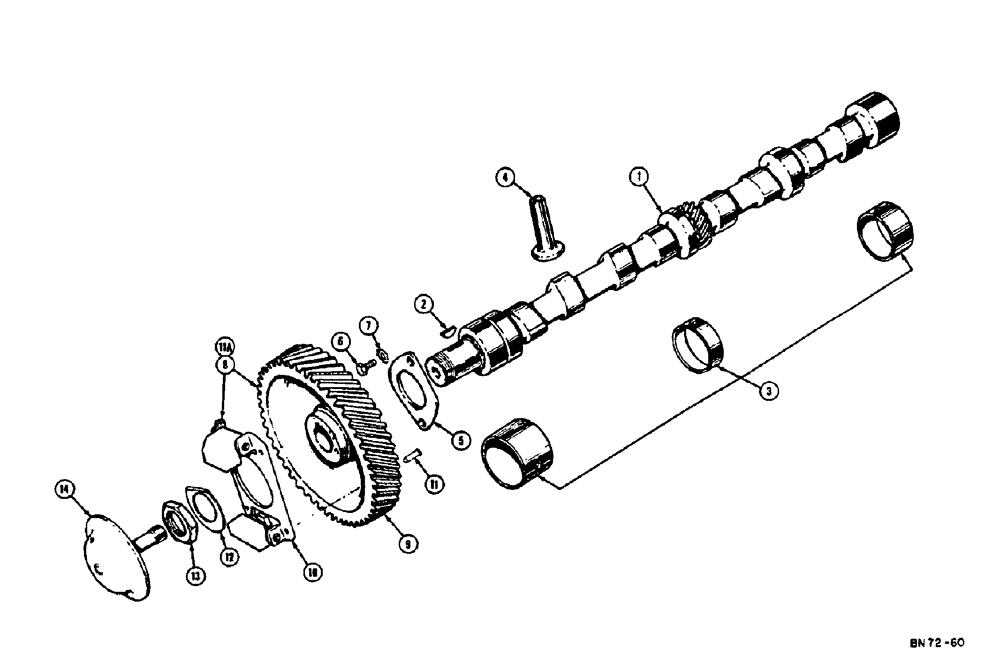

Запчасти Case 310E (005) - CAMSHAFT - GAS (01) - ENGINE

1

G2055

CAMSHAFT

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

3

VTA2621

X

BUSHING - camshaft (Set of 3)

1шт.

4

VT3236

X

TAPPET - valve

8шт.

5

VT3365

X

PLATE - thrust camshaft

1шт.

6

VT4500

X

SCREW - thrust plate

2шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

8

VTA857

X

GEAR AND WEIGHT - camshaft (Used up to engine serial #328TO6229) use G37066, Includes: Ref. 9 - 11

1шт.

9

VT540

GEAR - camshaft timing (48T) (VTA857 gear only)

1шт.

10

VTA856

WEIGHT - governor, timing gear (VTA857 gear only)

1шт.

11

45-38

RIVET,But Hd, 3/16" x 1/2"

- round head (3/16" x 1/2") (VTA857 gear only)

4шт.

11a

G37O66

GEAR - camshaft timing complete with governor weight (Used on engine serial #328TO6229 and after) see VTA857

1шт.

12

VT4517

X

LOCK - camshaft nut

1шт.

13

VT4536

X

NUT - camshaft

1шт.

14

VTA855

X

SHAFT - governor

1шт.
