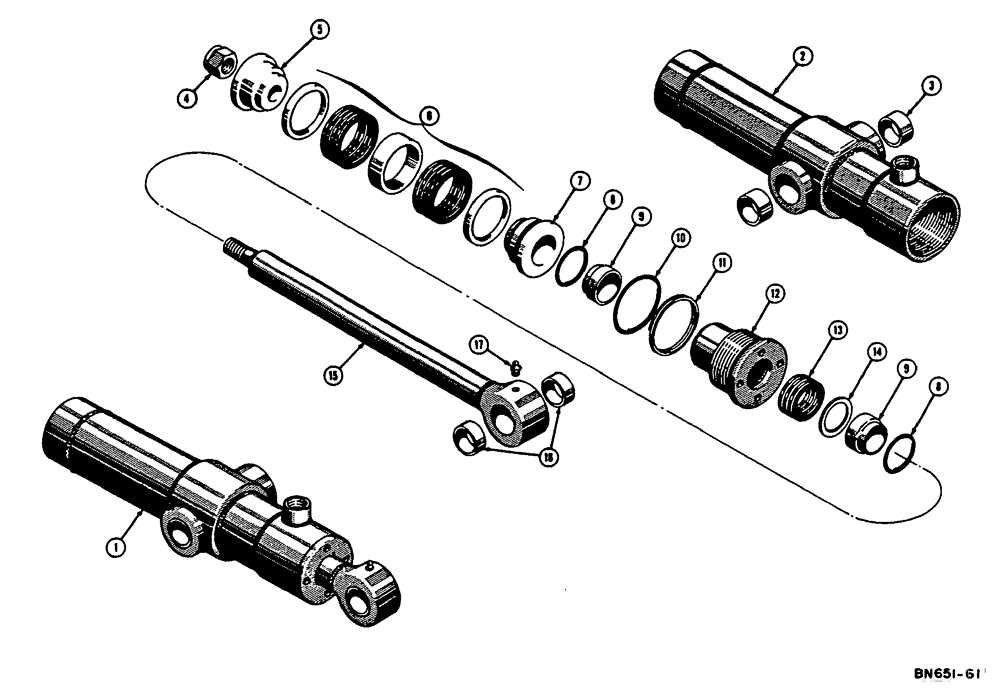

Запчасти Case 310E (108) - D28335 HYDRAULIC SCARIFIER CYLINDER (07) - HYDRAULIC SYSTEM

1

D28335

CYLINDER - Scarifier hydraulic (3" I.D. x 10-1/2" stroke), Includes: Ref. 2 - 17

1шт.

2

D28355

TUBE - cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube trunnion

2шт.

4

D23739

LOCK NUT

NUT - lock (3/4" - 16 NP)

1шт.

Included in D30129 cylinder packing kit

1шт.

5

D28366

PISTON

- half piston rod nut end

1шт.

6

D28374

PACKAGE,SERVICE

PACKING - piston kit (Includes chevrons and spacers)

1шт.

Included in D30129 cylinder packing kit

1шт.

7

D28365

PISTON

- half piston rod eye end

1шт.

8

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring wiper

2шт.

Included in D30129 cylinder packing kit

1шт.

9

D27706

WIPER SEAL

WIPER - piston rod

2шт.

Included in D30129 cylinder packing kit

1шт.

10

O8347AB

X

SEAL - "O" ring gland

1шт.

Included in D30129 cylinder packing kit

1шт.

11

D28049

RING

- backup gland seal

1шт.

Included in D30129 cylinder packing kit

1шт.

12

D28048

GLAND

- packing

1шт.

13

D28494

SEAL

- piston rod

1шт.

Included in D30129 cylinder packing kit

1шт.

14

D28498

RING

- backup piston rod seal

1шт.

Included in D30129 cylinder packing kit

1шт.

15

D28536

ROD - piston (1-1/2" dia.), Includes: Ref. 16

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

PITTING - grease straight (1/8" NPT)

1шт.
