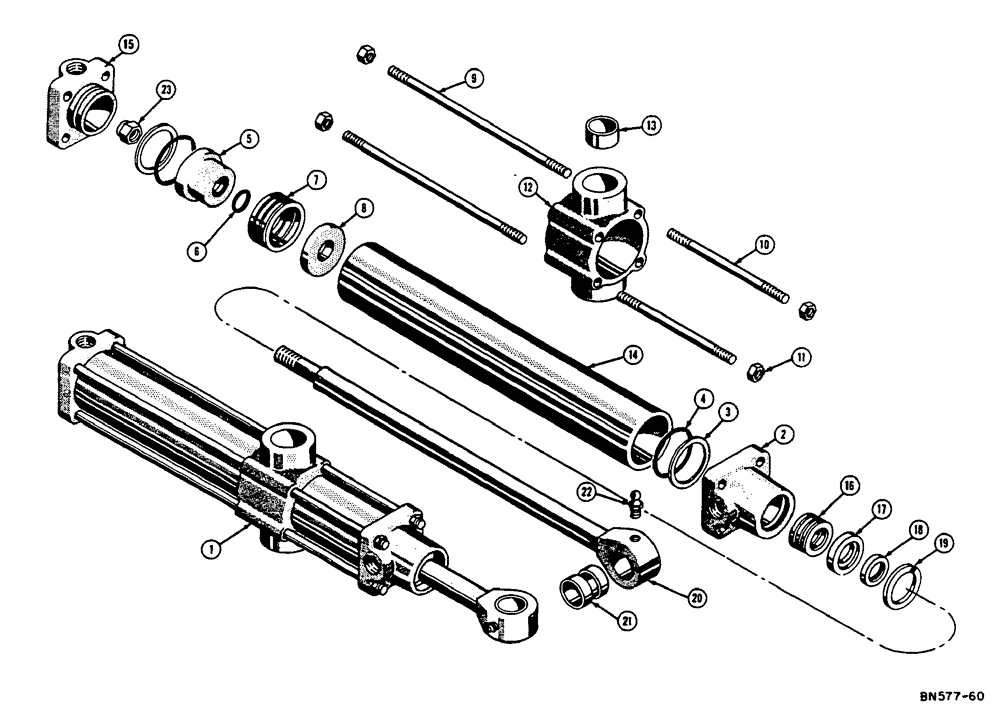

Запчасти Case 310E (107) - D27696 HYDRAULIC SCARIFIER CYLINDER (07) - HYDRAULIC SYSTEM

1

D27696

CYLINDER - Scarifier hydraulic (3" I.D. x 10-1/2" stroke), Includes: Ref. 2 - 23

1шт.

2

31657

ARTICULATION

END - cylinder

1шт.

3

D24986

RING

- leather backup

2шт.

Included in D30137 cylinder packing kit

1шт.

4

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

Included in D30137 cylinder packing kit

1шт.

5

D23735

PISTON

- cylinder

1шт.

6

O3522CK

X

SEAL - "O" ring

1шт.

Included in D30137 cylinder packing kit

1шт.

7

31662

PACKING

- piston

1шт.

Included in D30137 cylinder packing kit

1шт.

8

31661

WASHER

- piston packing

1шт.

9

37392

ROD - tie long

4шт.

10

37393

TAPE

ROD - tie short

4шт.

11

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

8шт.

12

D23302

TRUNNION - cylinder, Includes: Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

14

D23251

TUBE - cylinder

1шт.

15

36999

CAP COVER

CAP - end cylinder

1шт.

16

17597

PACKING

- rod

1шт.

Included in D30137 cylinder packing kit

1шт.

17

D23933

GLAND

- wiper ring

1шт.

Included in D30137 cylinder packing kit

1шт.

18

D23962

SEAL

- wiper piston rod

1шт.

Included in D30137 cylinder packing kit

1шт.

19

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

Included in D30137 cylinder packing kit

1шт.

20

D20021

ROD - piston (1-1/2" dia.), Includes: Ref. 21

1шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease straight (1/8 NPT)

1шт.

23

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.
