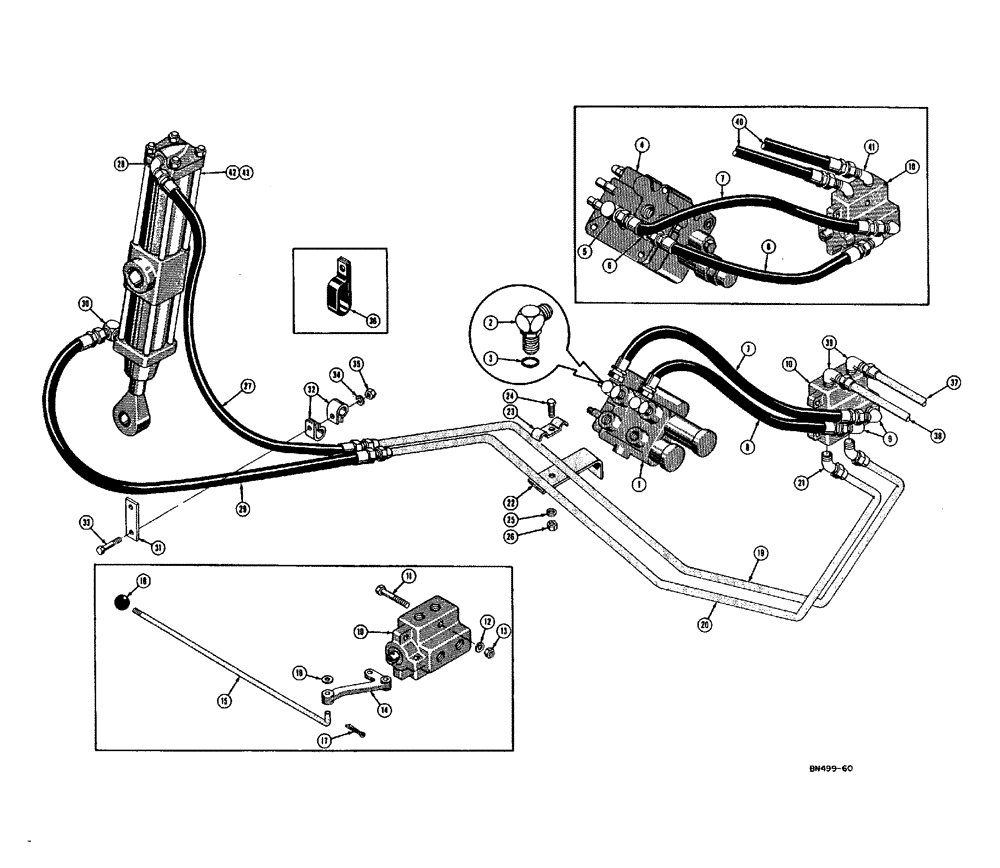

Запчасти Case 310E (106) - SCARIFIER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25450

VALVE - control (See figure 74 for breakdown) Dozer models only

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male 90° (L.H. valve ports) (5/8" JIC x 5/8" JIC) Dozer models only

2шт.

3

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring 218-5107 elbow

1шт.

4

D26491

VALVE - control (See figure 75 for breakdown) Loader models only (Used up to Loader serial #4068995) when stock is exhausted order D29615

1шт.

D29615

VALVE - control (See figure 76 for breakdown) Loader models only (Used on Loader serial #4068995 and after) see D26491

1шт.

5

D23143

FITTING

ELBOW - male 90° (Extra long) R.H. rear valve port (5/8" JIC x 5/8" JIC) Loader models only

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring D23143 elbow (Not shown)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male 90° (R H front valve port) (5/8" JIC x 5/8" JIC) Loader models only

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring 218-5107 elbow (Not shown)

1шт.

7

D28115

HOSE

- rear control valve port to L.H. front diversion valve port (1/2" ID x 7/8" O.D. x 27-1/2")

1шт.

8

D28117

HOSE

- front control valve port to R.H. front diversion valve port (1/2" I.D x 7/8" O.D x 23-1/2")

1шт.

9

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male 45° (3/4" NPT x 5/8" JIC)

2шт.

10

D26726

VALVE

- diversion (See figure 71 for breakdown)

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

12

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

14

D26708

HANDLE - control, diversion valve (Use D27656)

1шт.

D27656

HANDLE - control diversion valve

1шт.

15

D26709

ROD

- control diversion valve handle

1шт.

16

95-6

WASHER,3/8"

- standard wrot (7/16" ID x 1" O.D. x 5/64" thick)

1шт.

17

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

70213

KNOB

- control rod

1шт.

19

D26712

TUBE - L.H. bottom diversion valve port to upper cylinder port front section (Used on all Dozer models used on Loader models up to Loader serial #4065807) see D29104

1шт.

D29104

TUBE - L.H. bottom diversion valve port to upper cylinder port, front section (Used on Loader model

1шт.

20

D26710

TUBE - R.H. bottom diversion valve port to lower cylinder port front section (Used on all Dozer models used on Loader models up to Loader serial #4065807) see D29106

1шт.

D29106

TUBE - R.H. bottom diversion valve port to lower cylinder port front section (Used on Loader models only Loader serial #4065807 and after)

1шт.

21

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male 45° (3/4" NPT x 5/8" JIC)

2шт.

22

D26714

BRACKET - tube

1шт.

23

17179

CLAMP - tube

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

1шт.

27

D26814

X

HOSE - L.H. bottom diversion valve port to upper cylinder port rear section (1/2" I.D x 15/16" O.D. x 39") when stock is exhausted, order D28111

1шт.

D28111

HOSE ASSY.

HOSE - L.H. bottom diversion valve port to upper cylinder port rear section (1/2" I.D x 7/8" O.D. x 39")

1шт.

28

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- male 45° (Upper cylinder port) (1/2" NPT x 5/8" JIC) cylinder with tie rods only (See 218-5137)

1шт.

28

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male 45° (Upper cylinder port) (5/8" JIC x 5/8" JIC) cylinder without tie rods only (See 218-535)

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring 218-5137 elbow (Not shown)

1шт.

29

D27073

HOSE

- R.H. bottom diversion valve port to lower cylinder port rear section (1/2" I.D. x 7/8" O.D.

1шт.

29

D28111

HOSE ASSY.

HOSE - R.H. bottom diversion valve port to lower cylinder port rear section (1/2" I D x 7/8" O.D.

1шт.

30

D20168

ELBOW - male 90° (Special restrictor) lower cylinder port (Cylinder with tie rods only) see R20839

1шт.

30

R20839

FITTING

ELBOW - male 90° (Special restrictor) lower cylinder port (Cylinder without tie rods only) see D20168

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring R20839 elbow (Not shown)

1шт.

31

D20307

BRACKET - hose clamp (Used on all Dozer models used on Loader models up to Loader serial #4065807) see D29118

1шт.

32

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose (Used on all Dozer models used on Loader models up to Loader serial #4065807) see D29118

2шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(D20302 clamp) Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

34

92-5

LOCK WASHER,5/16"

med sect., D20302 clamp 5/16"

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC) D20302 clamp

1шт.

36

D29118

CLAMP - hose (Used on Loader models only Loader serial #4065807 and after) see D20307 and D20302

1шт.

37

D26729

TUBE - L.H. top diversion valve port to Dozer manifold Dozer models only

1шт.

38

D26727

TUBE - R.H. top diversion valve port to Dozer manifold Dozer models only

1шт.

39

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male 90° (3/4" NPT x 5/8" JIC) use D29569

2шт.

D29569

X

ELBOW - male 90° (3/4" NPT x 5/8" JIC) see 218-494

2шт.

40

D27478

HOSE ASSY.

HOSE - top diversion valve ports to Loader lift cylinder manifold tubes (1/2" I.D. x 7/8" O.D. x 22") Loader models only

2шт.

41

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male 90° (3/4" NPT x 5/8" JIC) use D29569

2шт.

D29569

X

ELBOW - male 90° (3/4" NPT x 5/8" JIC) see 218-494

2шт.

42

D27696

CYLINDER - Scarifier hydraulic (With tie rods) see figure 107 for breakdown (When stock is exhausted order 1 - D28335 cylinder 1 - 218-5137 elbow and 1 - R20839 restrictor elbow)

1шт.

43

D28335

CYLINDER - Scarifier hydraulic (Without tie rods) see figure 107 for breakdown (See D27696)

1шт.
