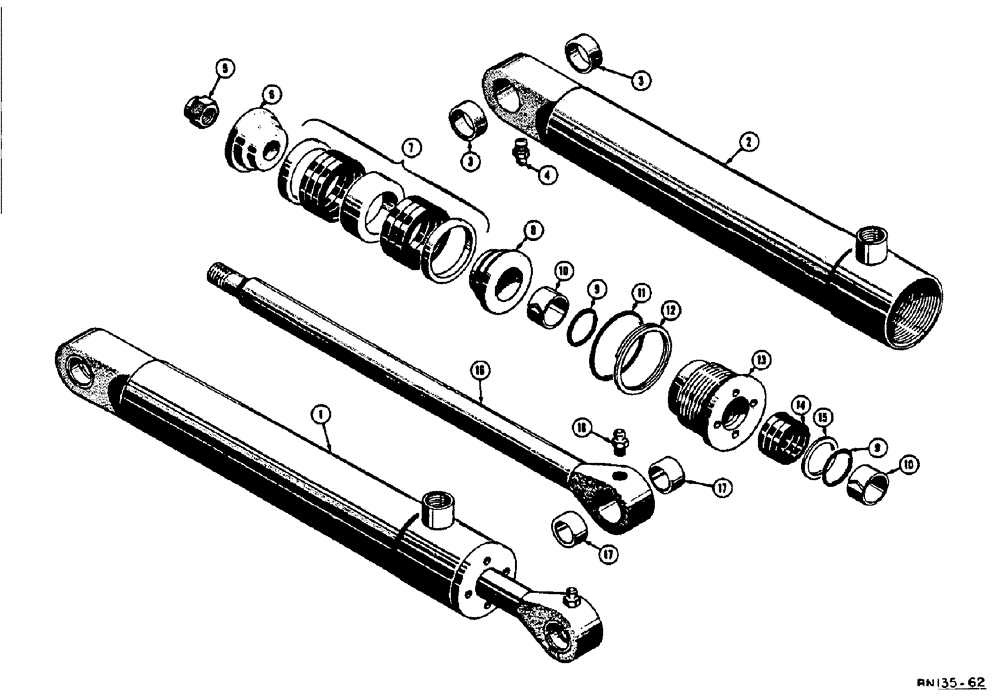

Запчасти Case 310E (104) - D28163 AND D29919 HYDRAULIC DOZER ANGLING CYLINDERS (07) - HYDRAULIC SYSTEM

1

D28163

SPARE PART Dozer angling, hydraulic (L.H.) (3-1/2" I.D. x 9-5/8" stroke), Includes: Ref. 2 - 18

1шт.

1

D29919

CYLINDER

SPARE PART Dozer angling, hydraulic (R.H.) (3-1/2" I.D. x 9-5/8" stroke), Includes: Ref. 2 - 18

1шт.

2

D28385

SPARE PART (L.H.), Includes: Ref. 3

1шт.

2

D29925

SPARE PART cylinder, (R.H.), Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

cylinder, tube end

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

straight (1/8" NPT)

1шт.

5

131-19

LOCK NUT,1"-14, GB

lock (1" - 14 NF)

1шт.

Included in D30132 cylinder packing kit

1шт.

6

D28367

PISTON

half, rod nut end

1шт.

7

D28375

PACKING

piston kit, (Includes Chevron packings and spacers)

1шт.

Included in D30132 cylinder packing kit

1шт.

8

D28369

PISTON

half, rod eye end

1шт.

9

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

wiper

2шт.

Included in D30132 cylinder packing kit

1шт.

10

D27432

SHIM

piston rod

2шт.

Included in D30132 cylinder packing kit

1шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

gland

1шт.

Included in D30132 cylinder packing kit

1шт.

12

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

backup, gland

1шт.

Included in D30132 cylinder packing kit

1шт.

13

D27431

GLAND

packing

1шт.

14

D28495

PACKING

SEAL - piston rod

1шт.

Included in D30132 cylinder packing kit

1шт.

15

D28499

RING

backup, piston rod and seal

1шт.

Included in D30132 cylinder packing kit

1шт.

16

D28167

ROD ASSY.

piston (1-3/4" dia.), Includes: Ref. 17

1шт.

17

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

piston rod

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

straight, (1/8" NPT)

1шт.
