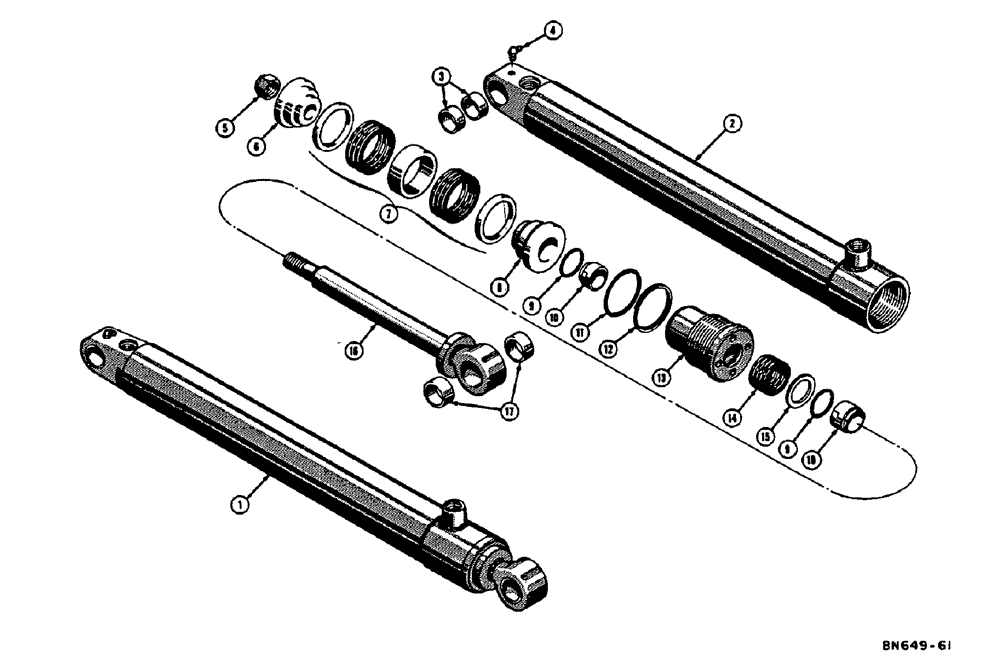

Запчасти Case 310E (102) - D28218 HYDRAULIC TILT CYLINDER (07) - HYDRAULIC SYSTEM

1

D28218

CYLINDER ASSY.

CYLINDER - hydraulic (2-1/2" I.D. x 4-3/4" stroke), Includes: Ref. 2 - 17

1шт.

2

28254

PALLET

TUBE - cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube end

2шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2° (1/8" NPT)

1шт.

5

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

Included in D30126 cylinder packing kit

1шт.

6

D28364

PISTON

- half piston rod nut end

1шт.

7

D28373

PACKING

- piston kit (Includes chevrons and spacers)

1шт.

Included in D30126 cylinder packing kit

1шт.

8

NLS

NO LONGER SERVICED

- half, piston rod eye end

1шт.

9

08848AB

SEAL - "O" ring wiper

2шт.

Included in D30126 cylinder packing kit

1шт.

10

D27705

WIPER

- piston rod

2шт.

Included in D30126 cylinder packing kit

1шт.

11

O10984AB

X

SEAL - "O" ring gland

1шт.

Included in D30126 cylinder packing kit

1шт.

12

D27856

RING

- backup gland seal

1шт.

Included in D30126 cylinder packing kit

1шт.

13

D27854

GLAND

- packing

1шт.

14

D28493

X

SEAL - piston rod

1шт.

Included in D30126 cylinder packing kit

1шт.

15

D28497

RING

- backup piston rod seal

1шт.

Included in D30126 cylinder packing kit

1шт.

16

D28251

X

ROD - piston (1-1/4" dia.), Includes: Ref. 17

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.
