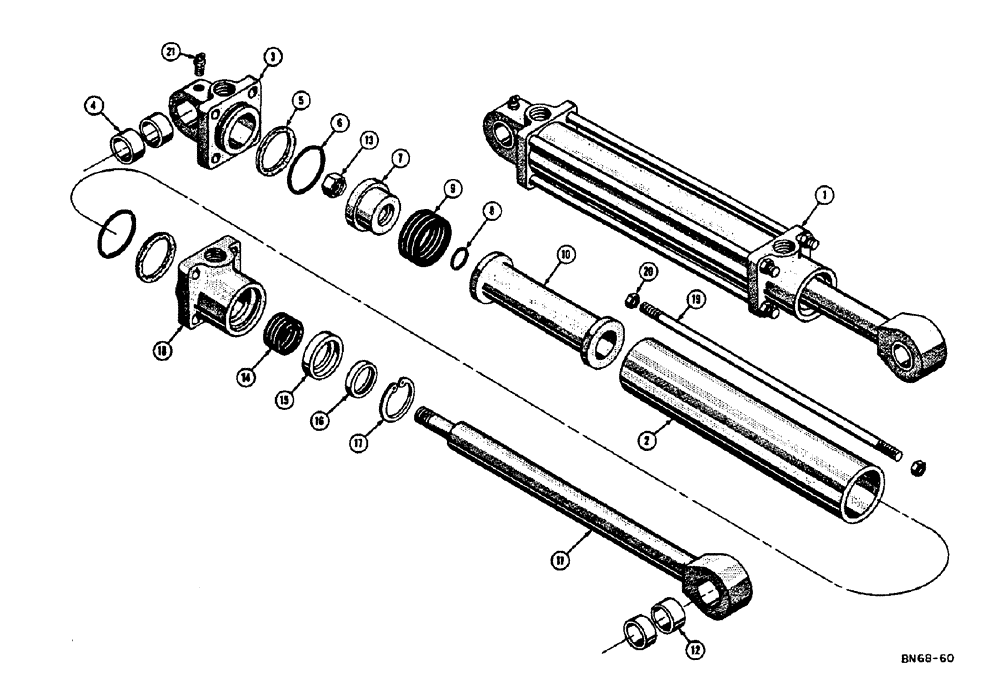

Запчасти Case 310E (101) - 38160 HYDRAULIC TILT CYLINDER (07) - HYDRAULIC SYSTEM

1

38160

LINE

CYLINDER - hydraulic, (2-1/2" I.D. x 4-3/4" stroke), Includes: Ref. 2 - 21

1шт.

2

38163

TUBE - cylinder

1шт.

3

D20038

SPARE PART cylinder, Includes: Ref. 4

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

cylinder end

2шт.

5

D24985

RING

leather backup

2шт.

Included in D30135 cylinder packing kit

1шт.

6

86982912

O-RING

2шт.

Included in D30135 cylinder packing kit

1шт.

7

D23738

BLOCK

PISTON - cylinder, small

1шт.

8

03522CK

SEAL

1шт.

Included in D30135 cylinder packing kit

1шт.

9

17598

PACKING

piston

1шт.

Included in D30135 cylinder packing kit

1шт.

10

38165

PISTON - cylinder, large

1шт.

11

D20025

SPARE PART ROD - piston (1-1/4" dia.), Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

piston rod

2шт.

13

D23739

LOCK NUT

(3/4" - 16 NF)

1шт.

14

17597

PACKING

piston rod

1шт.

Included in D30135 cylinder packing kit

1шт.

15

D23933

GLAND

wiper ring

1шт.

Included in D30135 cylinder packing kit

1шт.

16

D23962

SEAL

wiper, piston rod

1шт.

Included in D30135 cylinder packing kit

1шт.

17

86982912

O-RING

2.125", Int, #212, seal, piston rod

1шт.

Included in D30135 cylinder packing kit

1шт.

18

30628

SPARE PART cylinder

1шт.

19

38166

CAP COVER

SPARE PART ROD - tie

4шт.

20

230-4616

LOCK NUT,3/8"-24, GA

lock, (1/2" - 20 NF)

8шт.

21

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

67-1/2° (1/8" NPT)

1шт.
