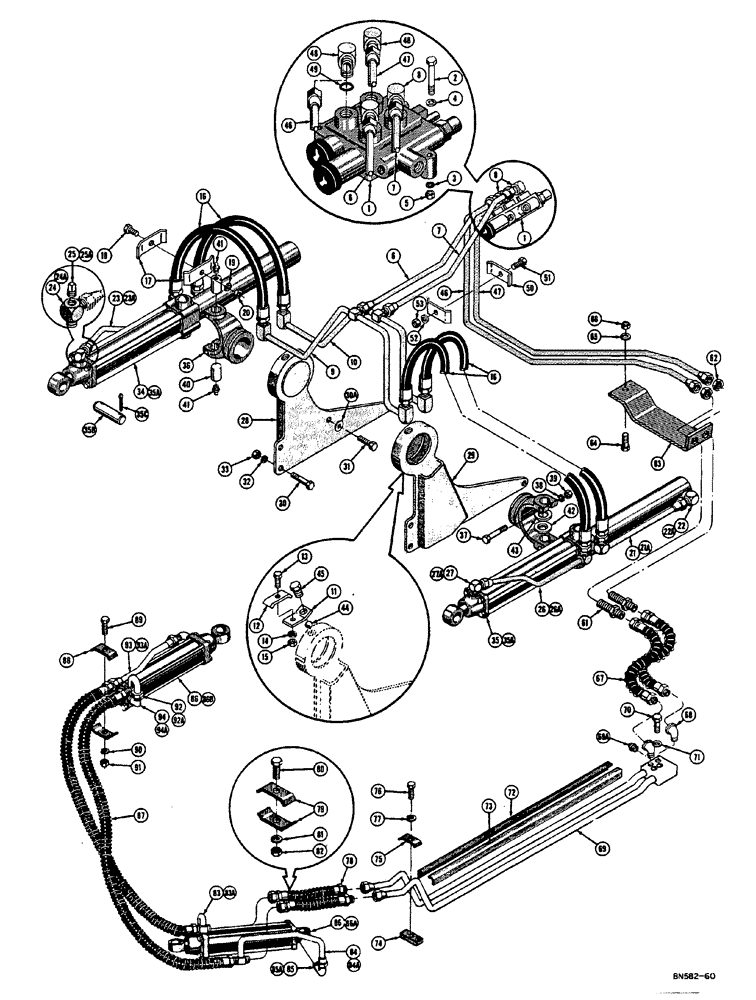

Запчасти Case 310E (100) - HYDRAULIC ANGLING DOZER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25450

VALVE - control (See figure 74 for breakdown)

1шт.

2

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

3шт.

4

95-6

WASHER,3/8"

- standard wrot (7/16" ID x 1 O.D. x 5/64" thick)

3шт.

5

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

3шт.

6

D26741

TUBE - L.H. front control valve port to front manifold tube

1шт.

7

D26743

TUBE - L.H. rear control valve port to rear manifold tube

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male 90° (5/8" JIC x 5/8" JIC)

2шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring 218-5107 elbow (Not shown)

1шт.

9

D26745

TUBE - manifold front

1шт.

10

D26748

TUBE - manifold rear

1шт.

11

D26751

BRACKET - tube

2шт.

12

38843

PLATE - clamp, when stock is exhausted order 38331

2шт.

38331

PLATE

- clamp

2шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

14

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

2шт.

16

D26792

HOSE - manifold to lift cylinder (1/2" I.D. x 7/8" O.D. x 26")

4шт.

17

31665

COLLAR CLAMP

PLATE - clamp

4шт.

18

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

19

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC)

2шт.

21

D25574

TUBE - hose to rear lift cylinder port (Cylinder with tie rods only) see D27785

2шт.

21a

D27785

TUBE - hose to rear lift cylinder port (cylinders without tie rods only) see D25574

2шт.

22

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male 90° (Cylinder with tie rods only) (1/2" NPT x 5/8" JIC) see 218-5107

2шт.

22a

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male 90° (Cylinder without tie rods only) (5/8" JIC x 5/8" JIC) see 218-485

2шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring 218-5107 elbow (Not shown)

1шт.

23

D25570

TUBE

- hose to front R.H. lift cylinder port (Cylinder with tie rods only) see D27783

1шт.

23a

D27783

TUBE - hose to front R.H. lift cylinder port (Cylinder without tie rods only) see D25570

1шт.

24

33888

ELBOW - special R.H. cylinder front port (1/2" NPT male x 5/8" JIC male x 1/8" NPT female) (Cylinder with tie rods only)

1шт.

24a

D27782

X

ELBOW - special R.H. cylinder front port (5/8" JIC male x 5/8" JIC male x 1/4" NPT female) (Cylinder without tie rods only)

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring D27782 elbow (Not shown)

1шт.

25

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe 1/8" NPT square head (33888 elbow)

1шт.

25a

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe 1/4" NPT square head (D27782 elbow)

1шт.

26

D25572

TUBE - hose to front L.H. lift cylinder port (Cylinder with tie rods only) see D27783

1шт.

26a

D27783

TUBE - hose to front L.H. lift cylinder port (Cylinder without tie rods only) see D25572

1шт.

27

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male 90° (L.H. cylinder front port) (1/2" NPT x 5/8" JIC) cylinder with tie rods only (See 218-5107)

1шт.

27a

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male 90° (L.H. cylinder front port) (5/8" JIC x 5/8" JIC) cylinder without tie rods only

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring 218-5107 elbow (Not shown)

1шт.

28

D24502

BRACKET - cylinder R.H.

1шт.

29

D24501

BRACKET - cylinder L.H.

1шт.

30

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

30a

95-10

WASHER,5/8"

- standard wrot (11/16" I.D. x 1-3/4" O.D. x 9/64" thick) R.H. cylinder bracket upper mounting bolts (Diesel models only)

2шт.

31

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

33

25-1010

NUT,5/8"-11, G5

10шт.

34

D25937

CYLINDER - Dozer lift,hydraulic (R.H.) with tie rods (see figure 93 for breakdown) when stock is exhausted, order D27826 cylinder, D27785 tube, 218-5107 elbow, D27783 tube, D7782 elbow, and 221-2 pipe plug (See D27826)

1шт.

35

D25936

CYLINDER - Dozer lift, hydraulic (L.H.) with tie rods (see figure 93 for breakdown) when stock is exhausted, order D27826 cylinder, D27785 tube, 218-5107 elbow, and D27783 tube (See D27826)

1шт.

35a

D27826

CYLINDER - Dozer lift, hydraulic (Without tie rods) see figure 93 for breakdown (See D25937 and D25936)

2шт.

35b

16726

PIN - mounting lift cylinder to "C" frame

2шт.

35c

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , 16726 pin 1/4" x 2"

4шт.

36

D24497

TRUNNION

- inner race

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

PITTING - grease straight (1/8" NPT)

2шт.

37

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

4шт.

38

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

4шт.

39

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

4шт.

40

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease straight (1/8" NPT) WASHER - thrust, bottom (1-9/32" I D x 2-1/4" O.D. x 3/16"

4шт.

42

D24516

WASHER

- thrust, bottom (1-9/32" I D x 2-1/4" O.D. x 3/16"

2шт.

43

32625

WASHER - thrust top (1-9/32" I D x 2-1/2 O.D. x 11/64" thick) (Use D24516)

2шт.

44

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

38шт.

45

D24506

PLUG

- special (7/8" - 14 NF)

2шт.

46

D26739

R.H. front control valve port to front bulkhead union, angling cylinder hydraulics

1шт.

47

D26737

TUBE - R.H. rear control valve port to rear bulkhead union, angling cylinder hydraulics

1шт.

48

D25667

ELBOW

- male 90° (1/2" JIC x 5/8" JIC), angling cylinder hydraulics

2шт.

49

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring D25667 elbow, angling cylinder hydraulics

1шт.

50

32978

PLATE ASSY.

PLATE - clamp, angling cylinder hydraulics

2шт.

51

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", angling cylinder hydraulics

1шт.

52

92-5

LOCK WASHER,5/16"

med sect., angling cylinder hydraulics 5/16"

1шт.

53

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC), angling cylinder hydraulics

1шт.

61

50883

UNION - special bulkhead, angling cylinder hydraulics

2шт.

62

25-1112

NUT,3/4"-16, G5

- hex (3/4" - 16 NF), angling cylinder hydraulics

2шт.

63

39046

GUARD - tubing, angling cylinder hydraulics

1шт.

64

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Angling cylinder hydraulics Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

65

92-8

LOCK WASHER,1/2"

med. sec., angling cylinder hydraulics 1/2"

1шт.

66

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC), angling cylinder hydraulics

1шт.

67

D20176

HOSE - bulkhead union to junction block and tube assy (1/2" I.D. x 7/8" O.D. x 15-3/4"), angling cylinder hydraulics

2шт.

68

D23906

ELBOW

- street 45° (3/8" NPT), angling cylinder hydraulics

2шт.

69

D28039

BLOCK

JUNCTION BLOCK AND TUBE ASSY, angling cylinder hydraulics

1шт.

69a

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe square head (1/4 NPT), angling cylinder hydraulics

1шт.

70

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", angling cylinder hydraulics

2шт.

71

92-8

LOCK WASHER,1/2"

med. sec., angling cylinder hydraulics 1/2"

2шт.

72

39610

GUARD - tubing inside (Tack welded over inside tube of junction block and tube assy), angling cylinder hydraulics

1шт.

73

39611

FINGER

GUARD - tubing outside (Tack welded over outside tube of junction block and tube assy), angling cylinder hydraulics

1шт.

74

39607

SPACER - tufie clamp, angling cylinder hydraulics

1шт.

75

D20369

CLAMP

PLATE - clamp, angling cylinder hydraulics

1шт.

76

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NC x 2-1/4", angling cylinder hydraulics

1шт.

77

92-8

LOCK WASHER,1/2"

med. sec., angling cylinder hydraulics 1/2"

1шт.

78

38614

CLIP

HOSE - junction block and tube assy to L.H. angling cylinder (1/2" I.D. x 7/8" O.D. x 12-5/8"), hydraulics

2шт.

79

31665

COLLAR CLAMP

PLATE - clamp, angling cylinder hydraulics

2шт.

80

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4", angling cylinder hydraulics

1шт.

81

92-5

LOCK WASHER,5/16"

med sect., angling cylinder hydraulics 5/16"

1шт.

82

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC), angling cylinder hydraulics

1шт.

83

38326

BUSHING,1.875, 1.125" Length

TUBE - hose to L.H. angling cylinder front port (Cylinder with tie rods only) see D28201, hydraulics

1шт.

83a

D28201

TUBE - hose to L.H. angling cylinder front port (Cylinder without tie rods only) see 38326, hydraulics

1шт.

84

38324

TUBE - hose to L.H. angling cylinder rear port (Cylinder with tie rods only) see D28203, hydraulics

1шт.

84a

D28203

TUBE ASSY.

TUBE - hose to L.H. angling cylinder rear port (Cylinder without tie rods only) see 38324, hydraulics

1шт.

85

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male 90° (1/2" NPT x 1/2" JIC) cylinder with tie rods only (See D25667), angling hydraulics

2шт.

85a

D25667

ELBOW

- male 90° (1/2" JIC x 5/8" JIC) cylinder without tie rods only (See 218-493), angling hydraulics

2шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring D25667 elbow (Not shown), angling cylinder hydraulics

1шт.

86a

D28163

CYLINDER - Dozer angling hydraulic (L.H.) without tie rods (See figure 235 for breakdown) see 37932, cylinder

1шт.

86

D29919

CYLINDER

- Dozer angling hydraulic (R.H.) without tie rods (See figure 235 for breakdown) see 37932, cylinder

1шт.

87

39637

LINE

HOSE - L.H. angling cylinder to R H angling cylinder (1/2" I.D. x 7/8" O.D. x 45") cylinder with tie rods only (See D29915), hydraulics

2шт.

D29915

HOSE - L.H. angling cylinder to R H angling cylinder (1/2" I.D x 7/8" O.D. x 48") cylinder without tie rods only (See 39637), hydraulics

2шт.

88

31665

COLLAR CLAMP

PLATE - clamp, angling cylinder hydraulics

4шт.

89

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4", angling cylinder hydraulics

2шт.

90

92-5

LOCK WASHER,5/16"

med sect., angling cylinder hydraulics 5/16"

2шт.

91

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC), angling cylinder hydraulics

2шт.

92

38328

TUBE - hose to R.H. angling cylinder front port (Cylinder with tie rods only) see D28205, hydraulics

1шт.

92a

D28205

PIPE

TUBE - hose to R.H. angling cylinder front port (Cylinder without tie rods only) see 38328, hydraulics

1шт.

93

38322

TUBE - hose to R.H. angling cylinder rear port (Cylinder with tie rods only) see D28207, hydraulics

1шт.

93a

D28207

TUBE - hose to R.H. angling cylinder rear port (Cylinder without tie rods only) see 38322, hydraulics

1шт.

94

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male 90° (1/2" NPT x 1/2" JIC) (Cylinder with tie rods only) see D25667, angling hydraulics

2шт.

94a

D25667

ELBOW

- male 90° (1/2" JIC x 5/8" JIC) (Cylinder without tie rods only) see 218-493, angling hydraulics

2шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring D25667 elbow (Not shown), angling cylinder hydraulics

1шт.
