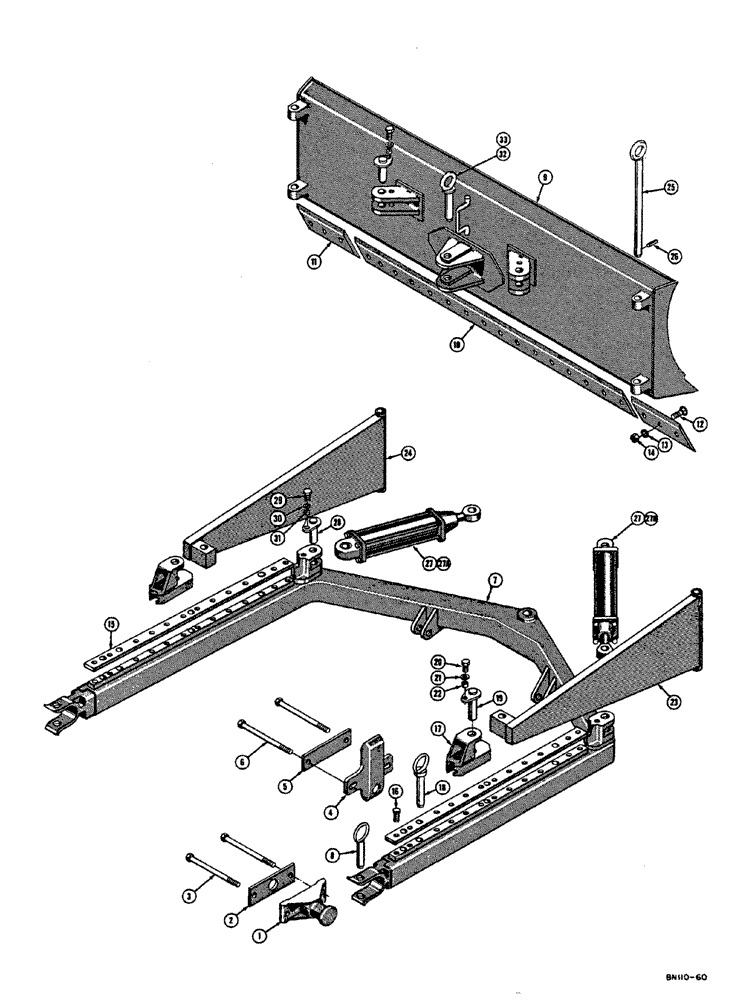

Запчасти Case 310E (099) - HYDRAULIC ANGLING DOZER (07) - HYDRAULIC SYSTEM

1

34044

SPACER

SPARE PART pivot Dozer attaching

2шт.

2

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

pivot bracket

2шт.

3

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - 3/4" - 16 NF x 12"

4шт.

4

33961

CONNECTING LINK

PLATE - rub

2шт.

5

34047

LEVER

SPACER - rub plate

2шт.

6

14-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 5

HHCS - 3/4" - 16 NF x 12"

4шт.

7

37963

"C" FRAME - Hydraulic Angling Dozer (When stock is exhausted order D29165)

1шт.

D29165

SPARE PART "C" FRAME - Hydraulic Angling Dozer (See 37963)

1шт.

8

38679

SPARE PART "C" frame to pivot bracket

2шт.

9

D20266

SPARE PART MOLDBOARD - Hydraulic Angling Dozer

1шт.

10

38047

EDGE

cutting center

1шт.

11

16042

EDGE

cutting, end

2шт.

12

19-828

BOLT,1/2"-13 x 1 3/4", G5

plow (1/2" - 13 NC x 1-3/4")

23шт.

13

92-8

LOCK WASHER,1/2"

23шт.

14

25-108

NUT,1/2"-13, G5

Hex

23шт.

15

37573

SPARE PART slide

2шт.

16

164-132

HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 3/4"

SHCS - slide plate (1/2" - 20 NF x 1-3/4")

26шт.

17

39127

BRACKET

SPARE PART slide

2шт.

18

38070

LUBE NIPPLE

angling stop

2шт.

19

D28564

SPARE PART mounting, strut to slide bracket

2шт.

20

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2" - 20 NF x 3/4"

2шт.

21

193-32

LOCK WASHER,Int Tooth, 1/2"

2шт.

22

D23740

BUSHING

lockhead pin

2шт.

23

D20224

SPARE PART slide bracket to moldboard R.H.

1шт.

24

D20225

SPARE PART slide bracket to moldboard L.H.

1шт.

25

D20247

SPARE PART mounting, Serial Range: strut-moldboard

2шт.

26

138-142

LOCK PIN,1/4" x 2", Slotted

D20247 pin

2шт.

27a

D28163

SPARE PART Dozer angling hydraulic (L.H.) without tie rods (See figure 103 for breakdown) see 37932 (Not shown)

1шт.

27b

D29919

CYLINDER

SPARE PART Dozer angling hydraulic (R.H.) without tie rods (See figure 103 for breakdown) see 37932 (Not shown)

1шт.

D25667

ELBOW

SPARE PART male 90° (1/2" JIC x 5/8" JIC) cylinder without tie rods only (Not shown)

4шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

D25667 elbow (Not shown)

1шт.

D29915

SPARE PART L.H. angling cylinder to R.H. angling cylinder (1/2" I.D. x 7/8" O.D. x 48") cylinder wit

2шт.

D28207

SPARE PART hose to R.H. angling cylinder rear port (Cylinder without tie rods only) not shown

1шт.

D28205

PIPE

hose to R.H. angling cylinder front port (Cylinder without tie rods only) not shown

1шт.

28

31109

PIN ASSY.

mounting angling cylinder to C frame and mold-board

4шт.

29

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2" - 20 NF x 3/4"

4шт.

30

193-32

LOCK WASHER,Int Tooth, 1/2"

4шт.

31

D23740

BUSHING

lockhead pin

4шт.

32

38072

PIN

"C" frame to moldboard center

1шт.

33

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

38072 pin

1шт.
