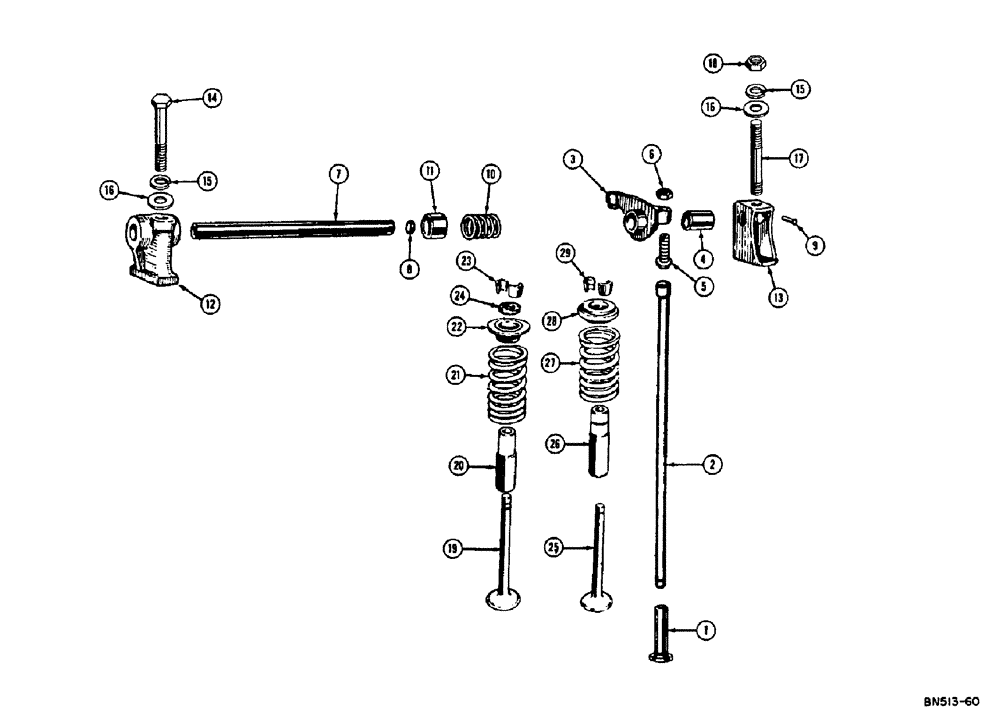

Запчасти Case 310E (004) - VALVES, PUSH RODS AND ROCKER ARMS - GAS (01) - ENGINE

1

VT3236

X

TAPPET - valve

8шт.

2

G11086

ROD

- push

8шт.

3

G45234

ARM

- rocker, R.H.

4шт.

G45235

ARM

- rocker L.H., Includes: Ref. 4 - 6

4шт.

4

O5759AB2

X

BUSHING - rocker arm

1шт.

5

O5760AB1

X

SCREW - adjusting, rocker arm

1шт.

6

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam (5/16" - 24 NF)

1шт.

7

VT4540

X

SHAFT - rocker arm

2шт.

8

O4404AB

X

PLUG - rocker arm shaft, end

2шт.

9

139-205

PIN - taper, shaft end (#OO x 3/4") 2/0 x 3/4", Tapered

2шт.

10

VT3237

X

SPRING - rocker arm shaft

4шт.

11

VT3238

X

SPACER - rocker arm shaft

2шт.

12

G21O7

BRACKET - center rocker arm shaft

1шт.

13

G46250

BRACKET

- intermediate and end rocker arm shaft

4шт.

14

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - center and end brackets (3/8" - 16 NC x 2-3/4")

3шт.

15

92-6

LOCK WASHER,3/8"

med. sec. 3/8"

5шт.

16

VT3291

X

WASHER - stud (13/32" ID x 1" O.D. x 1/8")

4шт.

17

G49505

STUD

- end rocker arm bracket and valve cover (3/8" x 4-5/8")

2шт.

18

25-106

NUT,3/8"-16, G5

- hex stud (3/8" - 16 NC)

2шт.

19

G11914

VALVE

- intake (Set of 4)

1шт.

20

VTA911

X

GUIDES - valve stem (Set of 4)

1шт.

21

VT3372

SPRING

- intake valve

4шт.

G11927

RETAINER

KIT - valve spring retainer, Includes: Ref. 22 and 23

1шт.

22

G11717

RETAINER

- spring intake valve (Use G11927)

4шт.

23

G11929

LOCK

KIT - retainer lock, valve spring (Set of 4)

2шт.

24

G46851

SEAL

- rubber, intake valve

4шт.

25

G11915

VALVE, ENG EXHAUST,

VALVE - (Set of 4)

1шт.

26

VTA911

X

GUIDES - valve stem (Set of 4)

1шт.

27

G10004

SPRING

- exhaust valve

4шт.

28

G11928

CAP

ROTO - exhaust valve retainer (Set of 4)

1шт.

29

G11929

LOCK

KIT - retainer valve spring (Set of 4)

2шт.
