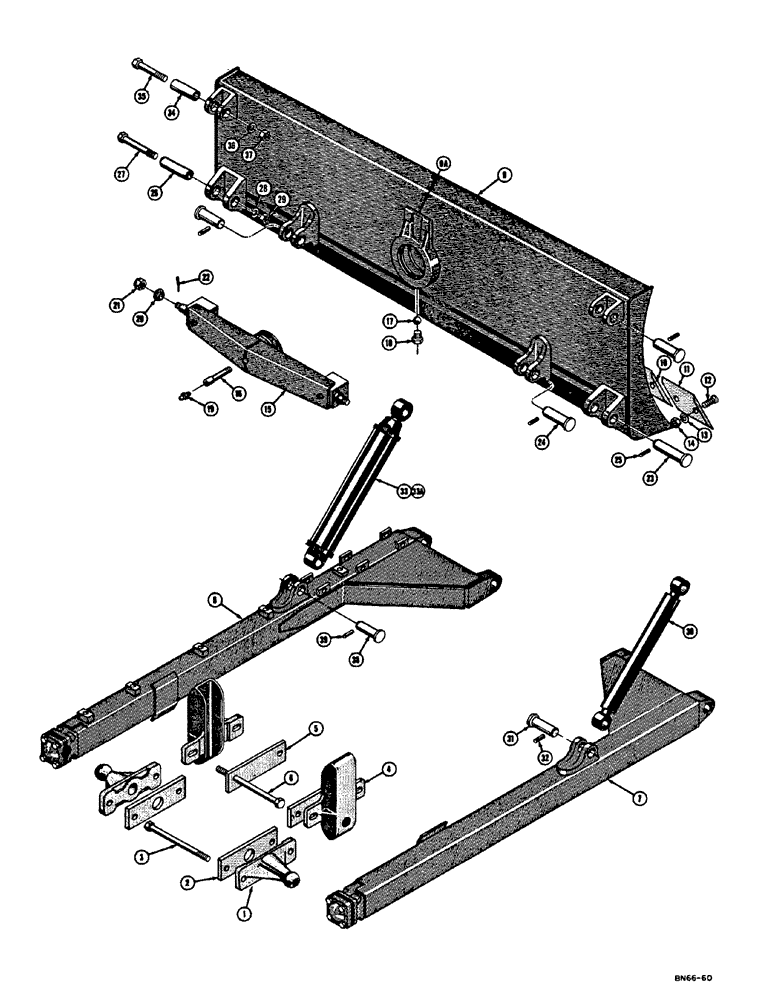

Запчасти Case 310E (097) - HYDRAULIC CROWN TILT BULLDOZER (07) - HYDRAULIC SYSTEM

1

37775

BAR

TRUNNION - pivot Dozer attaching

2шт.

2

34043

SPACER,12.95mm ID x 19.05mm OD x 17.47mm L

trunnion

2шт.

3

16-12192

BOLT (MACHINE)

HHCS - 3/4" - 16 NF x 12

4шт.

4

37992

PLATE - rub

2шт.

5

34047

LEVER

SPACER - rub plate

2шт.

6

16-12192

BOLT (MACHINE)

HHCS - 3/4" - 16 NF x 12

4шт.

7

37881

CONDUIT

BEAM - push R.H.

1шт.

8

37997

FORK

SPARE PART BEAM - push L.H.

1шт.

9

D25701

MOLDBOARD - Hydraulic Crown Tilt Bulldozer, Includes: Ref. 9A

1шт.

9a

D27109

SPARE PART outer race

1шт.

10

16452

EDGE

BLADE - cutting center

1шт.

11

NLS

NO LONGER SERVICED

BLADE - cutting end

2шт.

12

19-828

BOLT,1/2"-13 x 1 3/4", G5

plow (1/2" - 13 NC x 1-3/4")

19шт.

13

92-8

LOCK WASHER,1/2"

19шт.

14

25-108

NUT,1/2"-13, G5

Hex

19шт.

15

D25702

SPARE PART LEVELING ASSY - moldboard

1шт.

16

D25736

PIPE - lubrication leveling assembly

1шт.

17

211-17

BALL,3/4" Dia

steel (.) 3/4" Dia

19шт.

18

D24506

PLUG

SPARE PART special (7/8" - 14 NF)

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

straight (1/8" NPT)

1шт.

20

D25704

SPARE PART

2шт.

21

25-1212

SPARE PART NUT - hex slotted (3/4" - 10 NC) 3/4"-10, G5

2шт.

22

132-152

PIN

cotter 1/8" x 1-1/2"

2шт.

23

39222

PIN - R.H. push beam to moldboard outer

1шт.

24

37990

SPARE PART push beam to moldboard inner

2шт.

25

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

39222 and 27990 pins

3шт.

26

D20149

PIN - L.H. push beam to moldboard outer

1шт.

27

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

28

92-8

LOCK WASHER,1/2"

1шт.

29

25-108

NUT,1/2"-13, G5

Hex

1шт.

30

38158

STRUT - R.H. push, Serial Range: beam-moldboard

1шт.

31

37990

SPARE PART mounting strut (Upper and lower)

2шт.

32

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

37990 pin

2шт.

33

38160

LINE

CYLINDER - Dozer tilt hydraulic (With tie rods) see figure 101 for breakdown (When stock is exhausted order D28218 cylinder 218-5060 connector and D23973 elbow)

1шт.

33a

D28218

CYLINDER ASSY.

Dozer tilt hydraulic (Without tie rods) see figure 101 for breakdown (See 38160)

1шт.

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Male (1/2" JIC x 5/8" JIC) used in front port of tilt cylinder when replacing 38160 cylinder with D28218 cylinder only (Not shown)

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

218-5060 connector (Not shown)

1шт.

D23973

SPARE PART ELBOW - male 90° (Rear tilt cylinder port) (1/2" JIC x 5/8" JIC) cylinder without tie rods only (Not shown)

1шт.

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

D23973 elbow (Not shown)

1шт.

34

D20188

SPARE PART tilt, Serial Range: cylinder-moldboard

1шт.

35

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

36

92-8

LOCK WASHER,1/2"

1шт.

37

25-108

NUT,1/2"-13, G5

Hex

1шт.

38

37990

SPARE PART tilt cylinder to L.H. push beam

1шт.

39

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

37990 pin

1шт.
