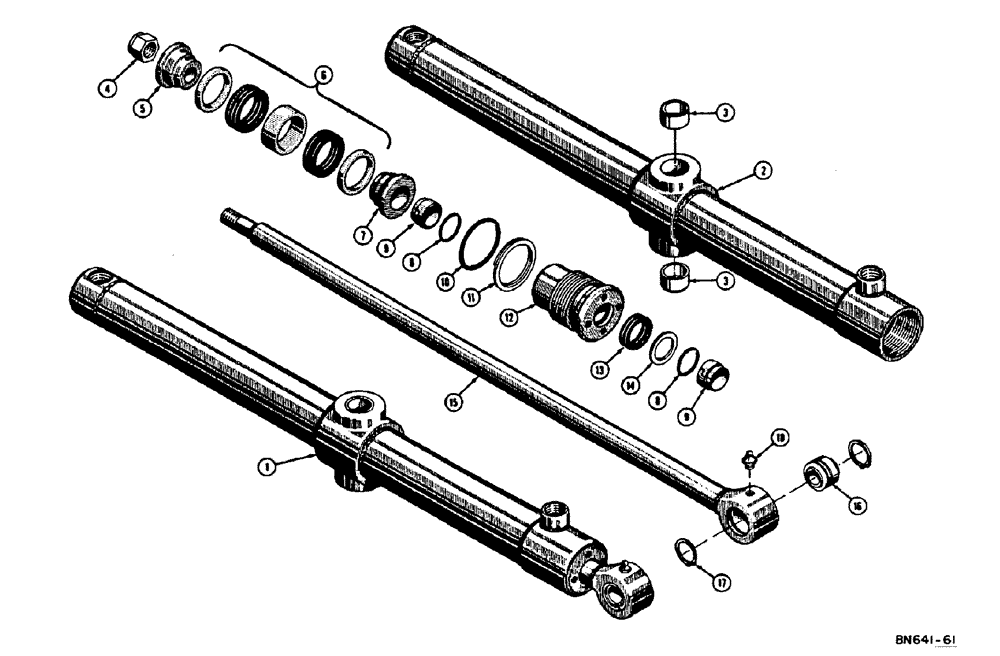

Запчасти Case 310E (096) - D28219 DOZER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D28219

CYLINDER

- hydraulic (2-1/2" I.D. x 25-1/2" stroke), Includes: Ref. 2 - 18

2шт.

2

D28257

TUBE - Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube trunnion

2шт.

4

D23739

LOCK NUT

NUT - (3/4" - 16 NF)

1шт.

Included in D30126 cylinder packing kit

1шт.

5

P28364

SCREW

PISTON - half piston rod nut end

1шт.

6

D28373

PACKING

- piston kit (Includes chevron packings and and spacers)

1шт.

Included in D30126 cylinder packing kit

1шт.

7

D28362

SCREW

- half, piston rod eye end

1шт.

8

O8848AB

X

SEAL - wiper

2шт.

Included in D30126 cylinder packing kit

1шт.

9

D27705

WIPER

- piston rod

2шт.

Included in D30126 cylinder packing kit

1шт.

10

O10984AB

X

SEAL, gland

1шт.

Included in D30126 cylinder packing kit

1шт.

11

D27856

RING

- backup gland seal

1шт.

Included in D30126 cylinder packing kit

1шт.

12

D27854

GLAND

- packing

1шт.

13

D28493

X

SEAL - piston rod

1шт.

Included in D30126 cylinder packing kit

1шт.

14

D28497

RING

- backup piston rod seal

1шт.

Included in D30126 cylinder packing kit

1шт.

15

D28260

ROD ASSY.

ROD - piston (1-1/4" dia.), Includes: Ref. 16 and 17

1шт.

16

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - self aligning

1шт.

17

NLS

NO LONGER SERVICED

Ring, Snap, 1.625", Int, #162

2шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
