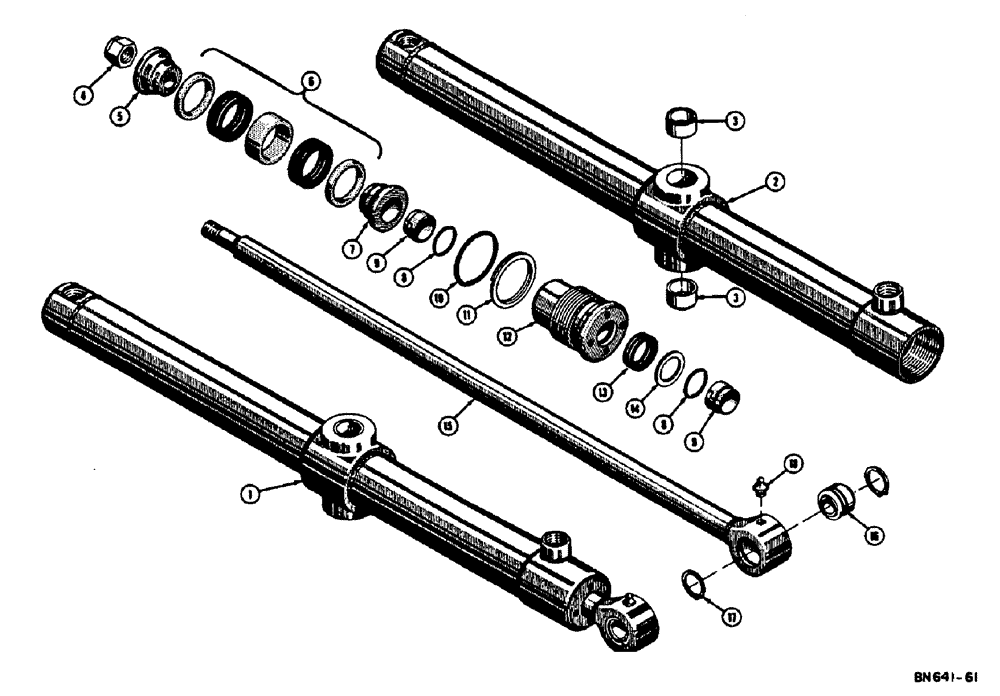

Запчасти Case 310E (094) - D27826 DOZER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D27826

CYLINDER - (2-1/2" I.D. x 27-3/8" stroke), Includes: Ref. 2 - 18

2шт.

2

D27837

TUBE - cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube trunnion

2шт.

4

D23739

LOCK NUT

NUT - (3/4" - 16 NF)

1шт.

Included in D30126 cylinder packing kit

1шт.

5

D28364

PISTON

- half, rod nut end

1шт.

6

D28373

PACKING

- piston, kit (Includes chevron packings and spacers)

1шт.

Included in D30126 cylinder packing kit

1шт.

7

NLS

NO LONGER SERVICED

PISTON - half piston rod eye end

1шт.

8

O8848AB

X

SEAL, wiper

2шт.

Included in D30126 cylinder packing kit

1шт.

9

D27705

WIPER

- piston rod

2шт.

Included in D30126 cylinder packing kit

1шт.

10

O10984AB

X

SEAL, gland

1шт.

Included in D30126 cylinder packing kit

1шт.

11

D27856

RING

- backup gland seal

1шт.

Included in D30126 cylinder packing kit

1шт.

12

D27854

GLAND

- packing

1шт.

13

D28493

X

SEAL - piston rod

1шт.

Included in D30126 cylinder packing kit

1шт.

14

D28497

RING

- backup

1шт.

Included in D30126 cylinder packing kit

1шт.

15

D27828

PISTON ROD

ROD - (1-1/4" dia.), Includes: Ref. 16 and 17

1шт.

16

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - self aligning

1шт.

17

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight (1/8" NPT)

1шт.
