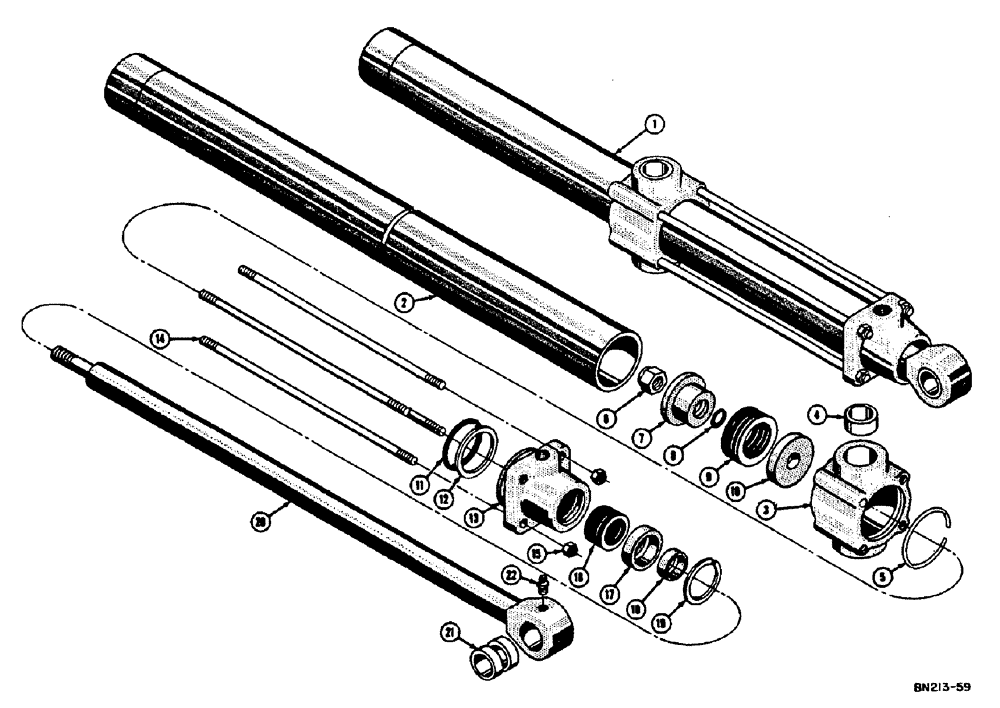

Запчасти Case 310E (093) - D25936 AND D25937 DOZER LIFT HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

1

D25936

CYLINDER - hydraulic, L.H. (2-1/2" I.D. x 27-3/8" stroke), Includes: Ref. 2 - 22

1шт.

D25937

CYLINDER - hydraulic, R.H. (2-1/2" I.D. x 27-3/8" stroke), Includes: Ref. 2 - 22

1шт.

2

D24520

CAP - tube and end, cylinder

1шт.

3

D25935

TRUNNION - cylinder, Includes: Ref. 4

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

5

D23373

RING - snap, trunnion

1шт.

6

D23739

LOCK NUT

NUT - piston rod (3/4" - 16 NF)

1шт.

7

D23738

BLOCK

PISTON - cylinder

1шт.

8

O3522CK

X

SEAL

1шт.

Included in D30135 cylinder packing kit

1шт.

9

17598

PACKING

- piston

1шт.

Included in D30135 cylinder packing kit

1шт.

10

30630

CARTRIDGE

WASHER - piston packing

1шт.

11

86982912

O-RING

SEAL, O-Ring

1шт.

Included in D30135 cylinder packing kit

1шт.

12

D24985

RING

- leather backup

1шт.

Included in D30135 cylinder packing kit

1шт.

13

30628

CAP - cylinder

1шт.

14

D24521

ROD - tie

4шт.

15

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

4шт.

16

17597

PACKING

- piston rod

1шт.

Included in D30135 cylinder packing kit

1шт.

17

D23933

GLAND

- wiper ring

1шт.

Included in D30135 cylinder packing kit

1шт.

18

D23962

SEAL

- wiper piston rod

1шт.

Included in D30135 cylinder packing kit

1шт.

19

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

Included in D30135 cylinder packing kit

1шт.

20

D24531

ROD - piston (1-1/4" dia.), Includes: Ref. 21

1шт.

21

D24515

BUSHING - piston rod

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight (1/8" NPT)

1шт.
