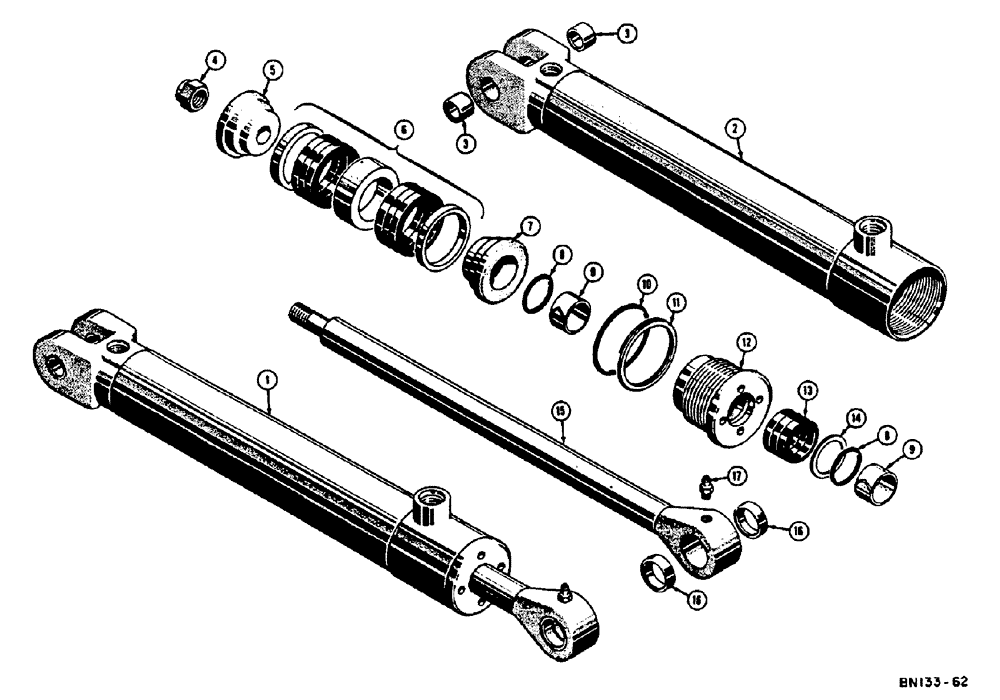

Запчасти Case 310E (083) - D27903 LOADER BUCKET HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D27903

CYLINDER - hydraulic (2-1/2" I.D. x 12-1/4" stroke), Includes: Ref. 2 - 17

2шт.

2

D27900

TUBE - cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube end

2шт.

4

D23739

LOCK NUT

NUT - (3/4" - 16 NP)

1шт.

Included in D30126 cylinder packing kit

1шт.

5

D28364

PISTON

- half piston rod nut end

1шт.

6

D28373

PACKING

- piston kit (Includes chevron packings and spacers)

1шт.

Included in D30126 cylinder packing kit

1шт.

7

NLS

NO LONGER SERVICED

PISTON - half piston rod eye end

1шт.

8

O8848AB

X

SEAL - wiper

2шт.

Included in D30126 cylinder packing kit

1шт.

9

D27705

WIPER

- piston rod

2шт.

Included in D30126 cylinder packing kit

1шт.

10

O10984AB

X

SEAL - gland

1шт.

Included in D30126 cylinder packing kit

1шт.

11

D27856

RING

- backup gland seal

1шт.

Included in D30126 cylinder packing kit

1шт.

12

D27854

GLAND

- packing

1шт.

13

D28493

X

SEAL - piston rod

1шт.

Included in D30126 cylinder packing kit

1шт.

14

D28497

RING

- backup piston rod seal

1шт.

Included in D30126 cylinder packing kit

1шт.

15

D27896

ROD - piston (1-1/4" dia.), Includes: Ref. 16

1шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight (1/8" NPT)

1шт.
