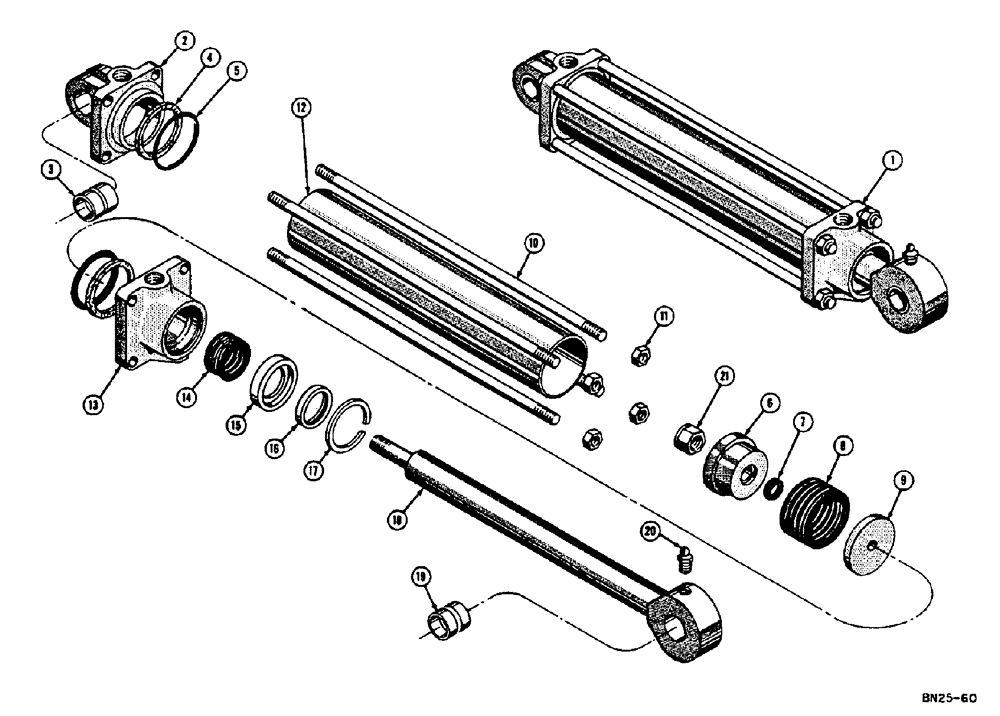

Запчасти Case 310E (082) - D24461 LOADER BUCKET HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D24461

CYLINDER - hydraulic (2-1/2" I.D. x 12-1/4" stroke), Includes: Ref. 2 - 21

2шт.

2

D25463

END - cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

4

D24985

RING

leather backup

2шт.

Included in D30135 cylinder packing kit

1шт.

5

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL -

2шт.

Included in D30135 cylinder packing kit

1шт.

6

D23738

BLOCK

PISTON - cylinder

1шт.

7

O3522CK

X

SEAL

1шт.

Included in D30135 cylinder packing kit

1шт.

8

17598

PACKING

- piston

1шт.

Included in D30135 cylinder packing kit

1шт.

9

30630

CARTRIDGE

WASHER - piston packing

1шт.

10

D25397

ROD - tie

4шт.

11

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

4шт.

12

D25940

TUBE - cylinder

1шт.

13

17592

CAP - end cylinder

1шт.

14

17597

PACKING

- piston rod

1шт.

Included in D30135 cylinder packing kit

1шт.

15

D23933

GLAND

- wiper ring

1шт.

Included in D30135 cylinder packing kit

1шт.

16

D23962

SEAL

- wiper

1шт.

Included in D30135 cylinder packing kit

1шт.

17

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , wiper seal 2.125", Int, #212

1шт.

Included in D30135 cylinder packing kit

1шт.

18

D25948

ROD - piston (1-1/4" dia.), Includes: Ref. 19

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight (1/8" NPT)

1шт.

21

D23739

LOCK NUT

NUT - (3/4" - 16 NP)

1шт.
