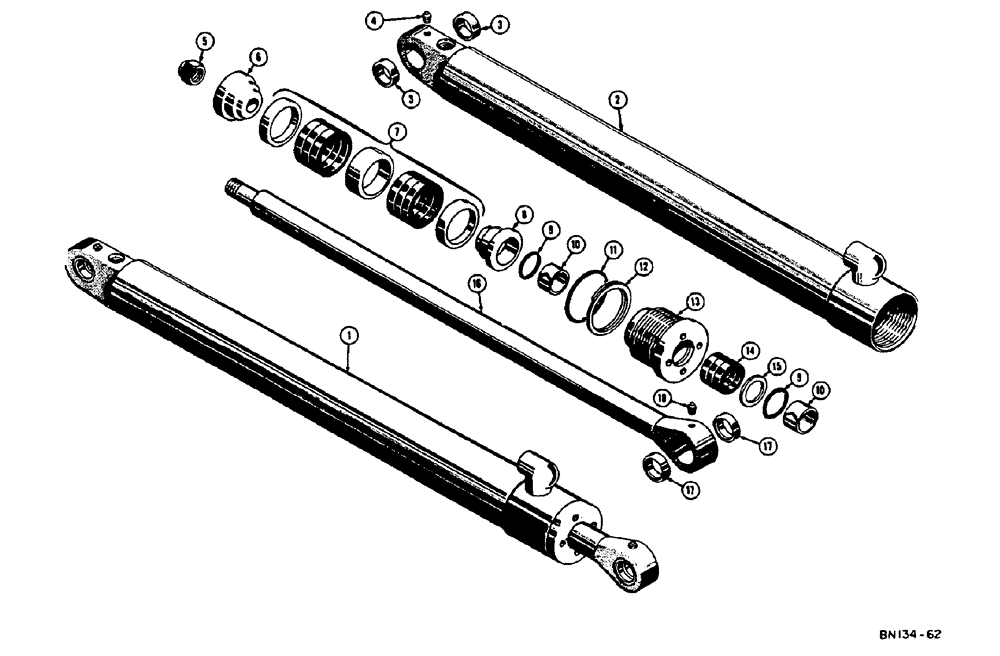

Запчасти Case 310E (081) - D27929 LOADER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D27929

SPARE PART CYLINDER - hydraulic (3-1/2" I.D. x 27-1/4" stroke), Includes: Ref. 2 - 18

2шт.

2

D28380

TUBE - cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

cylinder tube end

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

5

131-19

LOCK NUT,1"-14, GB

lock (1" - 14 NF)

1шт.

Included in D30132 cylinder packing kit

1шт.

6

D28367

PISTON

half piston rod nut end

1шт.

7

D28375

PACKING

piston kit (Includes chevron packings and spacers)

1шт.

Included in D30132 cylinder packing kit

1шт.

8

D28369

PISTON

half piston rod eye end

1шт.

9

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

wiper

2шт.

Included in D30132 cylinder packing kit

1шт.

10

D27432

SHIM

piston rod

2шт.

Included in D30132 cylinder packing kit

1шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

gland

1шт.

Included in D30132 cylinder packing kit

1шт.

12

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

backup gland seal

1шт.

Included in D30132 cylinder packing kit

1шт.

13

D27431

GLAND

packing

1шт.

14

D28495

PACKING

SEAL - piston rod

1шт.

Included in D30132 cylinder packing kit

1шт.

15

D28499

RING

backup piston rod seal

1шт.

Included in D30132 cylinder packing kit

1шт.

16

D27885

ROD

piston (1-3/4" dia.), Includes: Ref. 17

1шт.

17

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

piston rod

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
