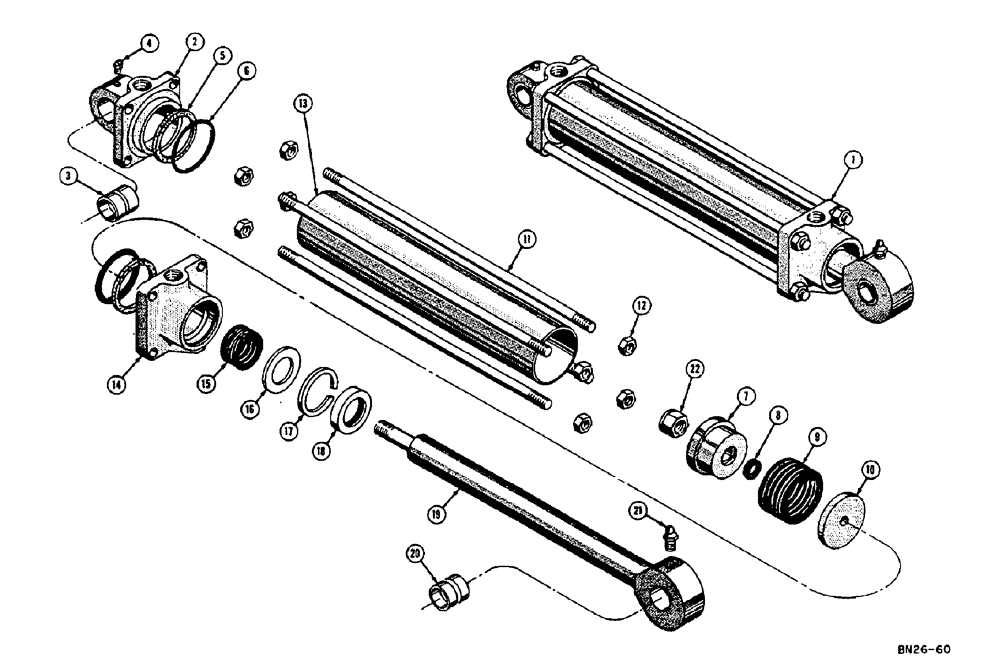

Запчасти Case 310E (080) - D26083 LOADER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D26083

CYLINDER - hydraulic (3-1/2" I.D. x 27-1/4" stroke), Includes: Ref. 2 - 22

2шт.

2

D20054

SPARE PART END - cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

cylinder end

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

5

D24987

RING

leather backup

2шт.

Included in D30142 cylinder packing kit

1шт.

6

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

2шт.

Included in D30142 cylinder packing kit

1шт.

7

D23736

SPARE PART cylinder

1шт.

8

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

Included in D30142 cylinder packing kit

1шт.

9

17578

PACKING

piston

1шт.

Included in D30142 cylinder packing kit

1шт.

10

NLS

NO LONGER SERVICED

retainer

1шт.

11

30569

ROD

- tie

4шт.

12

131-354

LOCK NUT,1/2"-13, GA

lock (1/2" - 13 NC)

8шт.

13

30570

DRAWBAR

cylinder

1шт.

14

D25596

SPARE PART cylinder

1шт.

15

30568

PACKING

piston rod

1шт.

Included in D30142 cylinder packing kit

1шт.

16

D25043

WASHER

packing piston rod

1шт.

17

70742

WASHER

RING SNAP 2.50", Int, #250

1шт.

Included in D30142 cylinder packing kit

1шт.

18

30574

WIPER SEAL

wiper

1шт.

Included in D30142 cylinder packing kit

1шт.

19

D20031

SPARE PART piston (1-3/4" dia.), Includes: Ref. 20

1шт.

20

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

piston rod

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

131-19

LOCK NUT,1"-14, GB

lock (1" - 14 NF)

1шт.
