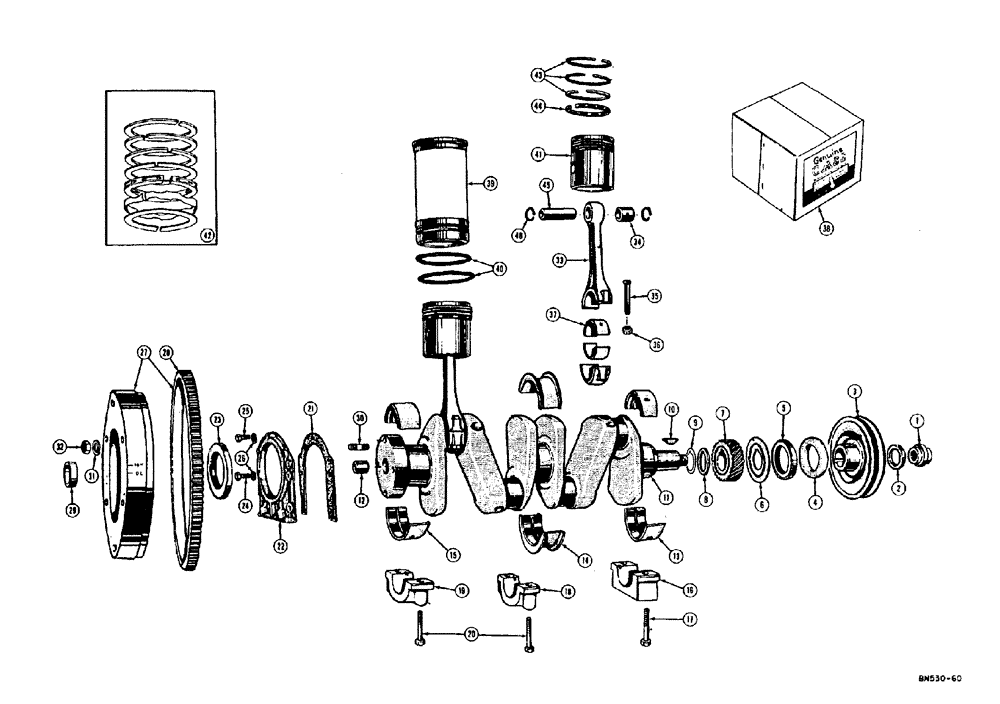

Запчасти Case 310E (003) - FLYWHEEL, CRANKSHAFT, AND PISTONS - GAS (01) - ENGINE

1

G11263

NUT

- drive pulley

1шт.

2

VT3366

X

COLLAR - drive pulley nut

1шт.

3

G11342

X

PULLEY - fan drive

1шт.

4

VT3380

SEAL - dust drive pulley

1шт.

5

VT3373

SEAL - oil crankshaft front

1шт.

6

VT3220

X

SLINGER - oil front bearing

1шт.

7

VT3225

X

GEAR - crankshaft (24T)

1шт.

8

VT3377

X

SPACER - crankshaft thrust

1шт.

9

VT3368

X

SHIM - crankshaft thrust (.010" thick)

1шт.

10

VT3397

KEY - pulley and gear to crankshaft (1/4" x 1-1/16") use 126-216

2шт.

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley and gear to crankshaft (1/4" x 1-1/16" )

2шт.

11

G11183

CRANKSHAFT

1шт.

12

VT3370

X

BUSHING - pilot crankshaft

1шт.

13

G37043

KIT

LINERS - crankshaft front bearing top and bottom half (Standard)

1шт.

G37044

KIT

LINERS - crankshaft front bearing top and bottom half (.002" undersize)

1шт.

G37045

KIT

LINERS - crankshaft front bearing top and bottom half (.020" undersize)

1шт.

G37046

KIT

LINERS - crankshaft front bearing top and bottom half (.040" undersize)

1шт.

14

G37047

KIT

LINERS - crankshaft center bearing top and bottom half (Standard)

1шт.

G37048

KIT

LINERS - crankshaft center bearing top and bottom half (.002" undersize)

1шт.

G37049

KIT

LINERS - crankshaft center bearing top and bottom half (.020" undersize)

1шт.

G37050

KIT

LINERS - crankshaft center bearing top and bottom half (.040" undersize)

1шт.

15

G37051

KIT

LINERS - crankshaft rear bearing top and bottom half (Standard)

1шт.

G37052

KIT

LINERS - crankshaft rear bearing top and bottom half (.002" undersize)

1шт.

G37053

KIT

LINERS - crankshaft rear bearing top and bottom half (.020" undersize)

1шт.

G37054

KIT

LINERS - crankshaft rear bearing top and bottom half (.040" undersize)

1шт.

16

G2035

CAP

- crankshaft front bearing

1шт.

17

G49059

BOLT

- place oil pump and front bearing cap (1/2" x 4-3/4")

2шт.

18

G2036

CAP

- crankshaft center bearing

1шт.

19

G2037

CAP

- crankshaft rear bearing

1шт.

20

G49037

BOLT

- place center and rear bearing caps (1/2" x 3")

4шт.

21

G46802

GASKET

- retainer rear oil seal

1шт.

22

G2017

RETAINER

- rear oil seal crankshaft

1шт.

23

G13811

RUBBER SEAL

SEAL - crankshaft rear (Single lip) when stock is exhausted order G13824

1шт.

G13824

RUBBER SEAL

SEAL - oil crankshaft rear (Double lip) see G13811

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

25

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

27

G11904

FLYWHEEL - 11" clutch (Original equipment in engines up to engine serial #2000168) includes ref #

1шт.

G37091

FLYWHEEL - 10" clutch (Original equipment in engines serial #2000168 and after) see G11904, Includes: Ref. 28 and 29

1шт.

28

G11710

GEAR

- ring flywheel (135T)

1шт.

29

VT3093

X

BEARING - pilot flywheel

1шт.

30

VT4513

X

STUD - flywheel to crankshaft (7/16" x 1-3/4")

4шт.

31

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

32

25-117

NUT,7/16"-20, G5

- hex (7/16" - 20 NF)

4шт.

33

G11592

EXCHANGE CONROD

ROD - complete

4шт.

G11955

KIT

- connecting rod bushing, Includes: Ref. 34

1шт.

34

G49652

BUSHING,21.18mm ID x 23.13mm OD x 27.94mm L

- connecting rod (Use G11955)

4шт.

35

G11701

BOLT

- connecting rod cap

2шт.

36

G49060

NUT

- connecting rod cap bolt

2шт.

37

G11818

LINERS - connecting rod bearing top and bottom half (Standard) when stock is exhausted order G11982

4шт.

G11982

KIT

LINERS - connecting rod bearing top and bottom half (Standard) see G11818

4шт.

G11819

LINERS - connecting rod bearing top and bottom half (.002" undersize) when stock is exhausted orde

4шт.

G11983

KIT

LINERS - connecting rod bearing top and bottom half (.002" undersize) see G11819

4шт.

G11820

LINERS - connecting rod bearing top and bottom half (.020" undersize) when stock is exhausted orde

4шт.

G11984

KIT

LINERS - connecting rod bearing top and bottom half (.020" undersize) see G11820

4шт.

G11822

LINERS - connecting rod bearing top and bottom half (.040" undersize) when stock is exhausted, ord

4шт.

G11985

LINERS - connection rod bearing top and bottom half (.040" undersize) see G11822

4шт.

38

G11007

SLEEVE ASSY

KIT - piston, Includes: Ref. 39 - 46

1шт.

39

G1061

SLEEVE

- cylinder (3-3/8" bore)

4шт.

40

VT3375

X

SEAL - "o" ring cylinder sleeve (Use G46909)

8шт.

G46909

O-RING,3.112" ID x 3.344" OD

SEAL - "o" ring, cylinder sleeve

8шт.

41

G1060

PISTON

- 3-3/8" bore

4шт.

42

G11116

PISTON RING SET

KIT - piston ring (2 in 1 chrome), Includes: Ref. 43 and 44

1шт.

43

G1062

OIL SEAL

RING - piston compression

12шт.

44

G1063

OIL SEAL

RING - piston oil control

4шт.

G11925

PISTON PIN

KIT - piston wrist pin and retaining ring, Includes: Ref. 45 and 46

1шт.

45

G10233

PIN

- piston wrist (Use G11925)

4шт.

46

VT3363

X

RING - retaining piston wrist pin

8шт.
