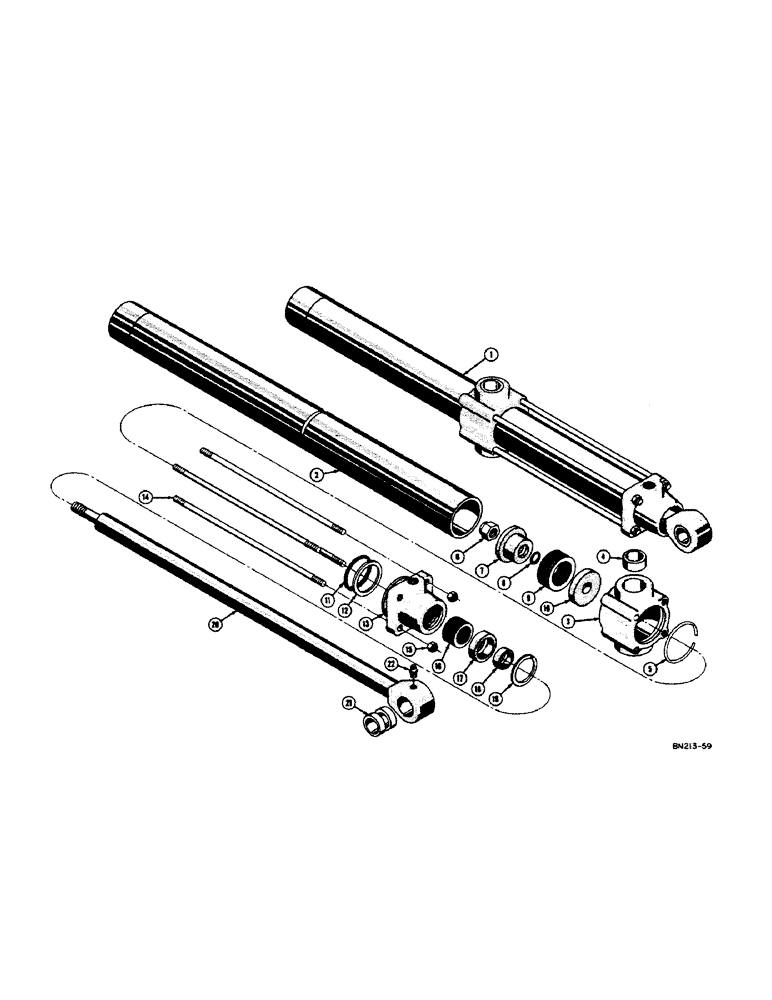

Запчасти Case 310D (142) - D25936 AND D25937 DOZER LIFT HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

1

D25936

CYLINDER - dozer lift, hydraulic (L.H.)

1шт.

D25937

CYLINDER - dozer lift, hydraulic (R.H.)

1шт.

2

D24520

TUBE AND END CAP - cylinder

1шт.

3

D25935

TRUNNION - cylinder

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

5

D23373

SNAP RING - trunnion

1шт.

6

D23739

LOCK NUT

NUT - lock, piston rod (3/4 - 16 NF)

1шт.

7

D23738

BLOCK

PISTON - cylinder

1шт.

8

03522CK

"O" RING - seal

1шт.

9

17598

PACKING

- piston

1шт.

10

30630

CARTRIDGE

WASHER - piston packing

1шт.

11

86982912

O-RING

"O" RING - seal

1шт.

12

D24985

RING

- leather backup

1шт.

13

30628

CAP - cylinder end

1шт.

14

D24521

ROD - tie

4шт.

15

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8 - 16 NC)

4шт.

16

17597

PACKING

- piston rod

1шт.

17

D23933

GLAND

- wiper ring

1шт.

18

D23962

SEAL

- wiper, piston rod

1шт.

19

86982912

O-RING

Ring, Snap, 2.125", Int, #212, seal, piston rod

1шт.

20

D24531

ROD - piston

1шт.

21

D24515

BUSHING - piston rod

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.
