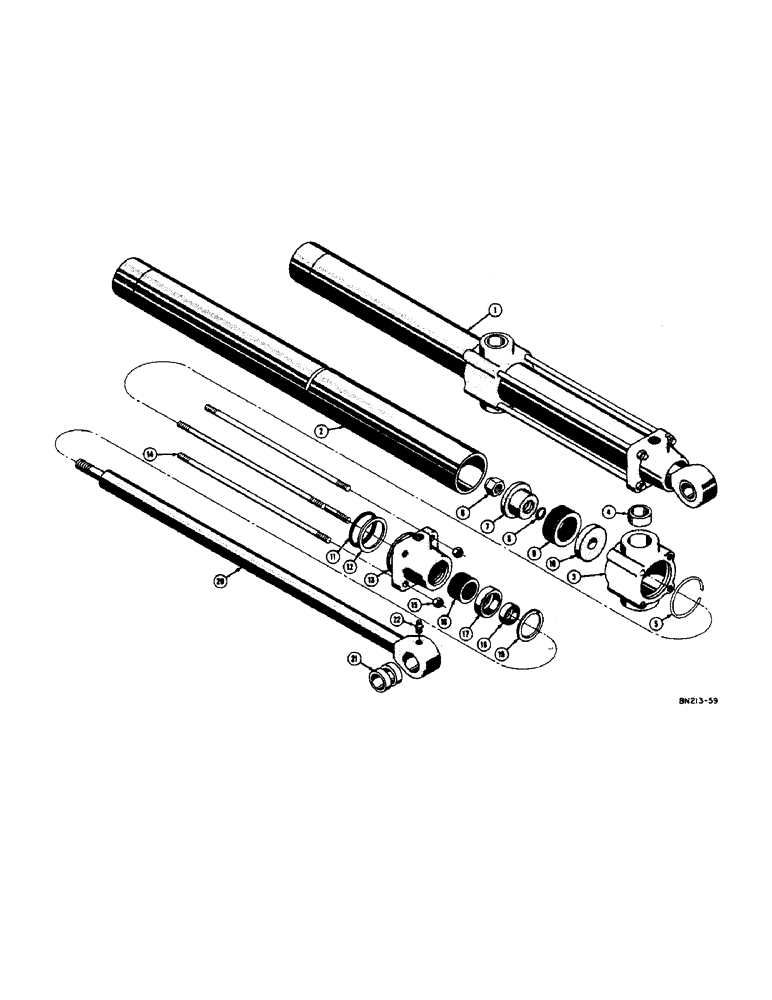

Запчасти Case 310D (142[1]) - D25699 AND D25700 DOZER LIFT HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

1

D25699

CYLINDER - dozer lift, hydraulic (L.H.)

1шт.

D25700

CYLINDER - dozer lift, hydraulic (R.H.)

1шт.

2

D25747

TUBE AND END CAP - cylinder

1шт.

3

D25935

TRUNNION - cylinder

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

5

D23373

SNAP RING - trunnion

1шт.

6

D23739

LOCK NUT

NUT - lock, piston rod (3/4 - 16 NF)

1шт.

7

D23738

BLOCK

PISTON - cylinder

1шт.

8

03522CK

"O" RING - seal

1шт.

9

17598

PACKING

- piston

1шт.

10

30630

CARTRIDGE

WASHER - piston packing

1шт.

11

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

"O" RING - seal

1шт.

12

D24985

RING

- leather backup

1шт.

13

30628

CAP - cylinder end

1шт.

14

D25745

ROD - tie

4шт.

15

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8 - 16 NC)

4шт.

16

17597

PACKING

- piston rod

1шт.

17

D23933

GLAND

- wiper ring

1шт.

18

D23962

SEAL

- wiper, piston rod

1шт.

19

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

20

D25749

ROD - piston

1шт.

21

(Not used)

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) 90º, 1/8" NPT x .84" lg

1шт.
