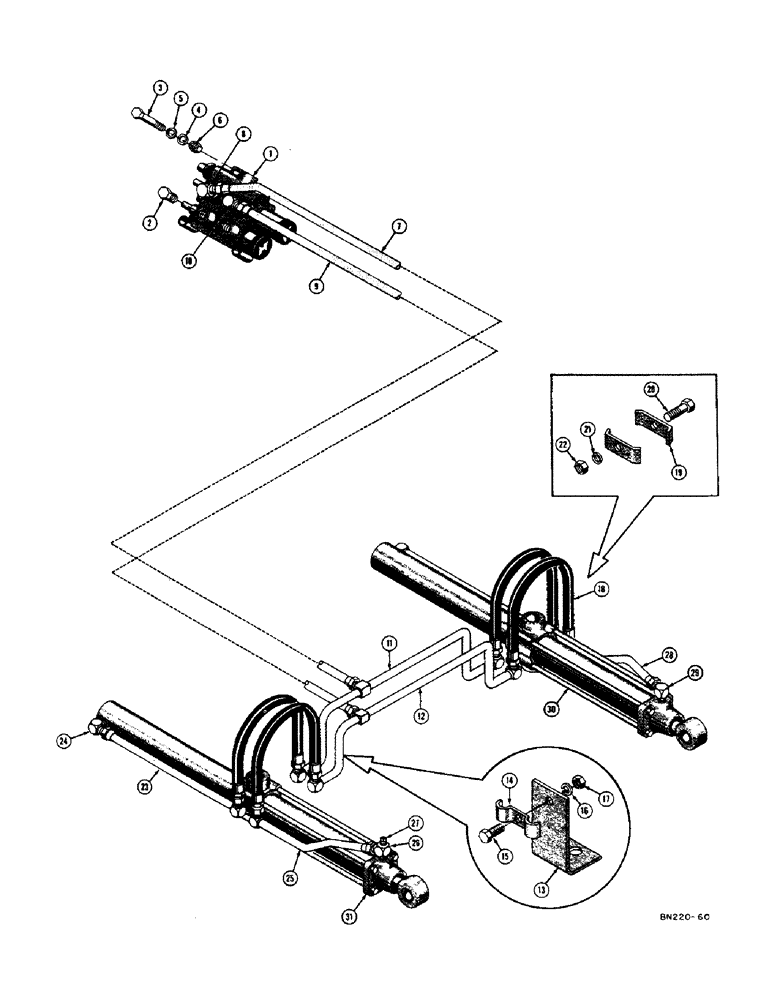

Запчасти Case 310D (140) - MECHANICAL DOZER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25450

VALVE - hydraulic control (See Figure 84 for breakdown)

1шт.

2

86512512

PLUG,7/8" - 14 ORB

Pipe, 5/8 JIC Hex Hd, 7/8"-14 ORB

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

3

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

4

95-6

WASHER,3/8"

- standard wrot () 3/8"

3шт.

5

92-6

LOCK WASHER,3/8"

3шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

3шт.

7

D25582

TUBE - left rear valve port to rear manifold tube

1шт.

8

D25698

X

ELBOW - 90 degree male, adjustable (Extra long) (5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

9

D25580

TUBE - left front valve port to front manifold tube

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree male, adjustable (5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

11

D25591

TUBE - manifold, rear (Up to serial no. 4037858)

1шт.

D26793

TUBE - manifold, rear (Serial no. 4037858 and after)

1шт.

12

D25576

TUBE - manifold, front (Up to serial no. 4037858)

1шт.

D26794

TUBE - manifold, front (Serial no. 4037858 and after)

1шт.

13

D25738

BRACKET - tube clamp (Mounted to outer race trunnion plug)

2шт.

14

17179

CLAMP - tube

2шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

18

D25670

FLEXIBLE HOSE

HOSE - manifold to lift cylinder (1/2" I.D. x 7/8" O.D. x 26") (Up to serial no. 4037858)

4шт.

D26792

HOSE - manifold tube to lift cylinder (1/2" I.D. x 7/8" O.D. x 26") (Serial no. 4037858 and after)

4шт.

19

31665

COLLAR CLAMP

PLATE - clamp

4шт.

20

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

23

D25574

TUBE - hose to rear cylinder port

2шт.

24

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

2шт.

25

D25570

TUBE

- hose to R.H. lift cylinder front port

1шт.

26

33888

TEE - special (1/8" NPT female x 1/2" NPT male x 5/8" JIC male)

1шт.

27

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT square head

1шт.

28

D25572

TUBE - hose to L.H. lift cylinder front port

1шт.

29

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

30

D25936

CYLINDER - dozer lift, hydraulic (L.H.) See Figure 142 for breakdown

1шт.

31

D25937

CYLINDER - dozer lift, hydraulic (R.H.) See Figure 142 for breakdown

1шт.
