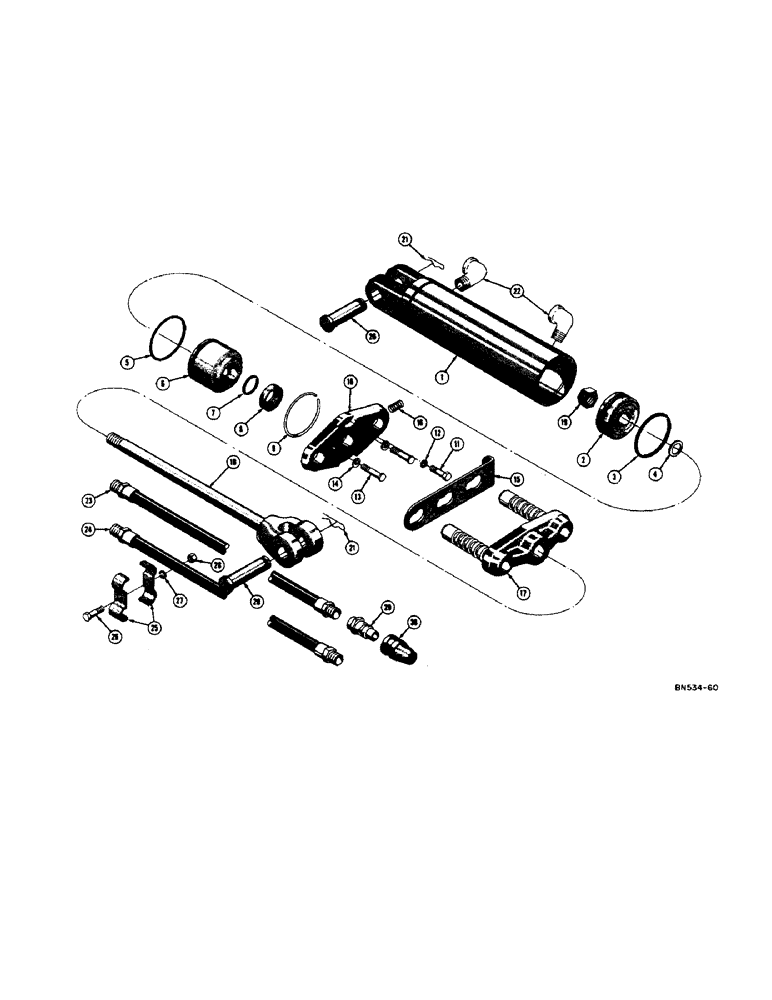

Запчасти Case 310D (132) - B3785AA REMOTE HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

B3785AA

CYLINDER - remote, hydraulic (3-1/4" x 8")

1шт.

1

4246AA

TUBE AND CAP - cylinder

1шт.

2

6243A

PISTON - cylinder

1шт.

3

08342AB

"O" RING - seal, piston

1шт.

4

08345AB

GASKET - piston rod

1шт.

5

08347AB

"O" RING - seal, head

1шт.

6

6187A

HEAD - cylinder, inner

1шт.

7

08346AB

"O" RING - seal, piston rod

1шт.

8

03869AB

SEAL - wiper, piston rod

1шт.

9

09303AB

SNAP RING - cylinder head

1шт.

10

08354AB

GUIDE - limit stop pin

1шт.

11

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16 - 18 NC x 1-1/4

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

08601AB

SCREW - stop latch

2шт.

14

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

15

3859AA

X

LATCH - limit stop

1шт.

16

08602AB

SPRING - limit stop latch

1шт.

17

3756AA

STOP AND PIN - limit

1шт.

18

4417AA

ROD - piston

1шт.

19

131-369

LOCK NUT,7/8"-14, GA

NUT - lock (7/8 - 14 NF)

1шт.

20

08361AB

PIN - mounting, cylinder

2шт.

21

VC1419

X

PIN - hair pin cotter

2шт.

22

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street (1/2 NPT)

2шт.

23

A20816

HOSE

- coupling to remote cylinder, front (106" long)

1шт.

24

A20817

HOSE

- coupling to remote cylinder, rear (118" long)

1шт.

25

08681AB

CLAMP - hydraulic hose

2шт.

26

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

29

4025AA

X

COUPLING - pull behind, male (See Figure 130 for breakdown)

2шт.

30

4026AA

X

COUPLING - pull behind, female (See Figure 130 for breakdown)

2шт.
