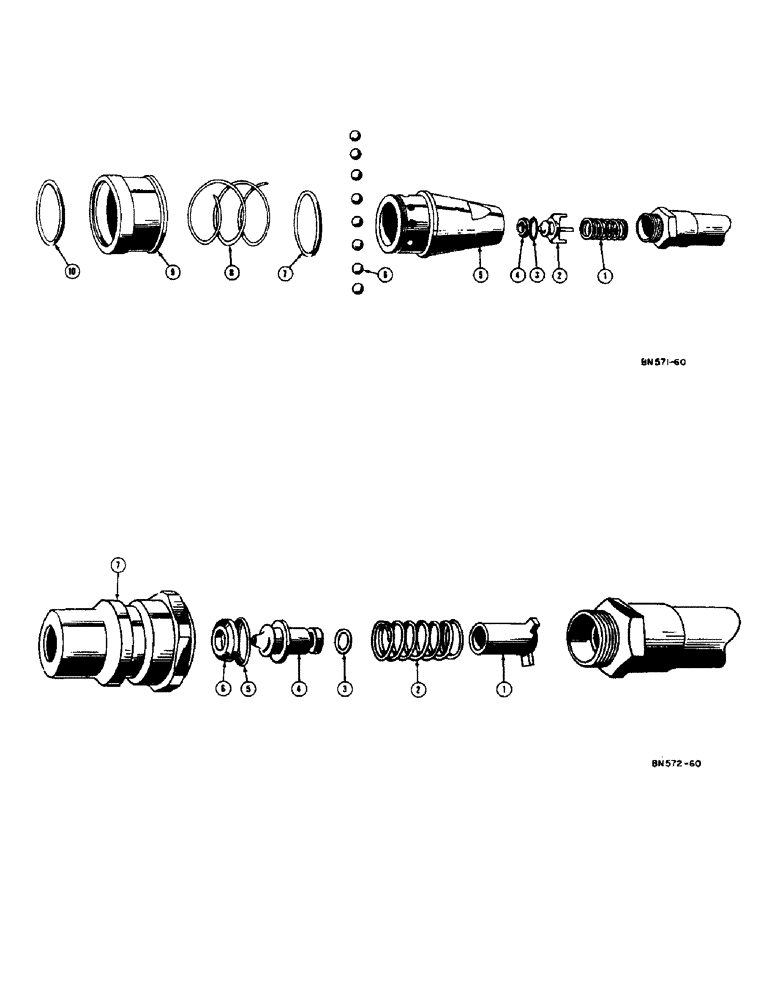

Запчасти Case 310D (130) - 4026AA PULL BEHIND COUPLING - FEMALE (07) - HYDRAULIC SYSTEM

4026AA

X

COUPLING - pull behind, female (See Figure 132 for service kit)

2шт.

1

A11324

SPRING

- coupling piston

1шт.

2

6119A

X

PISTON - socket

1шт.

3

A11325

X

RETAINER - seal

1шт.

4

08372AB

SEAL - piston

1шт.

5

08371AB

BODY - female coupling

1шт.

6

08635AB

BALL - steel, socket locking (1/4" dia.)

8шт.

7

08377AB

"O" RING - socket body

1шт.

8

08379AB

SPRING - ball retaining sleeve

1шт.

9

08378AB

SLEEVE - ball retaining

1шт.

10

08380AB

SNAP RING - socket rubber

1шт.

4025AA

X

COUPLING - pull behind, male (See Figure 132 for service kit), 4025AA

2шт.

1

51200858

SLEEVE

- coupling plug piston, 4025AA PULL BEHIND MALE

1шт.

2

08375AB

SPRING - piston, 4025AA PULL BEHIND COUPLING - MALE

1шт.

3

08386AB

"O" RING - piston sleeve, 4025AA PULL BEHIND COUPLING - MALE

1шт.

4

08859AB

PISTON - coupling plug, 4025AA PULL BEHIND MALE

1шт.

5

A11325

X

RETAINER - seal, 4025AA PULL BEHIND COUPLING - MALE

1шт.

6

08372AB

SEAL - piston, 4025AA PULL BEHIND COUPLING - MALE

1шт.

7

08381AB

BODY - male plug coupling, 4025AA PULL BEHIND

1шт.

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

PLUG - adapter to connect Case hydraulic hose to 1/2" female pipe connection (Has 1/2" male P.T. on one end and 7/8" - 18 NF female thread on the other end.) PULL BEHIND COUPLING

1шт.

09466AB

PLUG - adapter to adapt Case pull behind couplings to hydraulic hose lines having 1/2" P.T. (Has 1/2" female P.T. on one end and 7/8" - 18 NF male on the other end.)

1шт.
