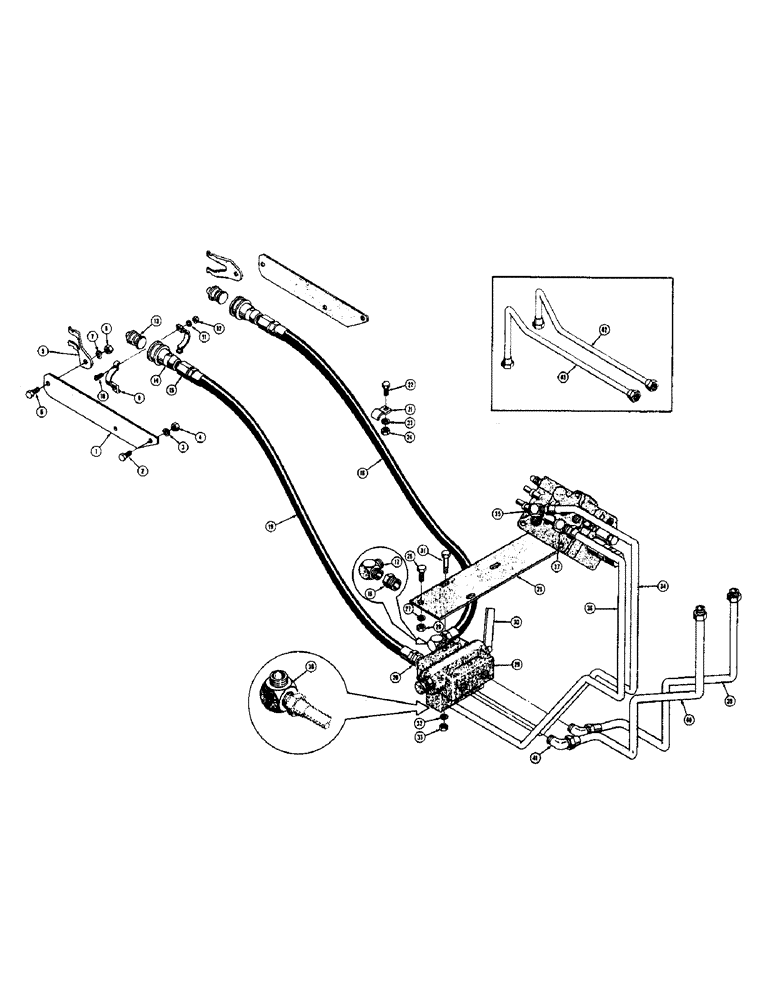

Запчасти Case 310D (128) - PULL BEHIND HYDRAULICS (WITH LOADER OR HYDRAULIC DOZER) (07) - HYDRAULIC SYSTEM

1

38505

BRACKET - mounting

2шт.

2

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.

5

08388AB

BRACKET - mounting, pull behind coupling

2шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

9

08606AB

CLAMP - pull behind coupling

4шт.

10

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- machine, round head (#8 - 32 NC x 5/8")

4шт.

11

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

12

129-6

NUT,#8-32

4шт.

13

08652AB

PLUG - dust

2шт.

14

4026AA

X

COUPLING - female, pull behind (See Figure 130 for breakdown)

2шт.

4025AA

X

COUPLING - male, pull behind (See Figure 130 for breakdown)

2шт.

15

09466AB

ADAPTER - female (1/2" NPT female x 7/8" - 18 NF male)

2шт.

16

D20804

HOSE

- L.H. rear diversion valve port to L.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 30-1/2")

1шт.

17

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT)

1шт.

18

221-60

TUBE

BUSHING - pipe, outside hex. (3/4" NPT x 1/2" NPT)

1шт.

19

D20804

HOSE

- R.H. rear diversion valve port to R.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 30-1/2")

1шт.

20

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 3/4" NPT

1шт.

21

49789

CLAMP

- hose

1шт.

22

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 1

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28 NF)

1шт.

25

D20260

PLATE - mounting, diversion valve

1шт.

26

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

29

D26726

VALVE

- diversion (See Figure 082 for breakdown)

1шт.

30

D23698

HANDLE

LEVER - control, diversion valve

1шт.

31

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

HHCS - 3/8 - 24 NF x 2-3/4

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

34

D25763

TUBE - R.H. rear control valve port to lower L.H. diversion valve port

1шт.

35

D25698

X

ELBOW - 90 degree male, adjustable (Extra long) (5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

36

D25761

TUBE - R.H. front control valve port to lower R.H. diversion valve port

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree male, adjustable (5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

38

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 3/4" NPT)

2шт.

39

D25770

TUBE - L.H. front diversion valve port to hydraulic dozer or loader manifold

1шт.

40

D25764

TUBE - R.H. front diversion valve port to hydraulic dozer or loader manifold

1шт.

41

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (5/8" JIC x 3/4" NPT)

2шт.

42

D25766

TUBE - L.H. diversion valve outlet tube to rear dozer manifold tube (Hydraulic dozer models only)

1шт.

43

D25768

TUBE - R.H. diversion valve outlet tube to front dozer manifold tube (Hydraulic dozer models only)

1шт.
