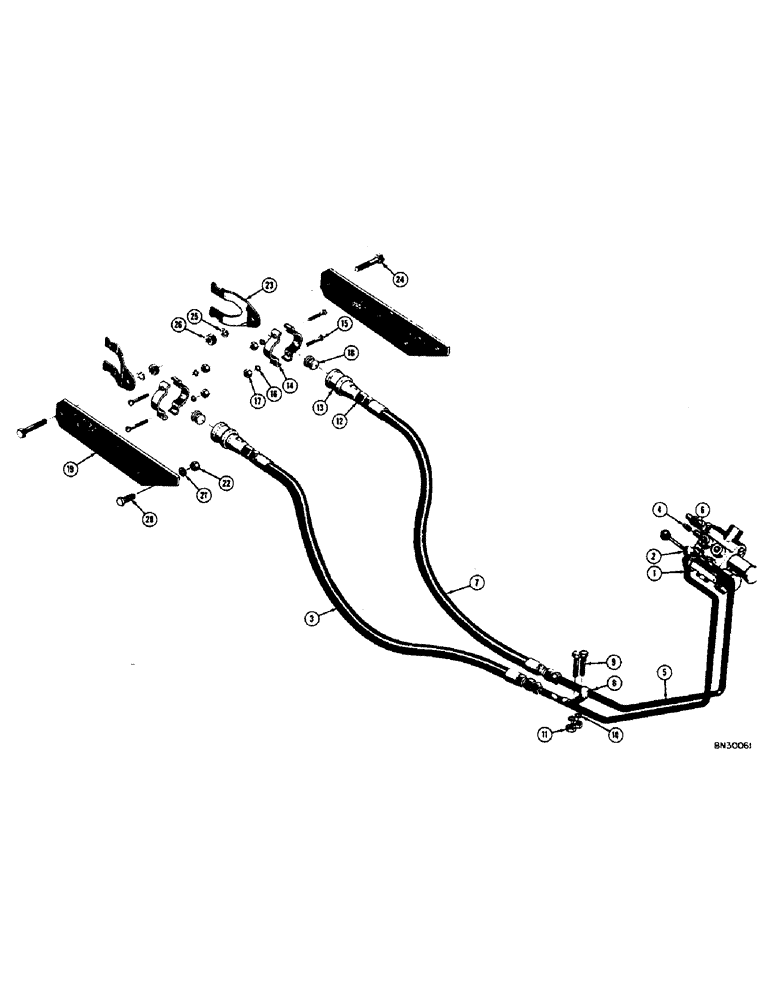

Запчасти Case 310D (126[1]) - PULL BEHIND HYDRAULICS (WITH DRAWBAR TRACTOR, THREE POINT HITCH, OR MECHANICAL DOZER) (07) - HYDRAULIC SYSTEM

1

37763

TUBE - R.H. rear control valve port to R.H. pull behind coupling, front section

1шт.

2

D25698

X

ELBOW - 90 degree male, adjustable (Extra long) (5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

3

D20804

HOSE

- R.H. rear control valve port to R.H. pull behind coupling, rear section (1/2" I.D. x 7/8" O.D. x 30-1/2")

1шт.

4

86512512

PLUG,7/8" - 14 ORB

Pipe, 5/8 JIC Hex Hd, 7/8"-14 ORB

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

5

D26309

ELBOW

TUBE - R.H. front control valve to L.H. pull behind coupling, front section

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree male, adjustable (5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

7

D20804

HOSE

- R.H. front control valve port to L.H. pull behind coupling, rear section (1/2" I.D. x 7/8" O.D. x 30-1/2")

1шт.

8

49879

CLAMP - tube

2шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

09466AB

ADAPTER - female (1/2" NPT female x 7/8" - 18 NF male)

2шт.

13

4026AA

X

COUPLING - female, pull behind (See Figure 130 for breakedown)

2шт.

4025AA

X

COUPLING - male, pull behind (See Figure 130 for breakdown) (Not shown)

2шт.

14

08606AB

CLAMP - pull behind coupling

4шт.

15

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- machine, round head (#8 - 32 NC x 5/8")

4шт.

16

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

17

129-6

NUT,#8-32

4шт.

18

08652AB

PLUG - dust

2шт.

19

08388AB

BRACKET - mounting, pull behind coupling

2шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

25-104

NUT,1/4"-20, G5

2шт.

23

38505

BRACKET - mounting

2шт.

24

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

4шт.
