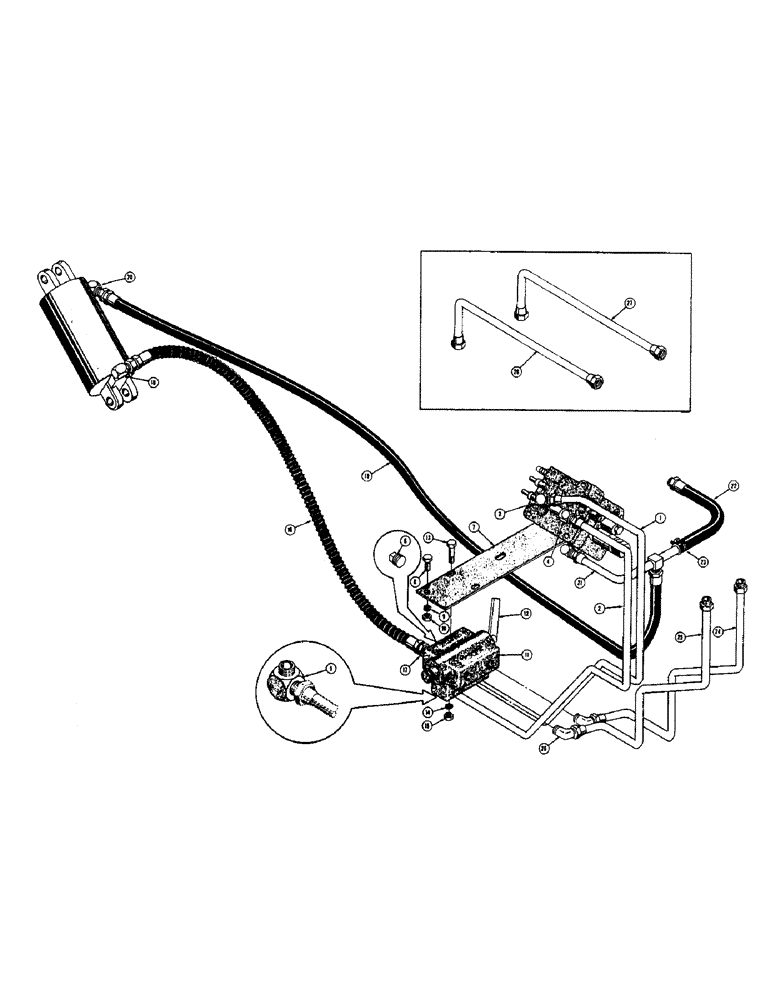

Запчасти Case 310D (124) - THREE POINT HITCH HYDRAULICS (WITH LOADER OR DOZER) (07) - HYDRAULIC SYSTEM

1

D25763

TUBE - control valve float spool rear port to diversion valve lower left port (Hydraulic dozer or loader models only)

1шт.

The float spool is the left-hand spool on all models except hydraulic dozer or loader models. The float spool is the right-hand spool on all hydraulic dozer or loader models.

1шт.

D26398

TUBE - control valve float spool rear port to diversion valve lower left port (Mechanical dozer models only)

1шт.

The float spool is the left-hand spool on all models except hydraulic dozer or loader models. The float spool is the right-hand spool on all hydraulic dozer or loader models.

1шт.

2

D25761

TUBE - control valve float spool front part to diversion valve lower right part (Hydraulic dozer or loader models only)

1шт.

The float spool is the left-hand spool on all models except hydraulic dozer or loader models. The float spool is the right-hand spool on all hydraulic dozer or loader models.

1шт.

D26396

TUBE - control valve float front port to diversion valve lower right port (Mechanical dozer models only)

1шт.

The float spool is the left-hand spool on all models except hydraulic dozer or loader models. The float spool is the right-hand spool on all hydraulic dozer or loader models.

1шт.

3

D25698

X

ELBOW - 90 degree male, adjustable (Extra long) (5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree male, adjustable (5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

5

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 3/4" NPT)

2шт.

6

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, 3/4" NPT square head

1шт.

7

D20260

PLATE - mounting, diversion valve

1шт.

8

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

11

D26726

VALVE

- diversion (See Figure 082 for breakdown)

1шт.

12

D23698

HANDLE

LEVER - control, diversion valve

1шт.

13

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

HHCS - 3/8 - 24 NF x 2-3/4

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

16

D20499

HOSE - diversion valve to lower cylinder port (1/2" I.D. x 7/8" O.D. x 33")

1шт.

17

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 3/4" NPT

1шт.

18

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- male, 45 degrees (5/8" JIC x 1/2" NPT)

1шт.

19

D20502

HOSE - upper cylinder port to filter tube (3/8" I.D. x 7/8" O.D. x 72")

1шт.

20

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- male, 45 degrees (3/8" JIC x 1/2" NPT)

1шт.

21

D26226

TUBE - control valve outlet to hose, return line

1шт.

22

D26229

HOSE - control valve outlet tube to filter (3/4" I.D. x 1-1/4" O.D. x 14")

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

24

D25770

TUBE - diversion valve left front port to loader or dozer manifold

1шт.

25

D25764

TUBE - diversion valve right front port to loader or dozer manifold

1шт.

26

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (5/8" JIC x 3/4" NPT)

2шт.

27

D25766

TUBE - L.H. diversion valve outlet tube to rear manifold tube (Dozers models only)

1шт.

28

D25768

TUBE - R.H. diversion valve outlet tube to front manifold tube (Dozer models only)

1шт.
