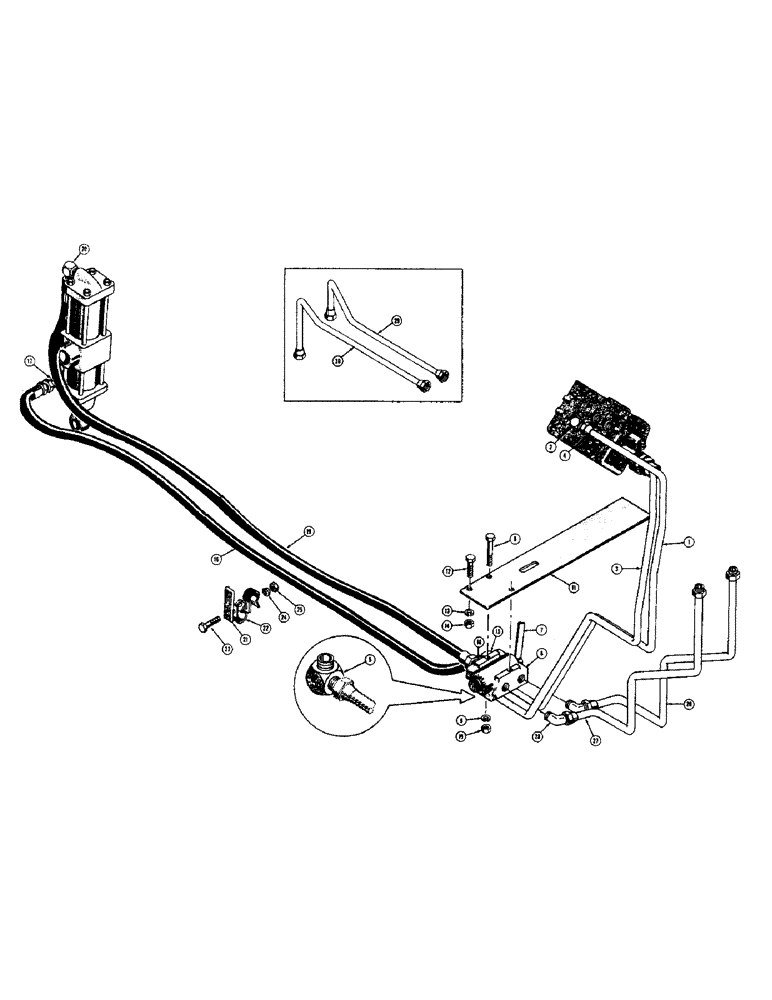

Запчасти Case 310D (116) - SCARIFIER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25763

TUBE - control valve float spool rear port to diversion valve lower left port

1шт.

The float spool is the left-hand spool on all models except hydraulic dozer or loader models. The float spool is the right-hand spool on all hydraulic dozer or loader models.

1шт.

2

D25698

X

ELBOW - 90 degree male, adjustable (Extra long) (5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

3

D25761

TUBE - control valve float spool front port to diversion valve lower right port

1шт.

The float spool is the left-hand spool on all models except hydraulic dozer or loader models. The float spool is the right-hand spool on all hydraulic dozer or loader models.

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree male, adjustable (5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (Not shown)

1шт.

5

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degree (5/8" JIC x 3/4" NPT)

2шт.

6

D26726

VALVE

- diversion (See Figure 082 for breakdown)

1шт.

7

D23698

HANDLE

LEVER - control, diversion valve

1шт.

8

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

HHCS - 3/8 - 24 NF x 2-3/4

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

11

D20260

PLATE - mounting, diversion valve

1шт.

12

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

2шт.

15

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (5/8" JIC x 3/4" NPT)

1шт.

16

D20358

HOSE

- diversion valve to lower cylinder port (1/2" I.D. x 7/8" O.D. x 46")

1шт.

17

D20168

ELBOW - special flow restrictor (Lower cylinder port)

1шт.

18

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 5/8" JIC x 3/4" NPT

1шт.

19

D20356

HOSE - diversion valve to upper cylinder port (1/2" I.D. x 7/8" O.D. x 49")

1шт.

20

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (5/8" JIC x 1/2" NPT) Upper cylinder port

1шт.

21

D20307

BRACKET - tube clamp

1шт.

22

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

2шт.

23

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24 NF)

1шт.

26

D25770

TUBE - diversion valve left front port to loader or dozer manifold

1шт.

27

D25764

TUBE - diversion valve right front port to loader or dozer manifold

1шт.

28

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (5/8" JIC x 3/4" NPT)

2шт.

29

D25766

TUBE - L.H. diversion valve tube to rear manifold tube (Dozer only)

1шт.

30

D25768

TUBE - R.H. diversion valve tube to front manifolf tube (Dozer only)

1шт.
