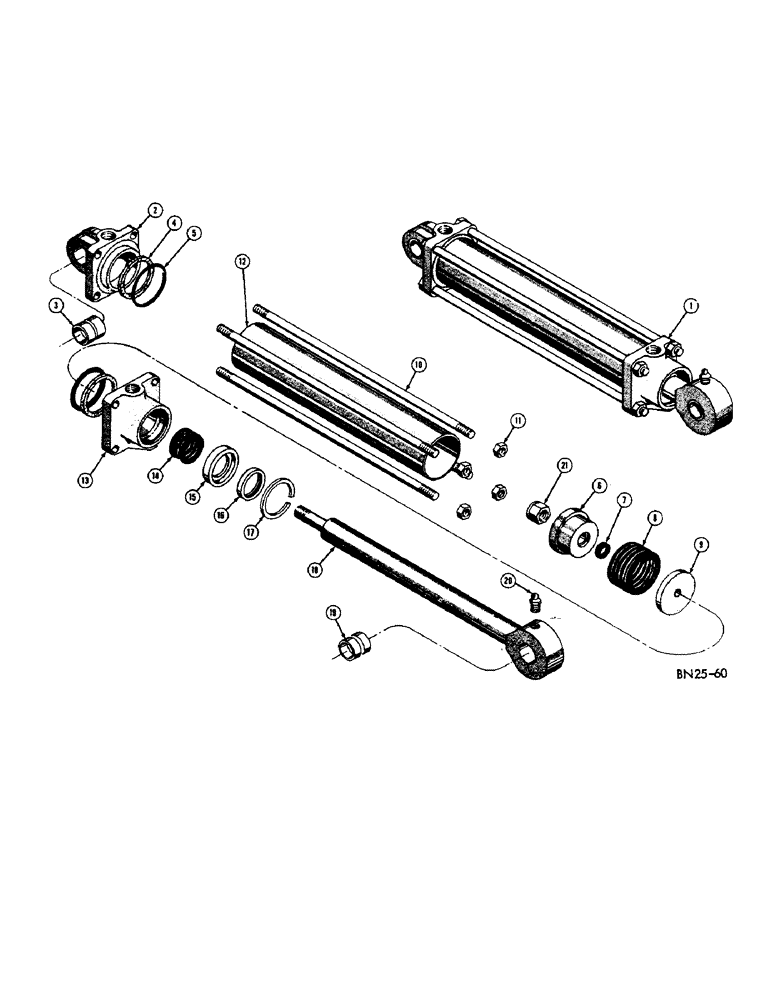

Запчасти Case 310D (106[1]) - D24461 LOADER BUCKET HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

1

D24461

CYLINDER - loader bucket, hydraulic

2шт.

2

D25463

END - cylinder

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

4

D24985

RING

- leather backup

2шт.

5

86982912

O-RING

"O" RING - seal

2шт.

6

D23738

BLOCK

PISTON - cylinder

1шт.

7

03522CK

"O" RING - seal

1шт.

8

17598

PACKING

- piston

1шт.

9

30630

CARTRIDGE

WASHER - piston packing

1шт.

10

D25397

ROD - tie

4шт.

11

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF) Tie rod with NF thread only

4шт.

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8 - 16 NC) Tie rod with NC thread only

4шт.

12

D25940

TUBE - cylinder

1шт.

13

17592

CAP - end, cylinder

1шт.

14

17597

PACKING

- piston rod

1шт.

15

D23933

GLAND

- wiper ring

1шт.

16

D23962

SEAL

- wiper, piston rod

1шт.

17

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , wiper seal 2.125", Int, #212

1шт.

18

D25948

ROD - piston

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

21

D23739

LOCK NUT

NUT - lock (3/4 - 16 NF)

1шт.
