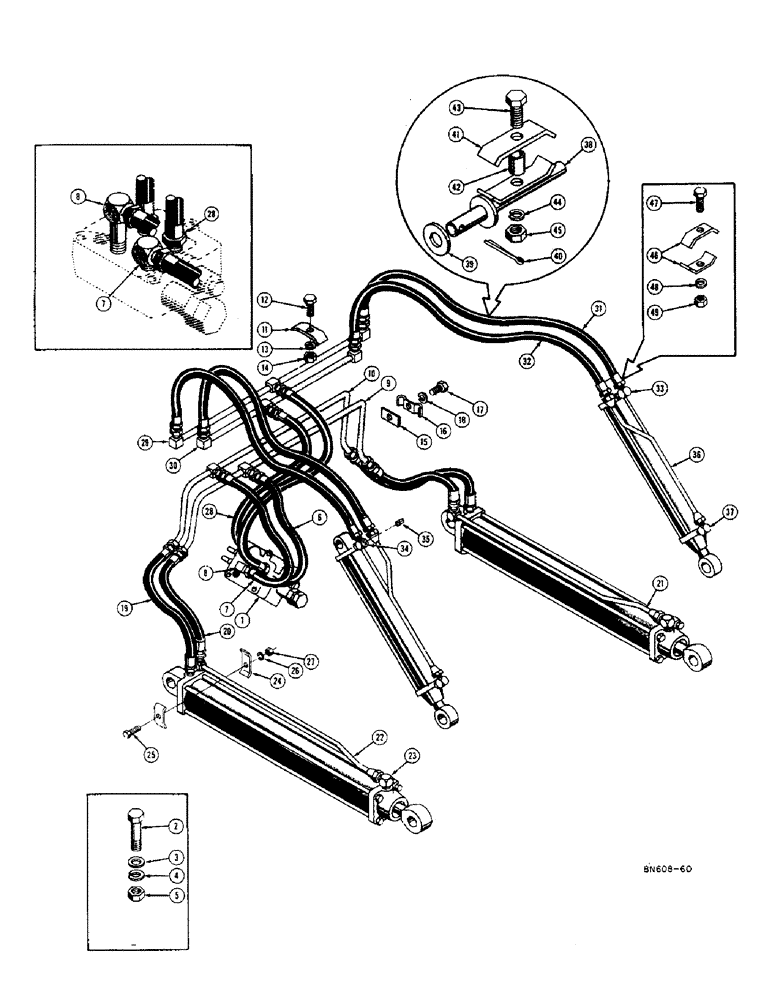

Запчасти Case 310D (102) - LOADER HYDRAULICS, LIFT CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D26491

VALVE - hydraulic control (See Figure 94 for breakdown)

1шт.

2

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

3

95-6

WASHER,3/8"

- plain (3/8)

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

3шт.

6

D27478

HOSE ASSY.

HOSE - valve to lower manifold tubes (1/2" I.D. x 7/8 O.D. x 22")

2шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable 90 degree male (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

8

D25698

X

ELBOW - adjustable 90 degree male, extra long (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

9

D25417

TUBE - manifold, lower front

1шт.

10

D25414

TUBE - manifold, lower rear

1шт.

11

32978

PLATE ASSY.

PLATE - clamp

4шт.

12

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

4шт.

15

33747

PLATE - tube clamp spacer

2шт.

16

17179

PLATE - clamp

2шт.

17

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

D27636

HOSE - lower rear manifold tube to rear cylinder port (1/2" I.D. x 7/8" O.D. x 24")

2шт.

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - straight (1/2 NPT x 5/8 JIC) (Used up to serial #3014310) (Not shown)

2шт.

20

D27635

HOSE - lower front manifold tube to front cylinder port (1/2" I.D. x 7/8" O.D. x 20")

2шт.

21

D26092

TUBE

- hose to L.H. lift cylinder front port

1шт.

22

D26093

TUBE - hose to R.H. lift cylinder front port

1шт.

D25474

X

FITTING - pressure test, front R.H. lift cylinder port (1/2 NPT x 5/8 JIC x 1/8 NPT) Early models only - use D27079, 221-2, and 218-485 (Not shown)

1шт.

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8 NPT sq. head) Early models only (Not shown)

1шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC) (1 on early model, 2 on later models)

2шт.

24

31665

COLLAR CLAMP

PLATE - clamp, on hoses (Used up to serial #3014310)

4шт.

32978

PLATE ASSY.

PLATE - clamp, tube to cylinder tie rod (Used from serial #3014310)

4шт.

25

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

28

D27484

HOSE

- valve to upper manifold tubes (1/2" I.D. x 7/8" O.D. x 19-1/2") , DUMP CYLINDER HYDRAULICS

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown) , DUMP CYLINDER HYDRAULICS

1шт.

29

D25408

TUBE - manifold, upper rear , DUMP CYLINDER HYDRAULICS

1шт.

30

D25411

TUBE - manifold, upper front , DUMP CYLINDER HYDRAULICS

1шт.

31

D27486

HOSE - upper rear manifold tube to rear cylinder port (1/2" I.D. x 7/8" O.D. x 38-3/4") , DUMP HYDRAULICS

2шт.

32

D27482

X

HOSE - upper front manifold tube to front cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 38-3/4") , DUMP HYDRAULICS

2шт.

33

D23309

ELBOW - 90 degree street, front dump cylinder port (1/2 NPT) (2 used on early models, 1 used on later models) , HYDRAULICS

2шт.

34

D27079

FITTING - pressure test, rear R.H. dump cylinder port (1/2 NPT x 1/2 NPT x 1/4 NPT) Late models only , HYDRAULICS

1шт.

35

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe (1/4 NPT sq. head) Late models only , DUMP CYLINDER HYDRAULICS

1шт.

36

D26295

TUBE

- hose to dump cylinder front port , HYDRAULICS

2шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2 NPT x 5/8 JIC) , DUMP CYLINDER HYDRAULICS

2шт.

38

D25456

BRACKET - pivot, hose , DUMP CYLINDER HYDRAULICS

2шт.

39

95-6

WASHER,3/8"

- plain (3/8), Dump cylinder hydraulics

2шт.

40

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), , Dump cylinder hydraulics 3/32" x 1"

2шт.

41

31665

COLLAR CLAMP

PLATE - clamp , DUMP CYLINDER HYDRAULICS

2шт.

42

D25938

SPACER - hose clamp , DUMP CYLINDER HYDRAULICS

2шт.

43

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4 , DUMP CYLINDER HYDRAULICS

2шт.

44

92-5

LOCK WASHER,5/16"

dump cylinder hydraulics 5/16"

2шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC) , DUMP CYLINDER HYDRAULICS

2шт.

46

31665

COLLAR CLAMP

PLATE - clamp , LOADER HYDRAULICS

4шт.

47

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4 , LOADER HYDRAULICS

2шт.

48

92-5

LOCK WASHER,5/16"

loader hydraulics 5/16"

2шт.

49

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC) , LOADER HYDRAULICS

2шт.
