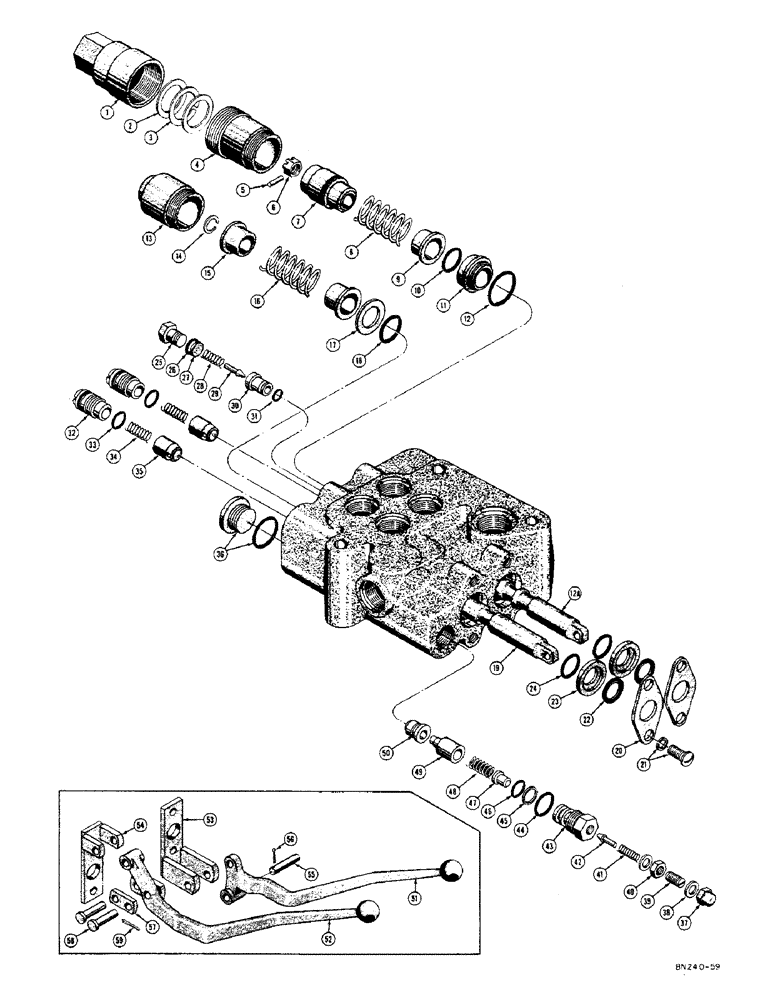

Запчасти Case 310D (090) - D25398 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D25398

VALVE - hydraulic control (Parker #VDP12D22)

1шт.

1

D26272

CAP - float spool, outer

1шт.

2

D26273

WASHER - spacer

2шт.

3

A14541

RING, SNAP

SNAP RING - wear washer

1шт.

4

D26271

ADAPTER - cap, four position spool

1шт.

D26247

SPOOL ASS'Y - four position (Color code - blue, letter code - X), Serial Range: (.73710"-.73719")

1шт.

D26248

SPOOL ASS'Y - four position (Color code - black, letter code - W), Serial Range: (.73700"-.73709")

1шт.

D26249

SPOOL ASS'Y - four position (Color code - yellow, letter code - Y), Serial Range: (.73720"-.73729")

1шт.

D26250

SPOOL ASS'Y - four position (Color code - green, letter code - Z), Serial Range: (.73730"-.73740")

1шт.

5

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

6

A14544

NUT - castle

1шт.

7

A14539

BARREL - float detent

1шт.

8

A14534

SPRING

- float detent

1шт.

9

A14538

RETAINER - spring

1шт.

10

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - seal

1шт.

11

A14537

RETAINER - "O" ring

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - seal

1шт.

12a

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

13

A14529

CAP

- spool

1шт.

D26243

SPOOL ASS'Y - three position (Color code - black, letter code - W), Serial Range: (.73700"-.73709")

1шт.

D26244

SPOOL

ASS'Y - three position (Color code - blue, letter code - X), Serial Range: (.73710"-.73719")

1шт.

D26245

SPOOL ASS'Y - three position (Color code - yellow, letter code - Y), Serial Range: (.73720"-.73729")

1шт.

D26246

SPOOL ASS'Y - three position (Color code - green, letter code - Z), Serial Range: (.73730"-.73740")

1шт.

14

A13190

X

SNAP RING - spring retainer

1шт.

15

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

16

A14534

SPRING

- spool return

1шт.

17

A14535

RETAINER

SPACER - three position spool ass'y

1шт.

18

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - seal

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

20

A14531

PLATE ASSY.

PLATE - retainer

2шт.

21

D20771

SCREW AND LOCKWASHER - retainer plate

4шт.

22

A14527

SCRAPER

RING - wiper, spool

2шт.

23

A14526

RETAINER

- wiper ring

2шт.

24

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - seal

2шт.

D26275

VALVE - overload relief, non-adjustable

1шт.

25

D26280

CAP

- overload relief valve

1шт.

27

D26281

SHIM - overload relief spring

1шт.

28

D26279

SPRING

- overload relief valve

1шт.

29

D26278

PLUNGER - overload relief valve

1шт.

30

D26276

SEAT - plunger

1шт.

31

D26277

"O" RING - seal, plunger seat

1шт.

32

A14532

CAP

- check valve

2шт.

33

A14546

O-RING

"O" RING - seal, check valve cap

2шт.

34

A14520

VALVE SPRING

SPRING - check valve

2шт.

35

A14528

POPPET -check valve

2шт.

36

A13192

X

PLUG - pipe, Allen hd. (Includes D26410 "O" ring seal)

1шт.

37

D20756

X

NUT - acorn, pilot operated relief valve

1шт.

38

D26270

WASHER, SEALING

WASHER - special

2шт.

39

82-514

SET SCREW

SCREW - adjusting, pilot operated relief valve

1шт.

40

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam

1шт.

41

D26268

SPRING

- pilot

1шт.

42

D26267

PLUNGER

- pilot

1шт.

43

D26262

CAP

- relief valve

1шт.

45

D26264

X

RING - backup

1шт.

46

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

"O" RING - seal

1шт.

47

D26266

SEAT

- pilot operater relief valve

1шт.

48

D26261

VALVE SPRING

SPRING - relief valve

1шт.

26

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal

1шт.

44

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, relief valve cap

1шт.
