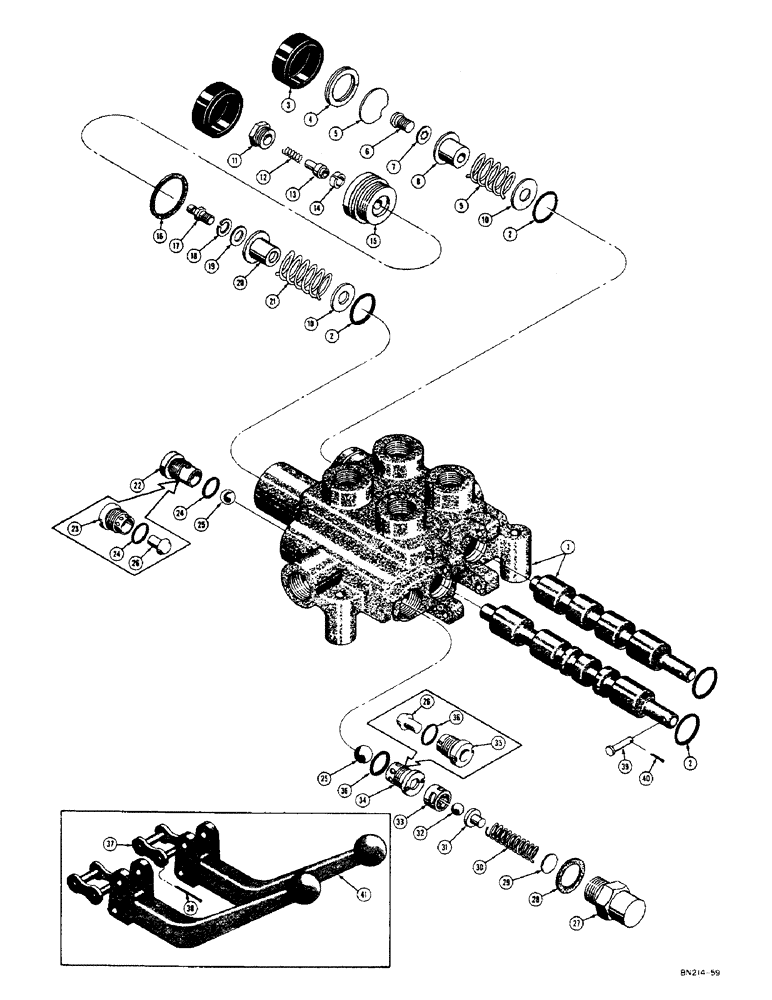

Запчасти Case 310D (084) - D25450 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D25450

VALVE - control, hydraulic (Gresen no. G-SPK-4-4 (NJ) (M135)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOLS - matched sets

1шт.

2

36642

SEAL

- "O" ring, spool

4шт.

3

36645

CAP

- rubber

2шт.

4

36633

LID

SNAP RING - stop disc

1шт.

5

663023R1

CAP

- stop

1шт.

6

36626

HOSE CLIP

BOLT - centering spring

1шт.

7

36628

LOCK WASHER

- lock

1шт.

8

36630

DRAWBAR SUPPORT

- stop

1шт.

9

36632

SPRING

- centering

1шт.

10

36650

WASHER

- stop

2шт.

11

36656

CLIP

CAP - float detent spring

1шт.

12

36658

ROD

SPRING - float detent

1шт.

13

NLS

NO LONGER SERVICED

HOLDER - finger, float detent

1шт.

14

NLS

NO LONGER SERVICED

- float detent

3шт.

15

NLS

NO LONGER SERVICED

- float detent

1шт.

16

36666

WASHER

- float detent cap

1шт.

17

D25845

ADAPTER - float detent

1шт.

18

36662

GEAR

WASHER - lock

1шт.

19

36661

SHAFT

WASHER - plain

1шт.

20

36652

COLLAR

- float spring

1шт.

21

D32602

VALVE SPRING

- float centering

1шт.

22

D23929

PLUG

- relief valve (Used with check ball) See D28574

1шт.

When replacing relief valve plug or seat, check to see if relief valve has check balls or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts; however, separate component parts are not interchangeable.

1шт.

23

D28574

PLUG

- relief valve (Used with poppet) See D23929

1шт.

When replacing relief valve plug or seat, check to see if relief valve has check balls or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts; however, separate component parts are not interchangeable.

1шт.

24

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL - "O" ring, relief valve plug

1шт.

25

D23930

BALL

- check, relief valve (5/8" dia. Zytel plastic) See D28576

2шт.

When replacing relief valve plug or seat, check to see if relief valve has check balls or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts; however, separate component parts are not interchangeable.

1шт.

26

D28576

VALVE POPPET

POPPET - relief valve (See D23930)

2шт.

When replacing relief valve plug or seat, check to see if relief valve has check balls or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts; however, separate component parts are not interchangeable.

1шт.

27

D25846

BODY

- relief valve

1шт.

28

34115

GASKET

- relief valve body

1шт.

29

D25844

SHIM,.0097" Thk

Relief valve spring .0097" Thk

1шт.

30

D25841

SPRING

- relief valve

1шт.

31

D26379

GUIDE - spring

1шт.

32

A7450

X

BALL - steel, relief valve (7/16" dia.)

1шт.

33

D24392

COLLAR - seat jam, relief valve (Used with check ball) See D28575

1шт.

When replacing relief valve plug or seat, check to see if relief valve has check balls or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts; however, separate component parts are not interchangeable.

1шт.

34

D26380

SEAT

- relief valve (Used with check ball) See D28575

1шт.

When replacing relief valve plug or seat, check to see if relief valve has check balls or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts; however, separate component parts are not interchangeable.

1шт.

35

D28575

SEAT

- relief valve (Used with poppet) See D24392 and D26380

1шт.

When replacing relief valve plug or seat, check to see if relief valve has check balls or poppets before ordering replacement parts. Relief valve poppets with associated parts are interchangeable with check balls with associated parts; however, separate component parts are not interchangeable.

1шт.

36

D23928

O-RING

SEAL - "O" ring, relief valve seat

1шт.

37

36640

DRAG LINK

LINK - control, Serial Range: lever-valve

2шт.

38

132-13

PIN

- cotter, control lever link (1/16" x 1-1/2")

2шт.

39

36627

SEAT

PIN - control lever

2шт.

40

36625

X

PIN - cotter, control lever (5/64" x 1/2")

2шт.

41

D20089

LEVER - valve conrol

2шт.
