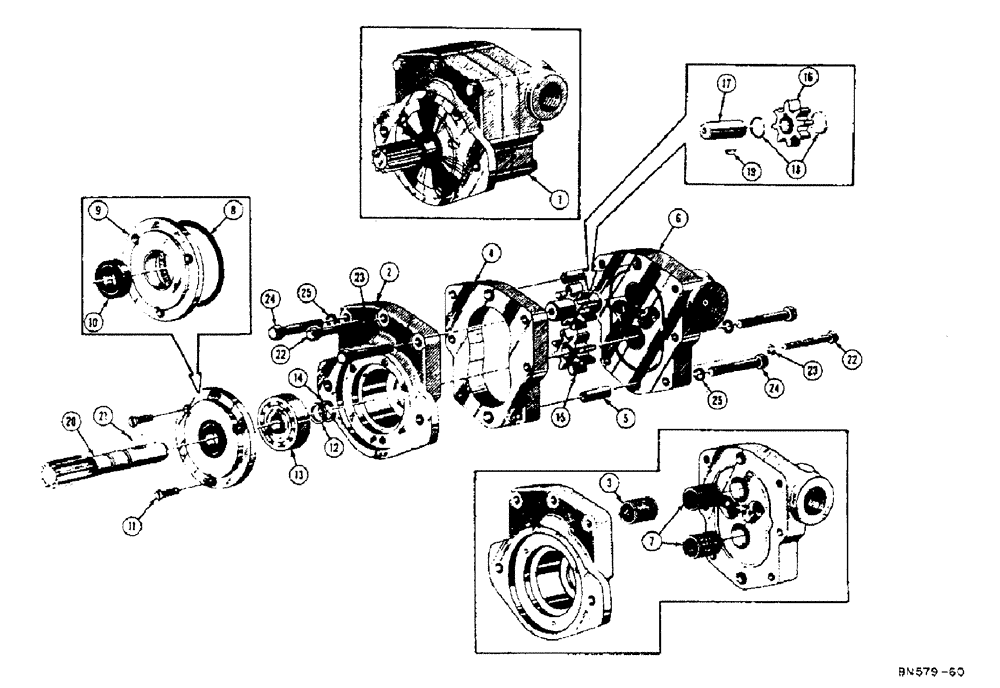

Запчасти Case 310D (082) - D25567 HYDRAULIC PUMP (15 GPM) (07) - HYDRAULIC SYSTEM

1

D25569

PUMP, HYDRAULIC

PUMP - hydraulic, 15 G.P.M (Webster #3HCS-26L)

1шт.

2

D26062

SHIN

BODY - pump

1шт.

3

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

4

34452

SPARE PART PLATE - gear

1шт.

5

NLS

NO LONGER SERVICED

PIN - dowel

2шт.

6

D26060

COVER - pump

1шт.

7

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

2шт.

8

D26065

X

"O" RING - seal

1шт.

9

D26067

SPARE PART PLATE - pilot

1шт.

10

D24047

SEAL

SEAL - oil

1шт.

11

34447

X

SCREW - flat hd. mach.

3шт.

12

14218

WASHER

WASHER - shim

1шт.

13

MT2041S

BEARING

SPARE PART BEARING - ball

1шт.

14

14217

RING

SNAP RING - bearing retaining

1шт.

5445

GEAR-SET

KIT - gear, drive and driven

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - drive (Use 5445)

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - driven (Use 5445)

1шт.

17

34451

SPARE PART SHAFT - idler

1шт.

18

D27331

RING

SNAP RING - gear retaining

2шт.

19

34455

HOOK

KEY - Woodruff

1шт.

20

D26061

SHAFT

SHAFT - pump drive

1шт.

21

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

22

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

23

92-4

LOCK WASHER,1/4"

2шт.

24

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

6шт.

25

92-5

LOCK WASHER,5/16"

6шт.
