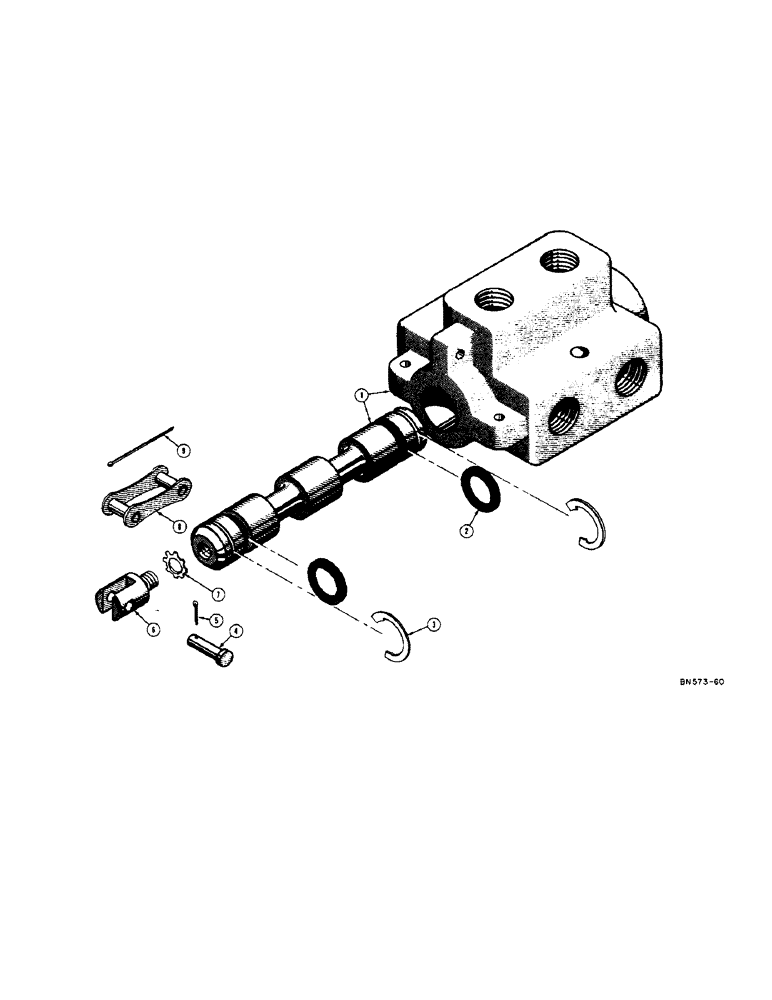

Запчасти Case 310D (082[1]) - D26726 DIVERSION VALVE (07) - HYDRAULIC SYSTEM

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set

1шт.

2

D23691

O-RING

"O" RING - seal, spool

2шт.

3

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

4

D23693

AXLE PIN

PIN - handle

1шт.

5

36625

X

PIN - cotter

1шт.

6

D23694

ADAPTER

- handle

1шт.

7

D23695

WASHER

- lock

1шт.

8

D23696

DRAG LINK

LINK - handle

1шт.

9

D23697

X

PIN - cotter, link

1шт.
