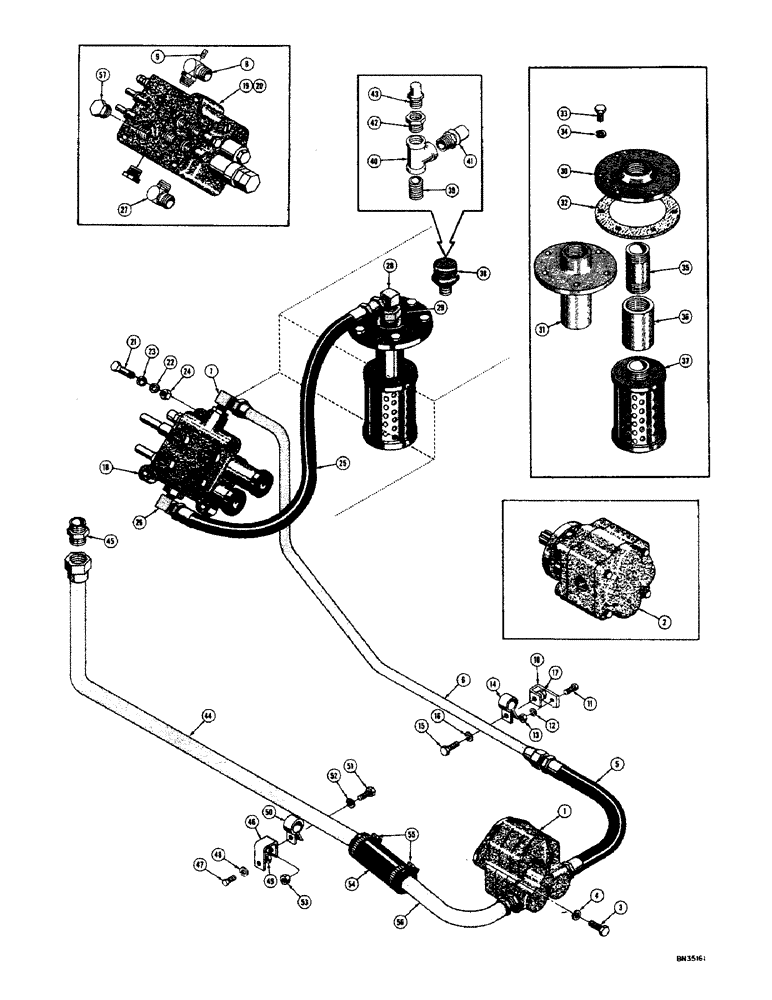

Запчасти Case 310D (076) - BASIC TRACTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25569

PUMP, HYDRAULIC

PUMP - hydraulic, 15 G.P.M. (All models except loader models) See Figure 082 for breakdown

1шт.

2

D25347

PUMP, HYDRAULIC

PUMP - hydraulic, 20 G.P.M. (All loader models only) See Figure 080 for breakdown

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(2 used with D25569 pump, 4 used with D25347 pump) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

D25130

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 14")

1шт.

6

D25158

TUBE - pump to valve inlet, rear section

1шт.

7

D25098

ELBOW - male, adjustable 90 degrees (7/8" JIC x 1" JIC) (All models except hydraulic dozer or loader models)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring (Not shown)

1шт.

8

D25135

X

ELBOW - male, adjustable 90 degrees (3/4" JIC x 1" JIC) All hydraulic dozer or loader models (Use D26683)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring (Not shown)

1шт.

8

D26683

TEE - pressure test, adjustable (3/4" JIC x 1" JIC x 1/4" NPT) All loader or hydraulic dozer models

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring (Not shown)

1шт.

9

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" NPT square head (Used with D26683 tee)

1шт.

10

37753

BUSHING

BRACKET - tube clamp (Mounts to cylinder bracket bolts on dozer models)

1шт.

11

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(All models except dozer models) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

25-1010

NUT,5/8"-11, G5

1шт.

14

D25157

CLAMP - tube

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

25-115

NUT,5/16"-24, G5

- hex (5/16"-18 NC)

1шт.

18

D25450

VALVE - control (All models except hydraulic dozer or loader models) See Figure 084 for breakdown

1шт.

19

D25451

VALVE - control (Hydraulic dozer models only) See Figure 086 for breakdown

1шт.

20

D25398

VALVE - control (Loader models only) See Figure 090 for breakdown (Use D26491)

1шт.

D26491

VALVE - control (Loader models only) See Figure 094 for breakdown (See D25398)

1шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8 - 16 NC x 2-1/2 (D25450 valve only)

3шт.

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(D25451, D25398, and D26491 valves) Hex, 3/8"-16 x 4", G5

3шт.

22

95-6

WASHER,3/8"

- standard wrot () 3/8"

3шт.

23

92-6

LOCK WASHER,3/8"

3шт.

24

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. (3/8 - 16 NC)

3шт.

25

D25942

HOSE - control valve outlet to filter (3/4" I.D. x 1-1/4" O.D. x 24-3/8")

1шт.

26

D25353

ELBOW - male, adjustable 90 degrees (7/8" JIC x 3/4" NPT) All models except hydraulic dozer or loader models

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring (Not shown)

1шт.

27

D25354

ELBOW

- male, adjustable 90 degrees (3/4" JIC x 3/4" NPT) All hydraulic dozer or loader models

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring (Not shown)

1шт.

28

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" JIC x 3/4" NPT)

1шт.

29

221-69

BUSHING

- hex. pipe, filter inlet (1-1/4" NPT x 3/4" NPT)

1шт.

30

38266

ARM

CAP - inlet, oil filter (Up to serial no. 3016026) See D26685

1шт.

31

D26685

CAP - inlet, oil filter (Serial no. 3016026 and after) See 38266

1шт.

32

36321

GASKET

- oil filter inlet cap

1шт.

33

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

6шт.

34

92-6

LOCK WASHER,3/8"

6шт.

35

221-264

PIPE,Nipple, 1 1/4" NPT x 3"

NIPPLE - pipe, 1-1/4" NPT x 3" (Used with 38266 only)

1шт.

36

221-332

COUPLING - pipe, 1-1/4" NPT (Used with 38266 only)

1шт.

37

D25664

FILTER CARTRIDGE

FILTER - hydraulic oil

1шт.

38

31543

BREATHER

FILTER - breather (See D11183)

1шт.

T14011

ELEMENT

- breather filter (Not shown)

1шт.

D11183

KIT - reservoir pressure control (See 31543)

1шт.

39

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - close pipe, 1/4" NPT x 7/8"

1шт.

40

221-431

TEE

- pipe, 1/4" NPT x 1/4" NPT x 1/8" NPT

1шт.

41

R15538

VALVE

- relief, vacuum (2 to 5 P.S.I.)

1шт.

42

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - hex. pipe, 1/4" NPT x 1/8" NPT

1шт.

43

R15536

VALVE

- relief, pressure (10 to 20 P.S.I.)

1шт.

44

D25155

TUBE - reservoir to pump, rear section

1шт.

45

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

CONNECTOR - male, 1-1/4" NPT x 1-1/4" JIC

1шт.

46

37753

BUSHING

BRACKET - tube clamp (Mounts to cylinder bracket bolts on dozer models)

1шт.

47

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(All models except dozer models) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

48

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

49

25-1010

NUT,5/8"-11, G5

1шт.

50

D25156

CLAMP

- tube

1шт.

51

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

52

92-5

LOCK WASHER,5/16"

1шт.

53

9635082

NUT,5/16" - 18, Gr 5

- (5/16 - 18 NC)

1шт.

54

D23645

HOSE

- reservoir to pump, center section (1-1/4" I.D. x 2" O.D. x 5")

1шт.

55

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

56

D25716

STEM

- hose, reservoir to pump (Front section) All models except loader models

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring (Not shown)

1шт.

D25144

STEM - hose, reservoir to pump (Front section) All loader models

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring (Not shown)

1шт.

57

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Pipe (3/4" JIC) Loader models only Hex Hd, 1 1/16"-12 ORB

2шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring (Not shown)

1шт.

D25783

PLUG - special, high pressure carry-over (R.H. rear side valve part) backhoe models only (Not shown)

1шт.

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O" ring, high pressure carry-over plug (Not shown)

1шт.
