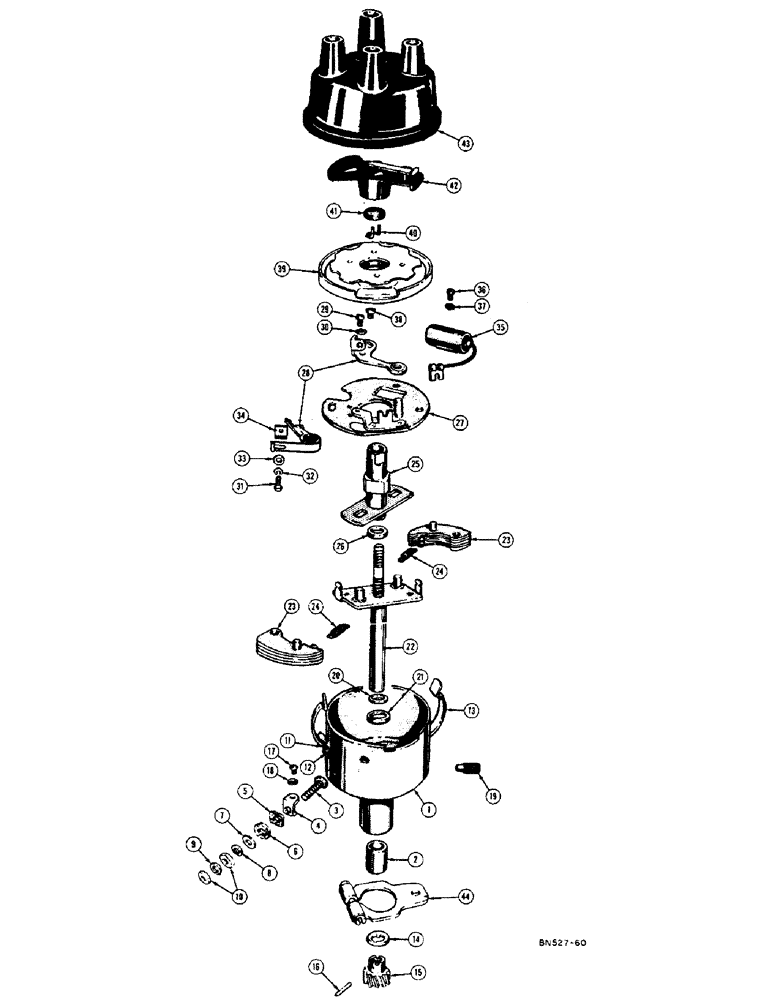

Запчасти Case 310D (032) - G11051 DISTRIBUTOR (AUTO-LITE NO. 1AD-6003-2J) (06) - ELECTRICAL SYSTEMS

G11051

DISTRIBUTOR

- (Auto-Lite no. 1AD-6003-2J)

1шт.

This part does not have to be obtained from an Auto-Lite service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from an Auto-Lite service station.

1шт.

1

IAD-2020

BASE ASS'Y - distributor

1шт.

2

IG-579A

BEARING - absorbent bronze

2шт.

3

IGL-8A

STUD - terminal, primary

1шт.

4

IAD-7

CONNECTOR - terminal stud

1шт.

5

IAD-8

INSULATION - terminal stud, inner

1шт.

IAD-9

BRACKET - mounting, breaker plate (Not shown)

2шт.

6

IAD-10

BUSHING - insulation, terminal stud

1шт.

7

IGL-9

WASHER - insulation, terminal stud

1шт.

8

8X-183A

WASHER - plain, terminal stud (No. 10)

1шт.

9

12X-196

WASHER - lock, terminal stud (No. 10)

2шт.

10

8X-173

NUT - hex., terminal stud (No. 10 - 32 NF)

2шт.

11

IAD-14

BRACKET - cap spring

2шт.

12

X525

RIVET - tubular

4шт.

13

IGZ-9

SPRING - clamp, cap

2шт.

14

IGZ-90

WASHER - thrust, driveshaft (Lower)

1шт.

IG-94

TERMINAL - high tension wire (Not shown)

5шт.

15

GE-98

GEAR - distrubutor drive

1шт.

16

SW-213

RIVET - drive gear

1шт.

17

8X-301

SCREW - round head, connector (No. 6 - 32 NC x 3/16")

1шт.

18

12X-194

WASHER - lock, terminal stud (No. 6)

1шт.

19

X-490A

OILER - distributor shaft bearing

1шт.

20

IAO-10

WASHER - thrust, driveshaft inner (Upper)

1шт.

21

IAO-11

WASHER - thrust, driveshaft outer (Upper)

1шт.

22

IGS-1180R

SHAFT - distributor drive

1шт.

23

IGC-2168R

WEIGHT - governor

2шт.

24

IGB-252S

SPRING - governor weight (Set of two)

1шт.

25

IAD-1100RK

CAM AND STOP PLATE - 4 cylinder

1шт.

IGT-70

SPRING - anti-rattle (Not shown)

1шт.

26

IGS-99

SPACER - cam

1шт.

IGS-117

WICK - felt (Not shown)

1шт.

IAD-2004

PLATE ASS'Y - complete

1шт.

27

IAD-1004

PLATE - breaker

1шт.

28

A8371

X

CONTACT SET - breaker points (Auto-Lite no. IGP-3028FS)

1шт.

This part does not have to be obtained from an Auto-Lite service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from an Auto-Lite service station.

1шт.

29

8X-884

SCREW - lock, fillister head (No. 8 - 32 NC x 3/16")

1шт.

30

8X-350

WASHER - plain (No. 8)

1шт.

31

IGC-175

SCREW - spring clamp (No. 6 - 32 NC x 5/16")

1шт.

32

12X-195

WASHER - lock (No. 6)

1шт.

33

8X-353

WASHER - plain (No. 6)

1шт.

34

IG-676

CLIP - contact arm spring

1шт.

35

A8370

PACKAGE

CONDENSER - (Auto-Lite no. IGW-3139)

1шт.

This part does not have to be obtained from an Auto-Lite service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from an Auto-Lite service station.

1шт.

36

8X-1546

SCREW - condenser, fillister head (No. 6 - 32 NC x 5/32")

1шт.

37

12X-194

WASHER - lock, condenser screw (No. 6)

1шт.

38

X2878

SCREW - fillister head, breaker plate (No. 10 - 32 NF x 5/16")

2шт.

39

IAD-2015

PLATE ASS'Y - seal

1шт.

IAD-12

WASHER - felt (Not shown)

1шт.

40

IG-680

SNAP RING - cam retaining

1шт.

41

IGH-28

WICK - felt, cam sleeve

1шт.

IGS-32

PLUG - rubber, vent hole (Not shown)

1шт.

42

A8369

ROTOR

- distributor (Auto-Lite no. IG-1657R)

1шт.

This part does not have to be obtained from an Auto-Lite service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from an Auto-Lite service station.

1шт.

43

A8368

CAP

ASS'Y - distributor (Auto-Lite no. IG-1324D)

1шт.

This part does not have to be obtained from an Auto-Lite service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from an Auto-Lite service station.

1шт.

IG-514

CONTACT - plunger (Not shown)

1шт.

IG-515A

SPRING - contact (Not shown)

1шт.

44

VTA2775

X

ARM - advance, distributor

1шт.

This part does not have to be obtained from an Auto-Lite service station. Unless otherwise indicated, the rest of the parts in this figure must be obtained from an Auto-Lite service station.

1шт.
