Запчасти Case 310D (026[1]) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

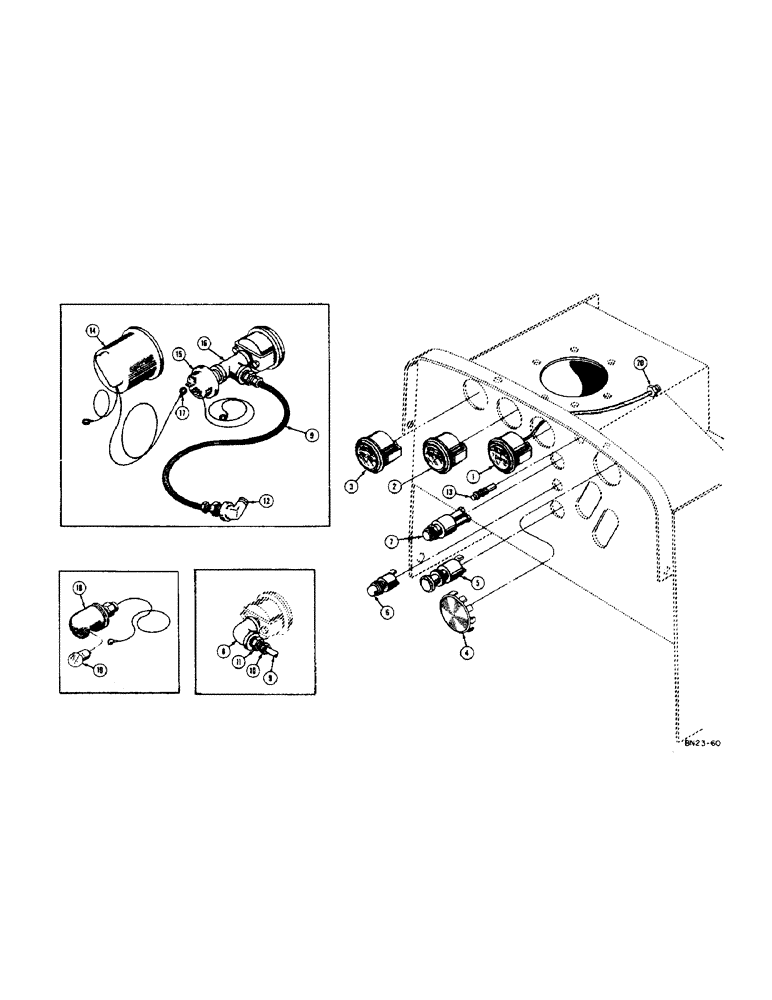

Схема запчастей Case 310D - (026[1]) - INSTRUMENT PANEL (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

11284

ELECTRICAL GAUGE

GAUGE - temperature (Includes ref. #20)

1шт.

2

10860

X

AMMETER

1шт.

3

D26894

X

GAUGE - oil pressure

1шт.

4

30842

SPARE PART

PLUG - button (2")

1шт.

5

10855

X

SWITCH - light

1шт.

6

D23216

SWITCH

- starter push button

1шт.

7

10868

LOCKSWITCH - ignition

1шт.

8

221-365

ELBOW,45 Degree, 1/8" NPT

- 45 degree female pipe, 1/8 NPT

1шт.

9

G10972

LINE

- oil pressure

1шт.

10

37388

SPRING

NUT - tube, brass

2шт.

11

37389

SPRING

CONNECTOR - tube, brass

2шт.

12

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

13

D23834

HOLDER

- fuse (Includes 1 - 25 AGC fuse)

2шт.

14

33481

X

METER - engine hour, 12 volt (Optional)

1шт.

15

D28798

SWITCH

- oil pressure, hour meter (Optional)

1шт.

16

221-421

TEE,1/8" NPT

- pipe, 1/8 NPT (Used only with hour meter)

1шт.

17

54772R2

TERMINAL CONNECTOR

TERMINAL - eyelet tye (Hour meter and pressure switch)

3шт.

18

D26513

LIGHT - dash

1шт.

19

D26704

X

BULB - dash light (Mfr. #57)

1шт.

20

D26015

FITTING

ADAPTER - temperature gauge

1шт.

Выбрано товаров: 20
