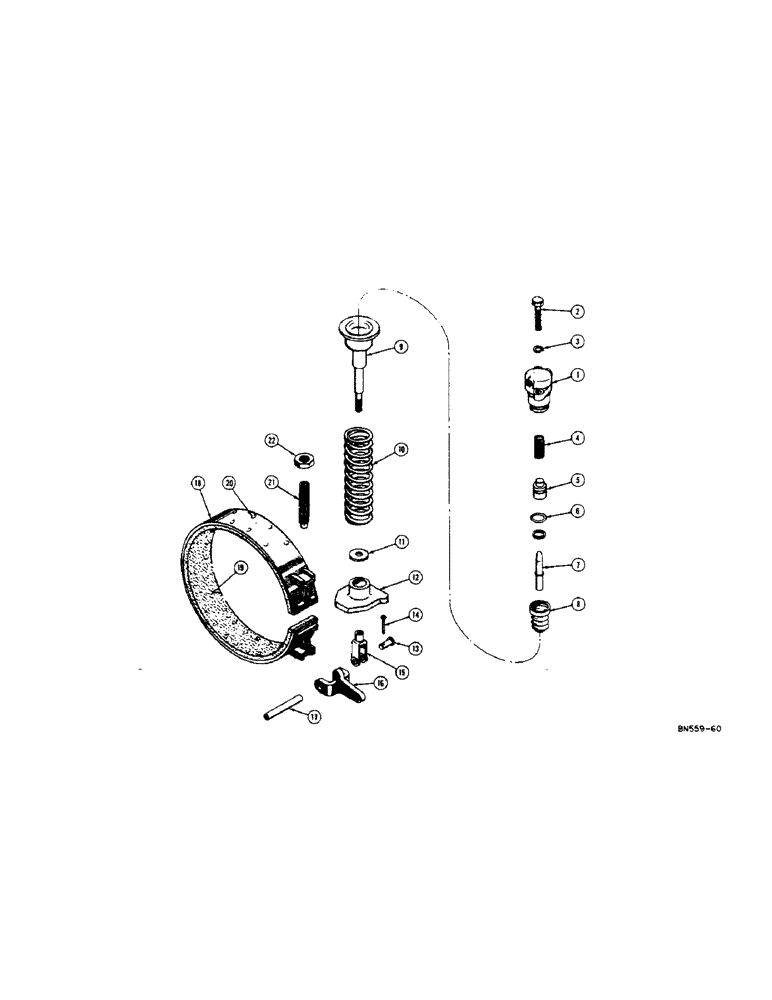

Запчасти Case 310D (160[1]) - C-12 WINCH BRAKE (05) - UPPERSTRUCTURE CHASSIS

D26579

CYLINDER - BRAKE RELEASE

1шт.

2

D26585

HHCS - 3/8 - 24 NF x 1

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

D26602

SPRING - brake release cylinder

1шт.

5

D26603

PISTON - brake release cylinder

1шт.

6

D27498

O-RING

"O" RING - seal (Includes Teflon backup ring)

1шт.

7

D26605

ROD - push, brake release cylinder

1шт.

8

D26606

BOOT - brake release cylinder

1шт.

9

D26580

ANCHOR - brake

1шт.

10

D26581

SPRING - brake anchor

1шт.

11

D26583

WASHER - brake anchor

1шт.

12

D26584

SEAT - brake anchor spring

1шт.

13

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

14

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

15

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

16

D26587

LEVER - brake

1шт.

17

D26588

PIN - brake lever

1шт.

D26589

BAND ASS'Y - brake

1шт.

18

D26607

BAND - brake

1шт.

19

D26608

LINING - brake

1шт.

20

151-155

RIVER - ctsk. hd., brass (3/16 x 3/8)

34шт.

21

D26582

SCREW - set, socket (Full dog point) (3/4 - 16 NF x 4)

1шт.

22

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4 - 16 NF)

1шт.
