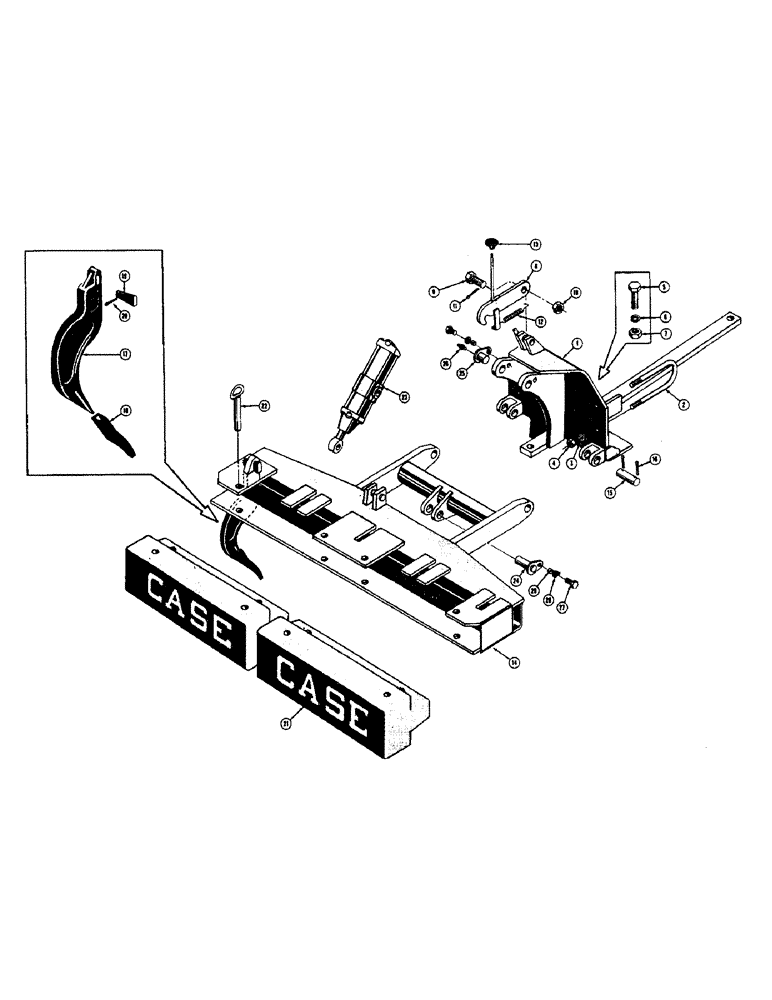

Запчасти Case 310D (114) - SCARIFIER (05) - UPPERSTRUCTURE CHASSIS

1

37399

PUMP, FUEL INJECTION

PLATE - mounting

1шт.

2

31696

BOLT

"U" BOLT - mounting plate to final drive spacer tubes

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

4шт.

5

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

25-1110

NUT,5/8"-18, G5

- hex. (5/8 - 18 NF)

2шт.

8

D25947

LOCK - transport safety

1шт.

9

D25951

BOLT

- special (1-1/4" - 12 NF x 3-1/4")

1шт.

10

25-1220

SLOTTED NUT,1 1/4"-12, G5

NUT - hex. slotted (1-1/4" - 12 NF)

1шт.

12

11469

SPRING

- transport safety lock

1шт.

13

CAS31375

KNOB

- transport safety lock

1шт.

14

D24650

X

FRAME - scarifier

1шт.

15

31715

PIN

- mounting, frame to mounting plate

2шт.

16

132-152

PIN

- cotter, 1/4" x 1-3/4"

4шт.

17

D23748

TOOTH

- scarifier

5шт.

18

D25598

TOOTH

POINT - scarifier tooth

5шт.

19

D23833

X

WEDGE - retainer, scarifier tooth

5шт.

20

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

5шт.

21

19041

WEIGHT - scarifier (Use D28845)

2шт.

D28845

WEIGHT - scarifier

2шт.

22

CAS19055

PIN ASSY.

PIN - scarifier weight

4шт.

23

D27696

CYLINDER - hydraulic, scarifier (See Figure 118 breakdown)

1шт.

24

D21331

PIN - mounting, Serial Range: cylinder-frame

1шт.

25

35031

PIN

- trunnion, cylinder to mounting plate

2шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

27

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1

3шт.

28

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

3шт.

29

D23740

BUSHING

- lockhead pin bolt

3шт.

11

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
