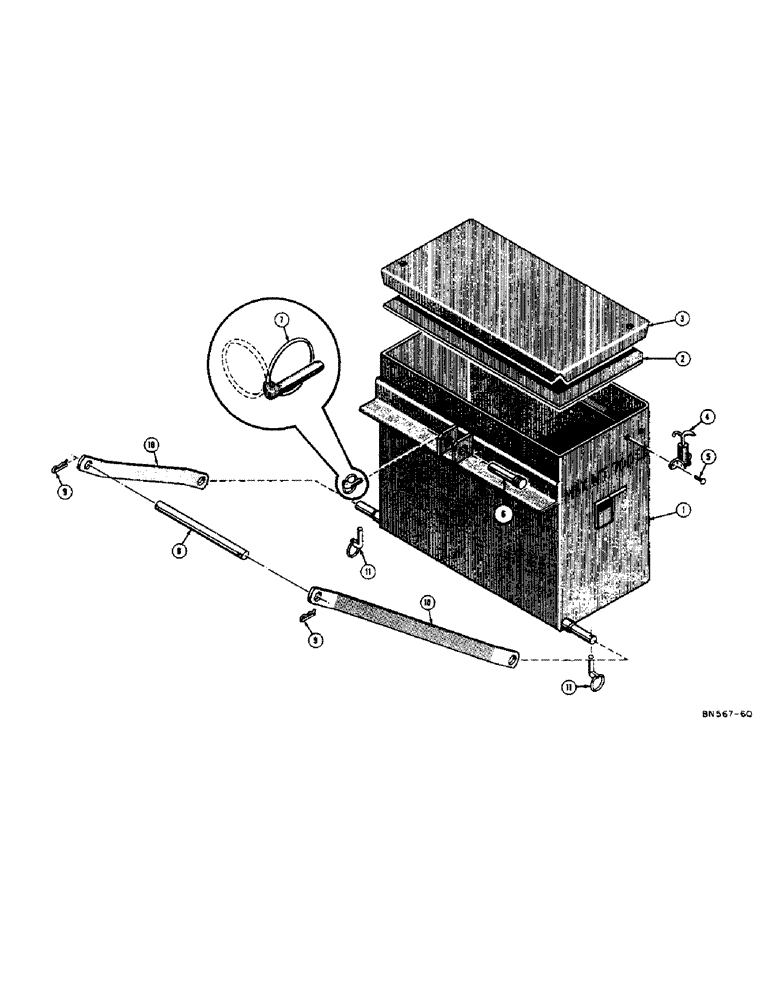

Запчасти Case 310D (110[1]) - REAR WEIGHT BOX (WITH THREE POINT HITCH) (05) - UPPERSTRUCTURE CHASSIS

1

DR10591

BOX - weight (700 lb. capacity)

1шт.

2

DR10587

SHELF - tool box

1шт.

3

DR10589

LID - weight box

1шт.

4

03771AB

CATCH - lid

2шт.

5

45-35

RIVET - button head (3/16 x 5/16)

4шт.

6

V14209

X

PIN - three point hitch, mast

1шт.

7

SV2433

X

PIN AND RING - retaining

1шт.

8

D21654

SHAFT - turnbuckle pivot

1шт.

9

VC1419

X

COTTER - hair pin

2шт.

10

D21653

STRAP - support

2шт.

11

SV2433

X

PIN AND RING - retaining

1шт.
