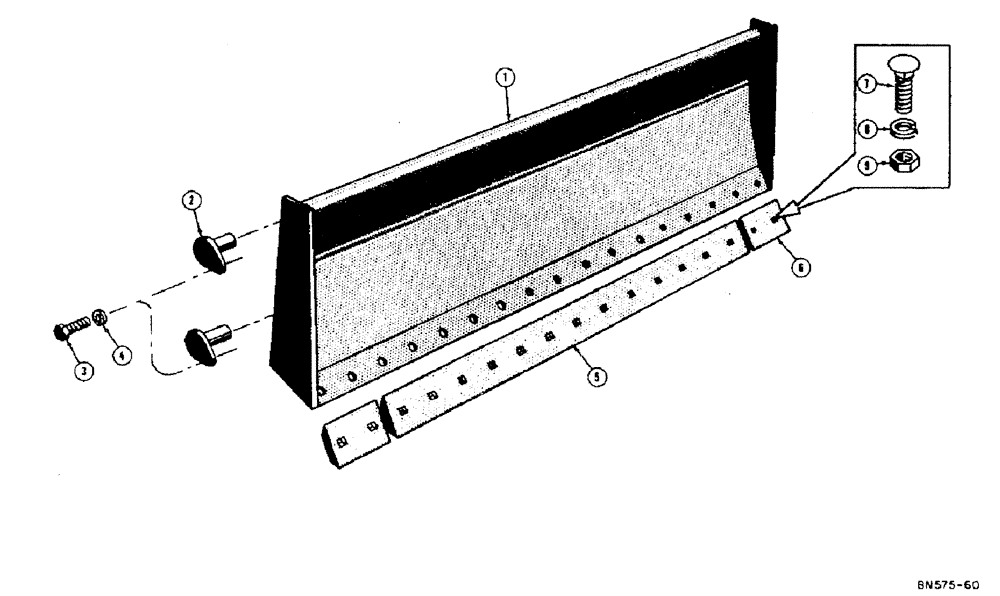

Запчасти Case 310D (108) - BULLDOZER BLADE (MOUNTS ON LOADER ARMS) (05) - UPPERSTRUCTURE CHASSIS

D10356M

BLADE - bulldozer (Machinery item)

1шт.

1

NSS

NOT SOLD SEPARAT

MOLDBOARD - bulldozer

1шт.

2

31109

PIN ASSY.

PIN - mounting, Serial Range: moldboard-main

4шт.

arm (Also moldboard to dump arm)

1шт.

3

14-846

HHCS - 1/2 - 20 NF X 1

4шт.

4

193-32

LOCK WASHER,Int Tooth, 1/2"

4шт.

internal tooth (1/2)

1шт.

D23740

BUSHING

BUSHING - lockhead pin (Not

4шт.

shown)

1шт.

5

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

6

38150

EDGE

BLADE - cutting end

2шт.

7

19-828

BOLT,1/2"-13 x 1 3/4", G5

BOLT - plow, # 3 head (1/2 - 13 NC

18шт.

x 1-3/4)ø

1шт.

8

92-8

LOCK WASHER,1/2"

18шт.

9

25-108

NUT,1/2"-13, G5

Hex

18шт.
