Запчасти Case 310D (038) - COWL, DASH, FUEL LINES, AND THROTTLE CONTROL (05) - UPPERSTRUCTURE CHASSIS

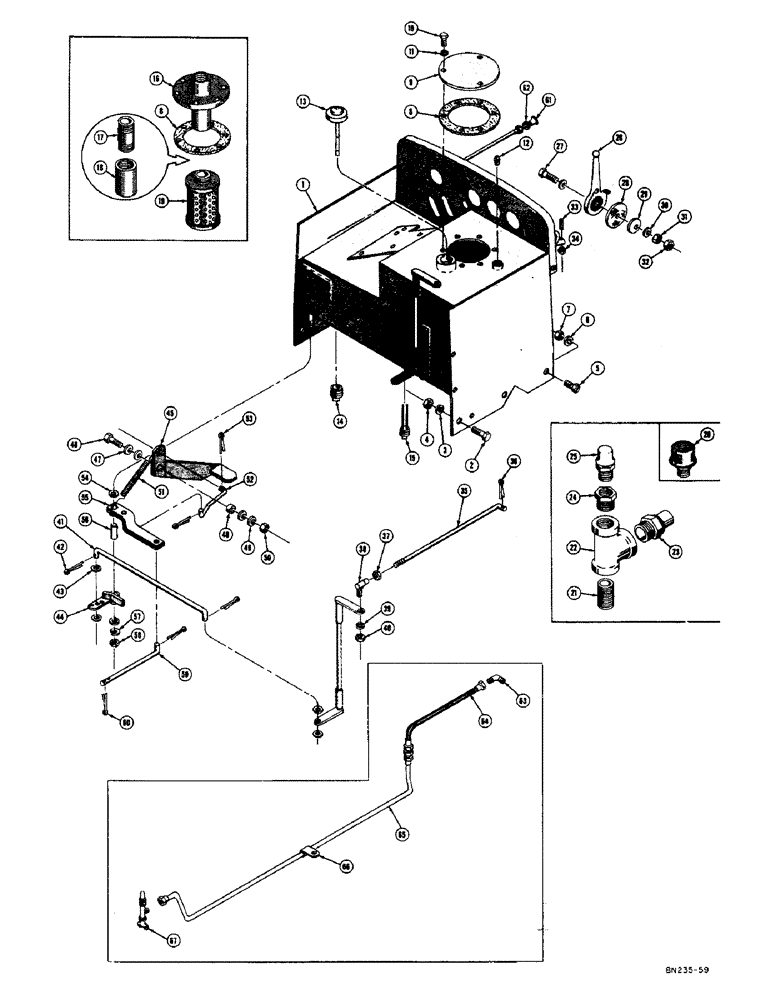

Схема запчастей Case 310D - (038) - COWL, DASH, FUEL LINES, AND THROTTLE CONTROL (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

D25270

COWL AND DASH

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

2шт.

5

77-812

THMS - 1/2 - 13 NC x 3/4

2шт.

6

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

7

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC)

2шт.

8

36321

GASKET

- filter hole cover

1шт.

9

37758

HOSE

COVER - filter hole

1шт.

10

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4 NPT sq. hd.

1шт.

13

35072

CAP - filler (Dipstick, Serial Range: welded-cap)

1шт.

14

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - pipe, 1-1/4 NPT sq. hd.

1шт.

15

D21397

PLUG - magnetic, 3/4 NPT sq. hd.

1шт.

16

38266

ARM

CAP - oil filter inlet (See D26685)

1шт.

D26685

CAP - oil filter inlet (See 38266, 221-264, and 221-332)

1шт.

17

221-264

PIPE,Nipple, 1 1/4" NPT x 3"

NIPPLE - pipe (1-1/4 NPT x 3") (Used with 38266 cap)

1шт.

18

221-332

COUPLING - pipe (1-1/4 NPT) (Used with 38266 cap)

1шт.

19

D25664

FILTER CARTRIDGE

FILTER - hydraulic oil

1шт.

20

31543

BREATHER

FILTER - breather (See D11183)

1шт.

D11183

KIT - reservoir pressure control (See 31543)

1шт.

21

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - close pipe (1/4 NPT x 1")

1шт.

22

221-431

TEE

- pipe (1/4 NPT x 1/4 NPT x 1/8 NPT)

1шт.

23

R15538

VALVE

- relief, vaccuum (2 to 5 P.S.I.)

1шт.

24

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - hex. pipe (1/4 NPT x 1/8 NPT)

1шт.

25

R15536

VALVE

- relief, pressure (10 to 20 P.S.I.)

1шт.

26

A8982

LEVER - throttle control

1шт.

27

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

1шт.

28

06320AB

DISC - friction, throttle control lever

1шт.

29

D25757

WASHER

- Belleville spring (5/16" I.D. x 1-3/8" O.D. x 1/16" thick)

1шт.

30

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16)

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

1шт.

32

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex. jam (5/16 - 18 NC)

1шт.

33

176-43

SCREW - set, headless slotted (1/4 - 20 NC x 1-1/4)

1шт.

34

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex. jam (1/4 - 20 NC)

1шт.

35

D25714

ROD - throttle, control lever to ball joint

1шт.

36

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

37

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex. jam (5/16 - 24 NF)

1шт.

38

D25758

BALL

JOINT - adjustable, throttle rod to pivot shaft on cowl and dash

1шт.

39

92-5

LOCK WASHER,5/16"

1шт.

40

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

41

D25715

ROD - throttle, pivot shaft on cowl and dash to throttle lever

1шт.

42

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

43

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16)

4шт.

44

D25713

LEVER - throttle

1шт.

45

37936

PEDAL - accelerator

1шт.

46

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8 - 16 NC x 1-1/2

1шт.

47

95-6

WASHER,3/8"

- plain (3/8)

3шт.

48

D25544

SPACER - accelerator pedal

1шт.

49

92-6

LOCK WASHER,3/8"

1шт.

50

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

51

101EB

SPRING - accelerator return

1шт.

52

37937

LINK - accelerator

1шт.

53

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

54

95-6

WASHER,3/8"

- plain (3/8)

2шт.

55

D25443

LEVER - pivot throttle

1шт.

56

D25543

SPACER

1шт.

57

92-6

LOCK WASHER,3/8"

1шт.

58

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

1шт.

59

38290

PIN

LINK - throttle

1шт.

60

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

61

10856

CONTROL - carburetor choke, complete

1шт.

10858

LOOM - protective (Not shown)

1шт.

62

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16)

1шт.

63

222-1024

ELBOW,90 Degree, 1/2"-20 Inv Fl x 1/8" NPT

- 90 degree male (1/8 NPT x 5/16 JIC)

1шт.

64

D25471

HOSE ASSY.

HOSE - fuel pump to tube (1/4" I.D. x 1/2" O.D. x 12-1/2")

1шт.

65

D25469

TUBE - fuel line

1шт.

66

49832

CLAMP

- tube

1шт.

67

01972AB1

VALVE - fuel shut off

1шт.

Выбрано товаров: 70
