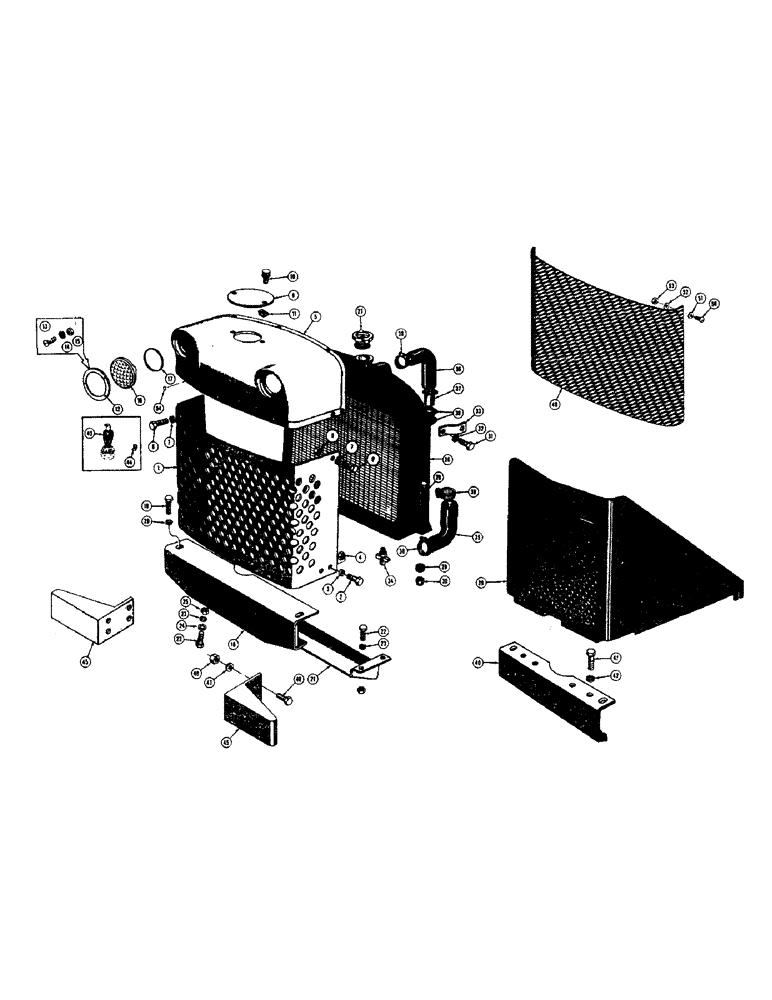

Запчасти Case 310D (034) - RADIATOR, THERMOSTAT, GRILLE CAP, AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D21970

GRILLE - radiator

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

4шт.

5

D21966

CAP - grille

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

7

92-6

LOCK WASHER,3/8"

5шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

2шт.

9

D21310

COVER - access, radiator cap

1шт.

10

G16716

X

SCREW - knurled head

2шт.

11

131-102

SPRING NUT,Ret, 1/4"-20

Tinnerman Ret, 1/4"-20

2шт.

12

A11275

RING

- headlight retaining

2шт.

13

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

- machine, pan head (zinc plated)

6шт.

14

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

6шт.

15

129-15

NUT,#6-32

6шт.

16

A11280

LAMP

LIGHT - head (12 volt)

2шт.

17

A11276

GASKET

- headlight

2шт.

18

D25897

BUMPER - front

1шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

20

92-8

LOCK WASHER,1/2"

4шт.

21

36979

SPACER

SUPPORT - bumper

1шт.

22

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

8шт.

23

92-8

LOCK WASHER,1/2"

8шт.

24

95-8

WASHER,1/2"

- standard wrot 1/2"

4шт.

25

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

8шт.

26

D21839

RADIATOR

1шт.

D23733

X

GASKET - radiator filler hole (Not shown) (Used with 4 P.S.I. cap) (Use D25826)

1шт.

27

D25826

CAP

- pressure, radiator (7 P.S.I.)

1шт.

28

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

2шт.

29

D23003

SHOCK ABSORBER

WASHER - shock absorbing

2шт.

30

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

2шт.

31

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

D23002

BRACKET - support

2шт.

34

217-92

COCK

DRAIN COCK - radiator

1шт.

35

D21960

HOSE,1.75" ID x 4.56", SAE 20R4

RADIATOR HOSE, , Outlet 1.75" ID x 4.56", SAE 20R4

1шт.

36

D21961

HOSE,1.75" ID x 5.13", SAE 20R4

RADIATOR HOSE, , Inlet (Use D21960) 1.75" ID x 5.13", SAE 20R4

1шт.

37

G10235

THERMOSTAT

1шт.

38

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- radiator hose #36, 1.81/2.75 Type F Worm

5шт.

39

D23236

GUARD - brush (Not applicable on models) (Optional equipment)

1шт.

40

D23232

BUMPER - front (Used with brush guard only) (Optional equipment)

1шт.

41

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4

4шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

A11492

X

MEDALLION - Case emblem

1шт.

44

A11319

X

CLIP - retainer, medallion

2шт.

45

D23396

EXTENSION - bumper (Optional equipment)

2шт.

46

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2

8шт.

47

92-8

LOCK WASHER,1/2"

8шт.

48

25-118

NUT,1/2"-20, G5

- hex. (1/2 - 20 NF)

8шт.

D23230

PLATE - mounting, brush guard (Used with front weights only) Not shown (Optional equipment)

1шт.

49

D11170M

SCREEN - grille (Optional equipment)

1шт.

50

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/4 - 20 NC x 1/2

8шт.

51

95-4

WASHER,1/4"

- standard wrot () 1/4"

8шт.

52

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

53

25-104

NUT,1/4"-20, G5

8шт.

54

205-4

X

BUTTON - plug, 7/32" dia.

2шт.
